MIC-770 V2 User Manual 18
2.4 Installation
2.4.1 HDD Installation

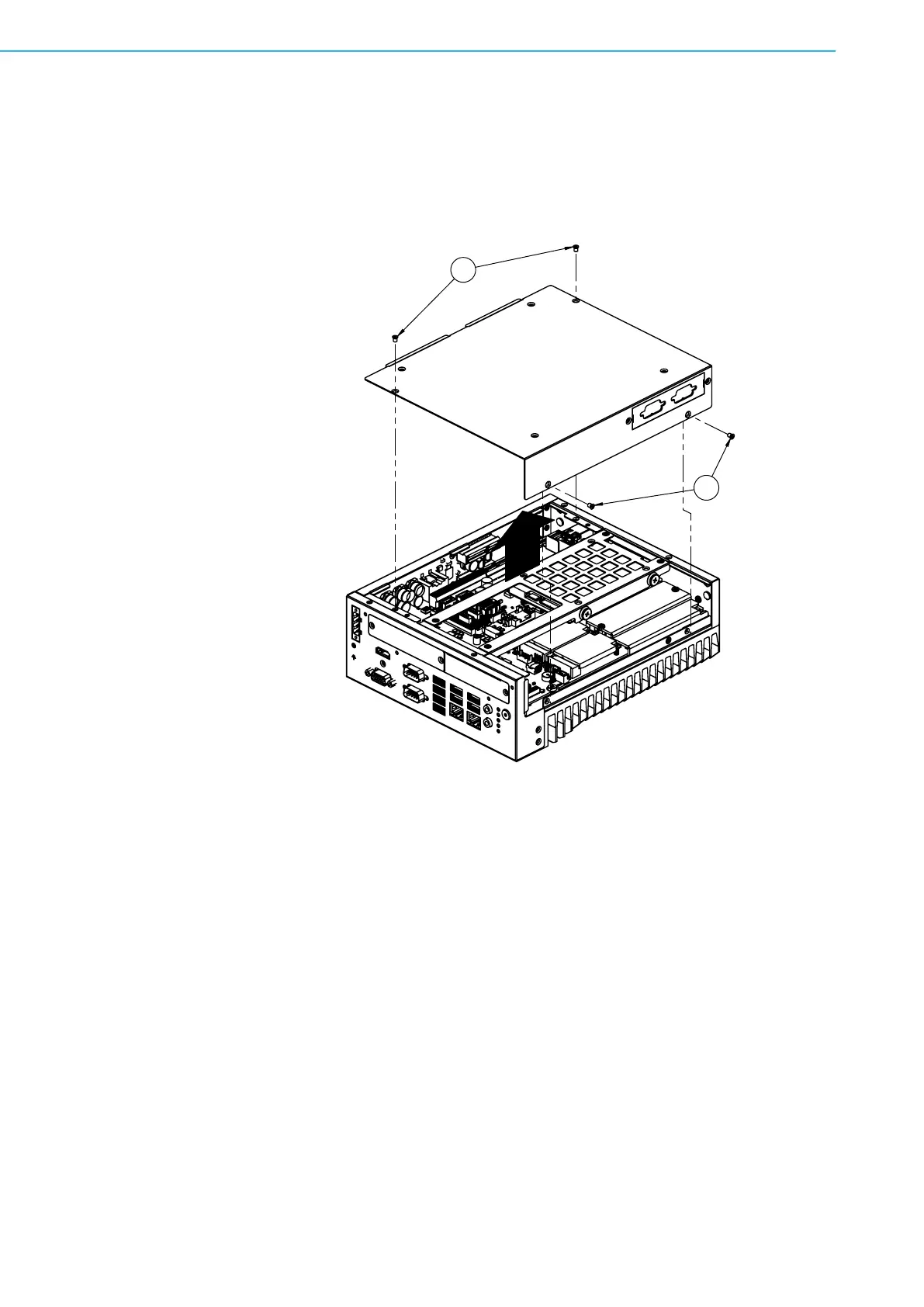

1. Undo 4 screws and remove the bottom cover.
2. Undo 4 screws to remove the HDD tray.
1
1
