17 MIC-770 V2 User Manual

Chapter 2 H/W Installation

2.3.1.8 Power ON/OFF Button

MIC-770 V2 comes with a Power On/Off button with LED indicators on the front side

to show its On status (Green LED) and Off/Suspend status (RED LED), that supports

dual function of Soft Power-On/Off (instant off or delay 4 seconds), and suspend.

Power button LED status:

System On: LED On

System Suspend: Fast flashes

System Off: Off

System Off in deep sleep: Off

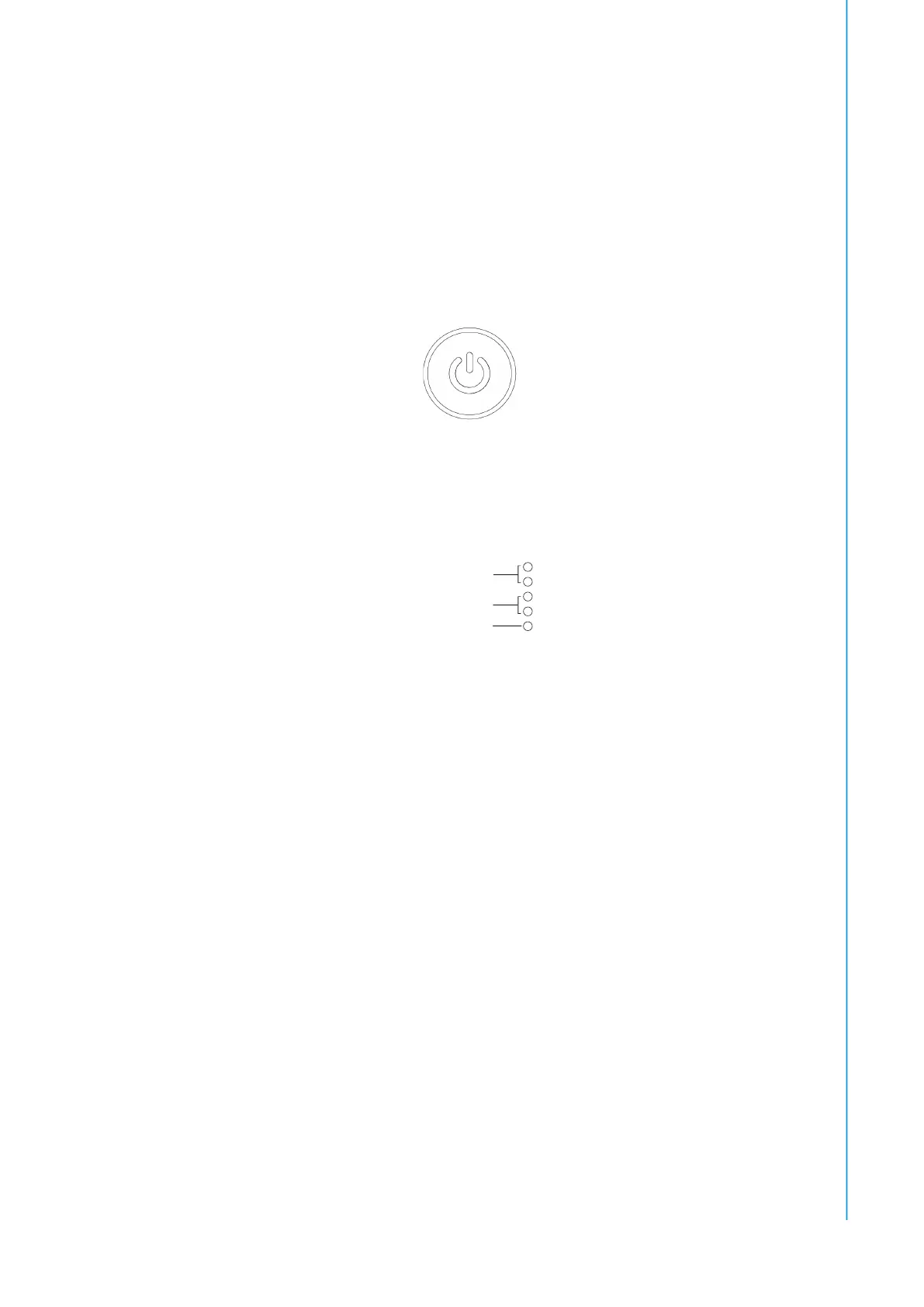

Figure 2.8 Power Button

2.3.1.9 LED Indicators

MIC-770 V2 provides COM1 & COM2 TX/RX LED for date transmission status moni-

toring.

Figure 2.9 LED Indicators

COM2 : TX/RX

COM1 : TX/RX

HDD status
