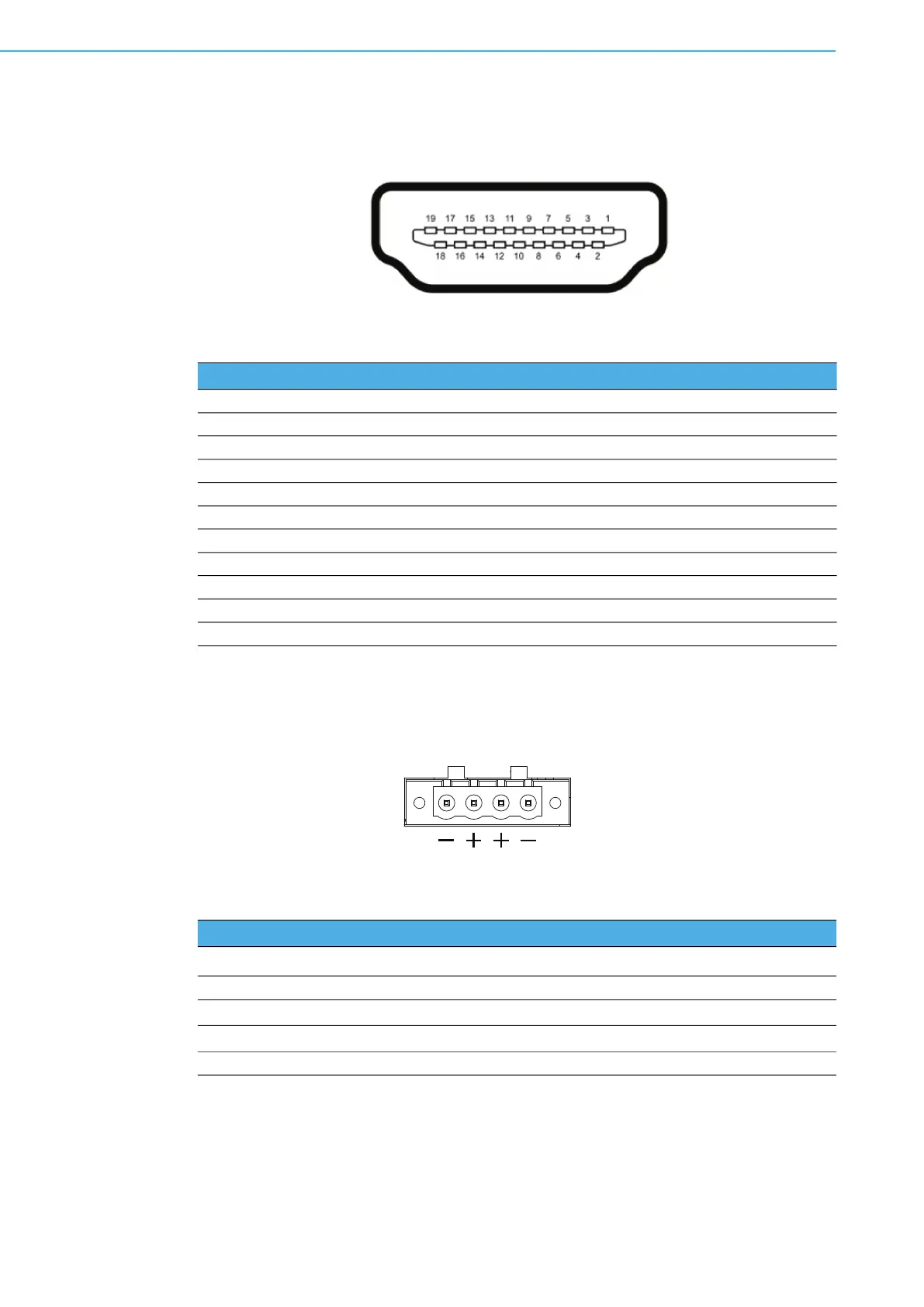

2.3.1.6 HDMI Connector
An integrated, 19-pin receptacle connector HDMI Type A Interface is provided. The
HDMI link supports resolutions up to 2560 x 1600 @ 60Hz; 3840 x 2160 @ 30Hz.
Figure 2.6 HDMI Receptacle Connector
2.3.1.7 Power Input Connector
MIC-770 V2 comes with a four-pin header as default that carries 9V
DC
- 36V
DC
exter-
nal power input.
Figure 2.7 4-pin Header
Table 2.7: HDMI Connector Pin Assignments
Pin Signal Name Pin Signal Name
1 TMDS Data 2+ 2 TMDS Data 2 shield
3 TMDS Data 2- 4 TMDS Data 1+
5 TMDS Data 1 shield 6 TMDS Data 1-
7 TMDS Data 0+ 8 TMDS Data 0 shield
9 TMDS Data 0- 10 TMDS clock+
11 TMDS clock shield 12 TMDS clock-
13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC Ground 18 +5V
19 Hot Plug Detect
Table 2.8: Pin Assignments for Power Connector Pin Header
Pin Signal Name
1 GND
2
+9 V
DC
~ 36 V
DC
3
+9 V
DC
~ 36 V
DC
4 GND
