Chapter 3 BIOS Operation
 PEG Port Feature Configuration
– Detect Non-Compliance Device
Detect non-compliance PCI Express device in PEG. If enabled, it will take more
time at POST time.
3.2.3.5 PCH-IO Configuration

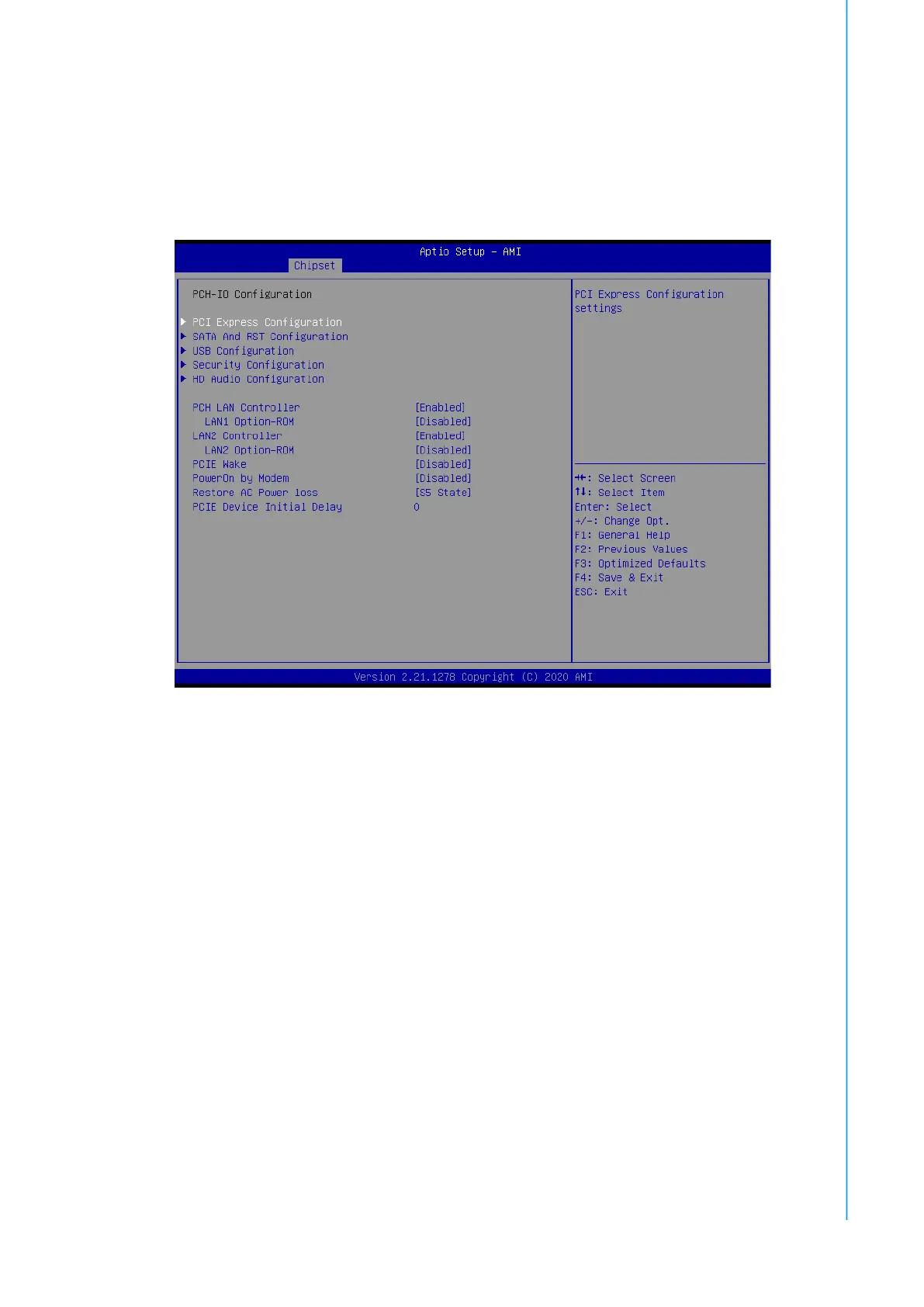

Figure 3.42 PCH-IO Configuration
 LAN1 Controller
"Enable or Disable" LAN1 controller.
 LAN1 Option-ROM
"Enable or Disable" LAN1 boot option for legacy network devices.
 LAN2 Controller
"Enable or Disable" LAN2 controller.
 LAN2 Option-ROM
"Enable or Disable" LAN2 boot option for legacy network devices.
 PCIE Wake
"Enable or Disable" PCIE to wake the system from S5. When this item is
selected as "Disabled", Wake on LAN2 function is also disabled.
 PowerOn by Modem
"Enable and Disable" PowerOn by Modem
 Restore AC Power Loss
Behavior when recovering from AC power loss: "S0" (power on), "S5" (power
off), or "Last State".
 PCIE Device Initial Delay
Users can set seconds to delay PCIE device initial time.
