PCI-1756 User Manual 18
3.1 Overview
Maintaining signal connections is one of the most important factors in ensuring that
your application system is sending and receiving data correctly. A good signal con-
nection can avoid unnecessary and costly damage to your PC and other hardware
devices. This chapter provides useful information about how to connect input and
output signals to the PCI-1756 cards via the I/O connector.
3.2 Switch and Jumper Settings
Please refer to Figure 3.1 for jumper and switch locations on PCI-1756.

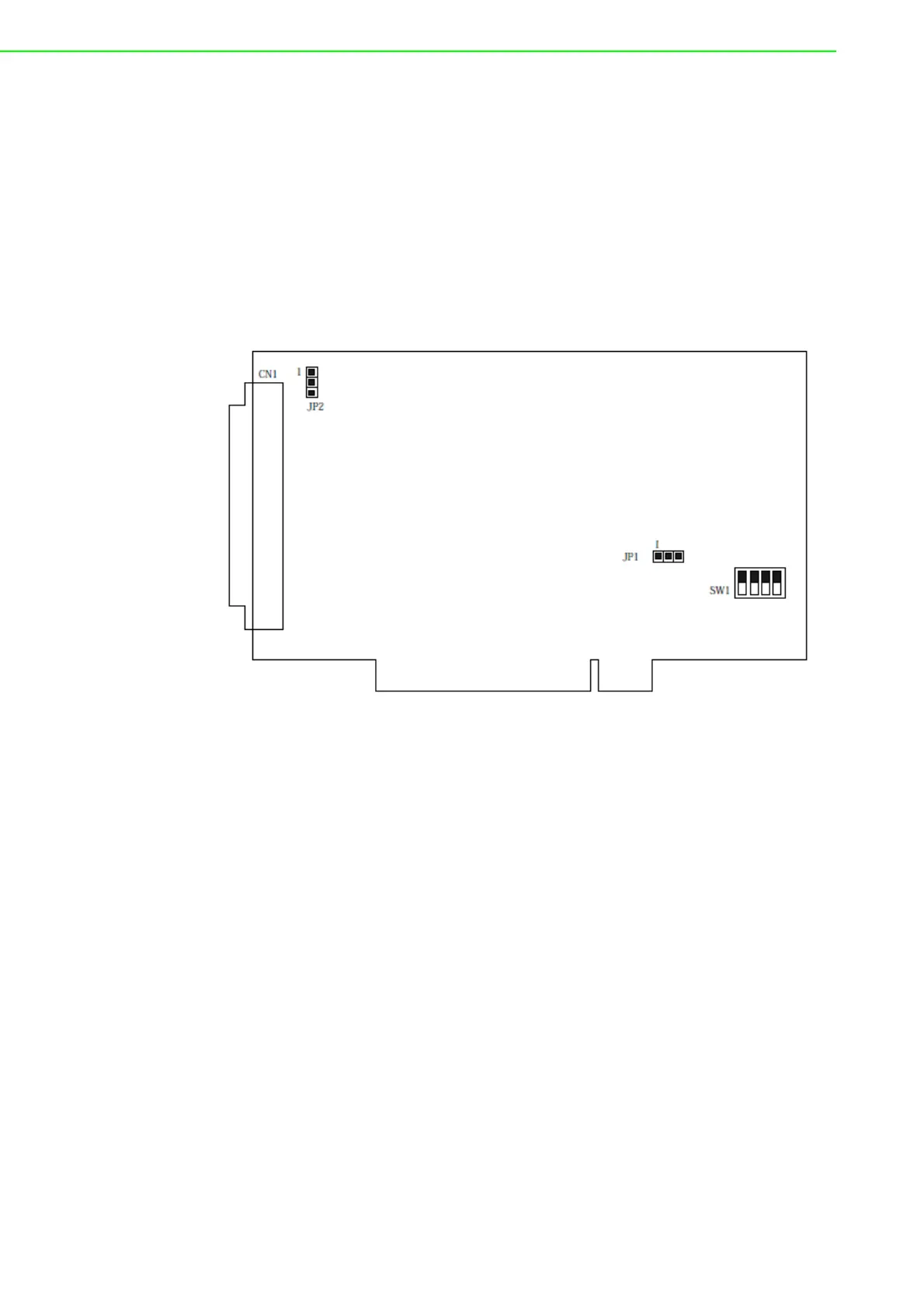

Figure 3.1 Connector and Switch Locations
