17 ROM-5620 User Manual
Chapter 3 Pin Definition and Quick Start Guide
3.2 Quick Start Guide
3.2.1 Debug Port Connection
1. Connect debug port cable (1701100300) to debug port (COM3) on ROM-
DB5901.
2. Connect it to your PC with RS-232 Cable (1700019474).
P136 M40_UART_TX S136 GND
P137 M40_UART_RX S137 MIPI_DSI0_DATA3_P
P138 - S138 MIPI_DSI0_DATA3_N
P139 - S139 MIPI_DSI0_I2C0_SCL
P140 SER3_UART0_TX S140 MIPI_DSI0_I2C0_SDA
P141 SER3_UART0_RX S141 MIPI_DSI0_PWM
P142 GND S142 -
P143 CAN0_TX S143 GND
P144 CAN0_RX S144 -
P145 CAN1_TX S145 WDT_TIME_OUT#
P146 CAN1_RX S146 PCIE_A_WAKE#
P147 VDD_IN S147 VDD_RTC
P148 VDD_IN S148 LID#
P149 VDD_IN S149 SLEEP#
P150 VDD_IN S150 VIN_PWR_BAD#
P151 VDD_IN S151 CHARGER#
P152 VDD_IN S152 CHARGER_PRSNT#
P153 VDD_IN S153 CARRIER_STBY#
P154 VDD_IN S154 CARRIER_PWR_ON
P155 VDD_IN S155 FORCE_RECOV#
P156 VDD_IN S156 BATLOW#
- - S157 TEST#
- - S158 GND

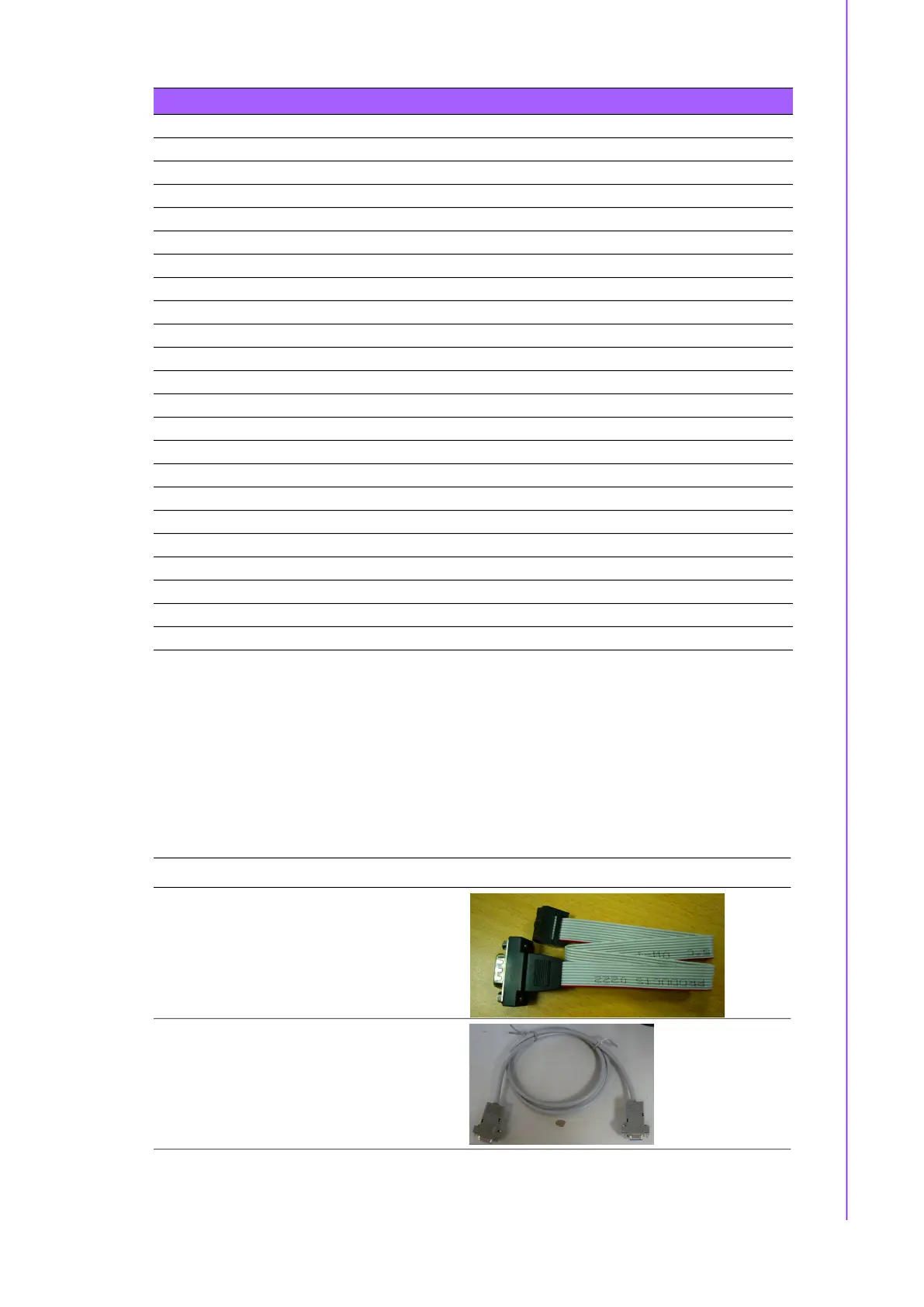

Table 3.1: MXM 3.0 Golden Finger
Item P/N Picture
Debug Port Cable 1701100300
RS-232 Cable 1700019474
