SIMB-982 User Manual 31

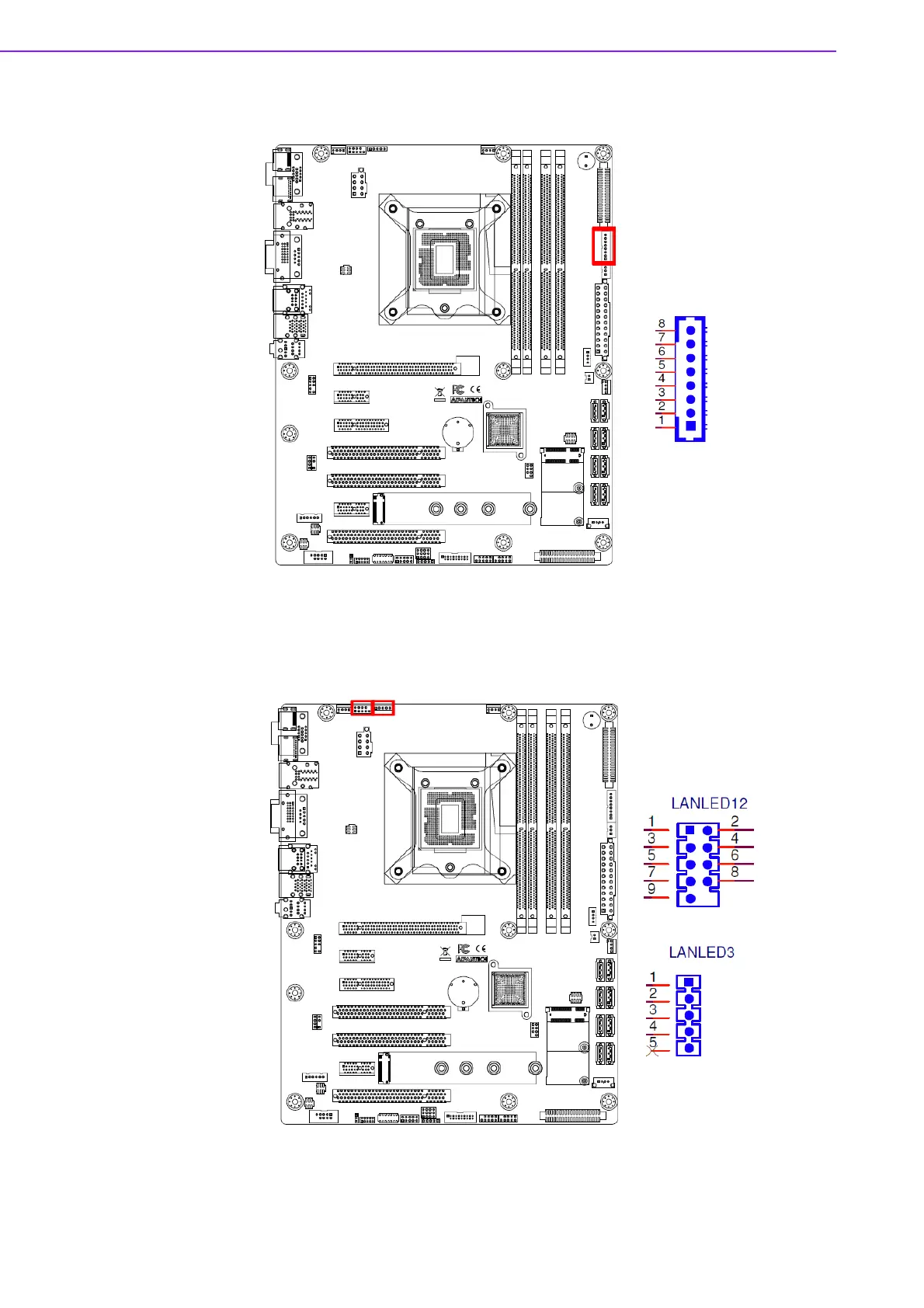

2.24 Voltage Display Box Header (VOLT1)
2.25 LAN LED Headers (LANLED12 / LANLED3)
VOLT1 connects to the alarm board on the chassis. These alarm boards give warn-
ings if a power supply or fan fails, or if the chassis overheats.
