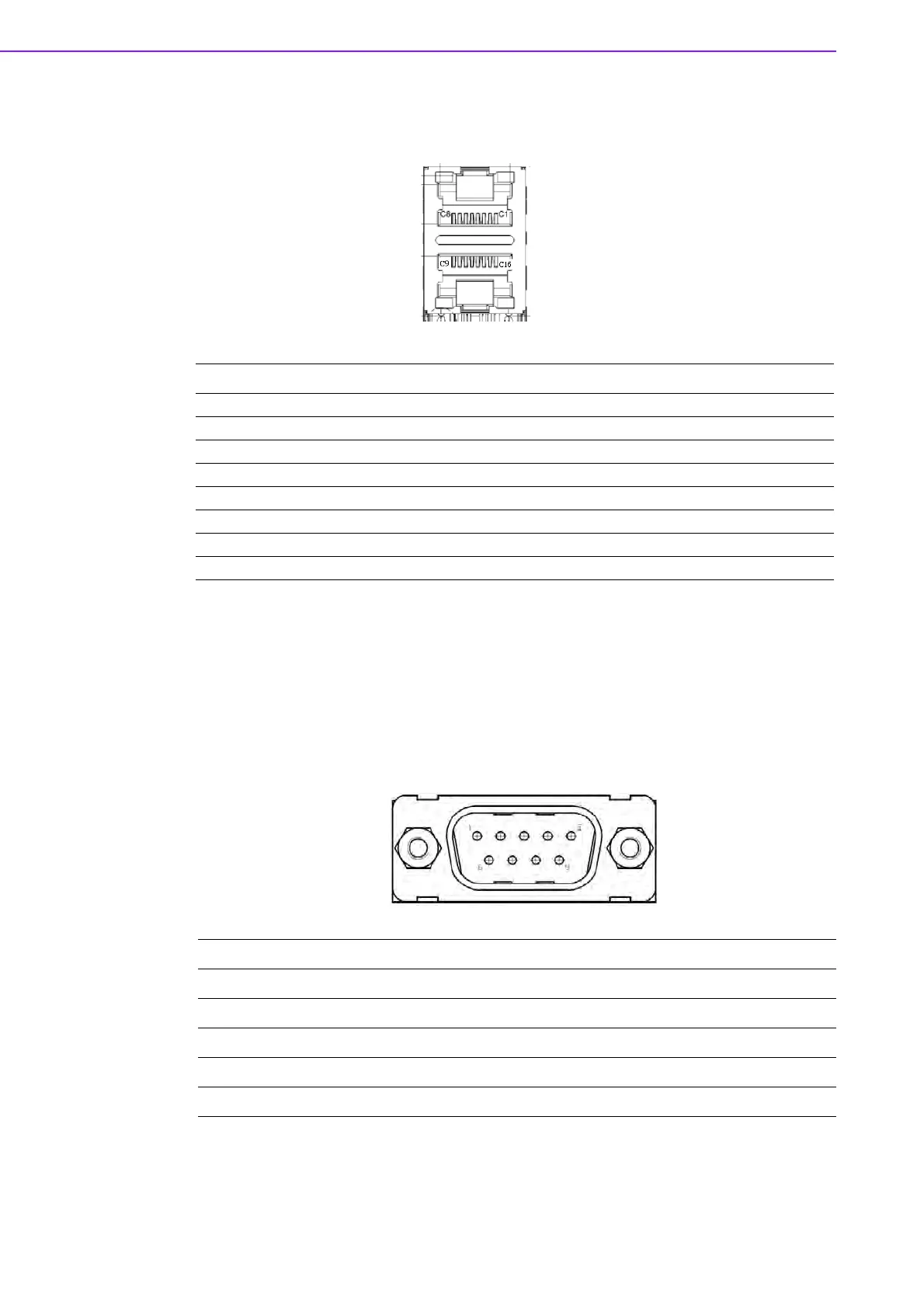

SIMB-982 User Manual 41
A.4 LAN Connector (LAN12)
A.5 COM2 Connector (COM2)
Pin Signal Pin Signal
1 DCD# 6 DSR#
2 RXD 7 RTS#
3TXD8CTS#
4DTR#9RI
5GND
Pin Signal Pin Signal
C1 L2_MDI_0+ C2 L2_MDI_0-
C3 L2_MDI_1+ C4 L2_MDI_1-
C5 L2_MDI_2+ C6 L2_MDI_2-
C7 L2_MDI_3+ C8 L2_MDI_3-
C9 L1_MDI_0+ C10 L1_MDI_0-
C11 L1_MDI_1+
C12
L1_MDI_1-
C13 L1_MDI_2+ C14 L1_MDI_2-
C15 L1_MDI_3+ C16 L1_MDI_3-
