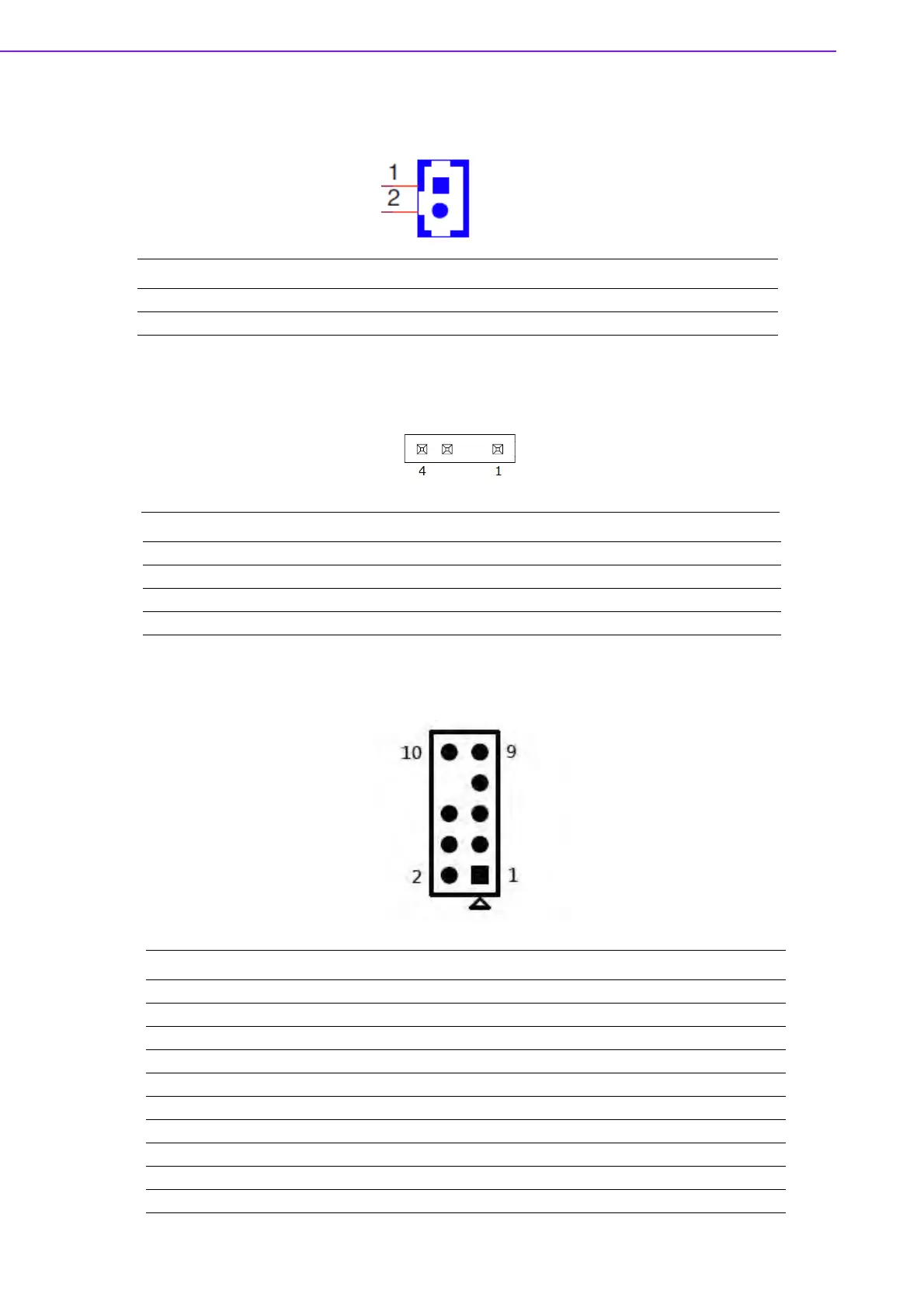

SIMB-982 User Manual 45
A.10 Case-Open Pin Header (JCASE1)
A.11 SPDIF Audio Pin Header (SPDIF_1)
A.12 Front Panel Audio Pin Header (FP_AUDIO1)
Pin Signal
1 MIC IN-L
2GND
3 MIC IN-R
4FPAUD_DETECT#
5LINE OUT-R
6 SENSE R1
7SENSE
8KEY
9LINE OUT-L
10 SENSE R2
Pin Signal
1 CASEOP
2GND
Pin Signal
1+5V
2 KEY
3 SPDIF OUT
4GND
