42 SIMB-982 User Manual
Appendix A I/O Pin Assignments

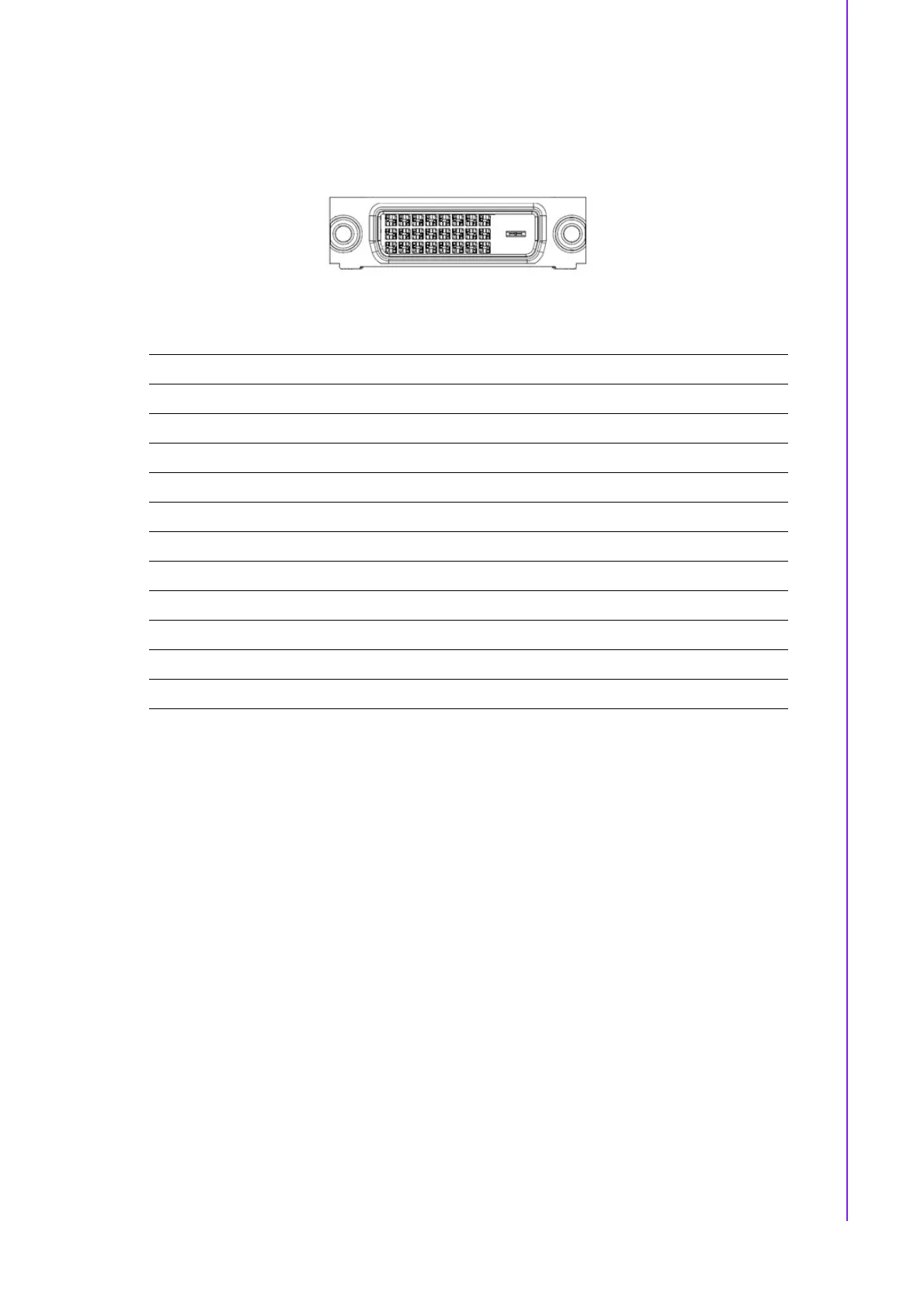

A.6 DVI-D Connector
(DVI-D1)
Pin Signal Pin Signal
1 TMDS D2- 13 GND
2 TMDS D2+ 14 VCC (+5V)
3GND15GND
4 GND 16 Hot plug detect
5 GND 17 TMDS D0-
6 DDC CLK 18 TMDS D0+
7 DDC DAT 19 GND
8NC20GND
9 TMDS D1- 21 GND
10 TMDS D1+ 22 GND
11 GND 23 TMDS CLK+
12 GND 24 TMDS CLK-
