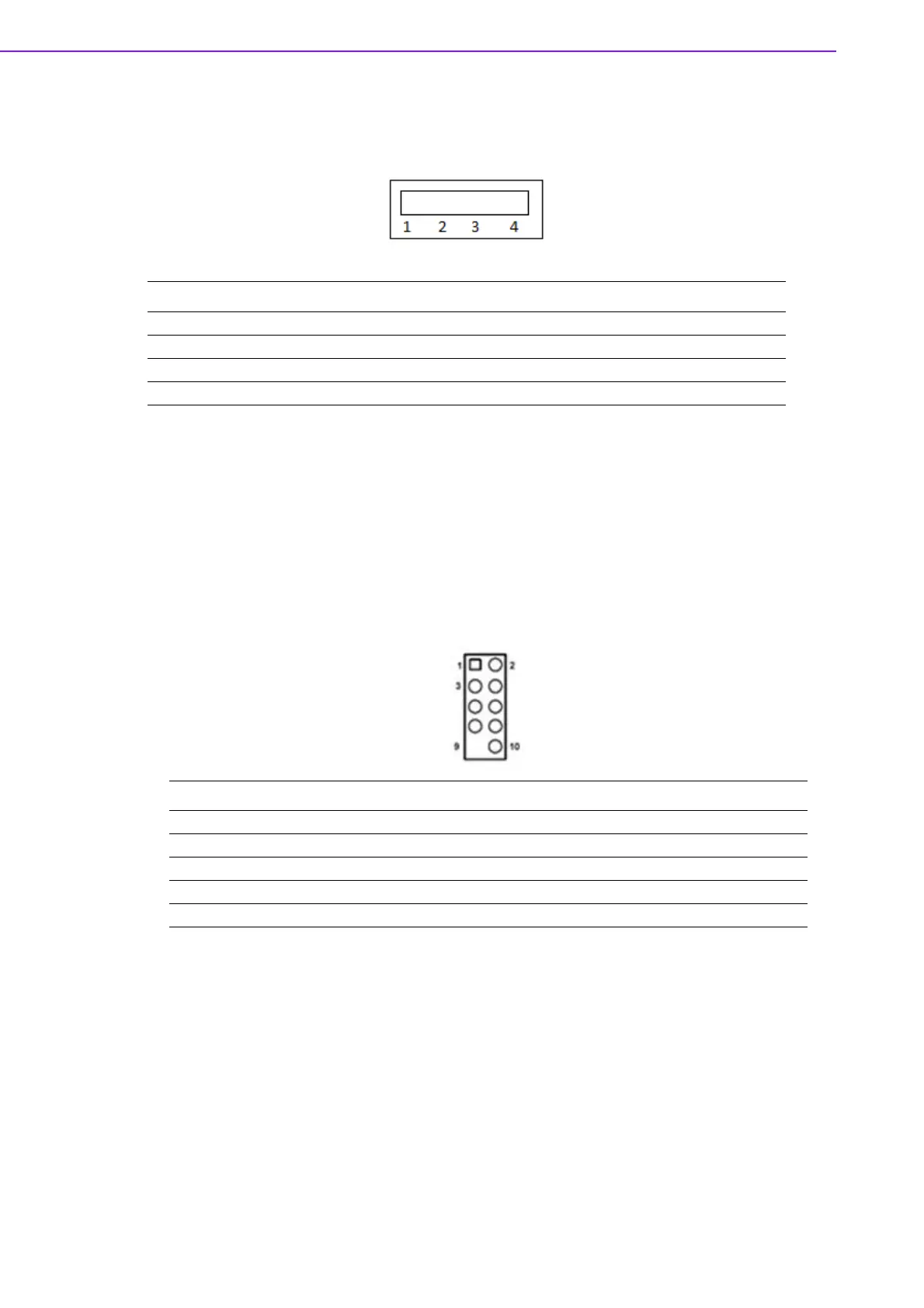

SIMB-982 User Manual 49
A.15 USB2.0 Type-A Connector (USB7)
A.16 Dual Port USB2.0 Pin Header
(USB1112 / USB1314 for Q170))
Pin Signal Pin Signal
1+5V 2+5V
3D0- 4D1-
5D0+ 6D1+
7GND 8GND
9 KEY 10
GND
Pin Signal
1+5V
2D-
3D+
4GND
