SIMB-982 User Manual 60

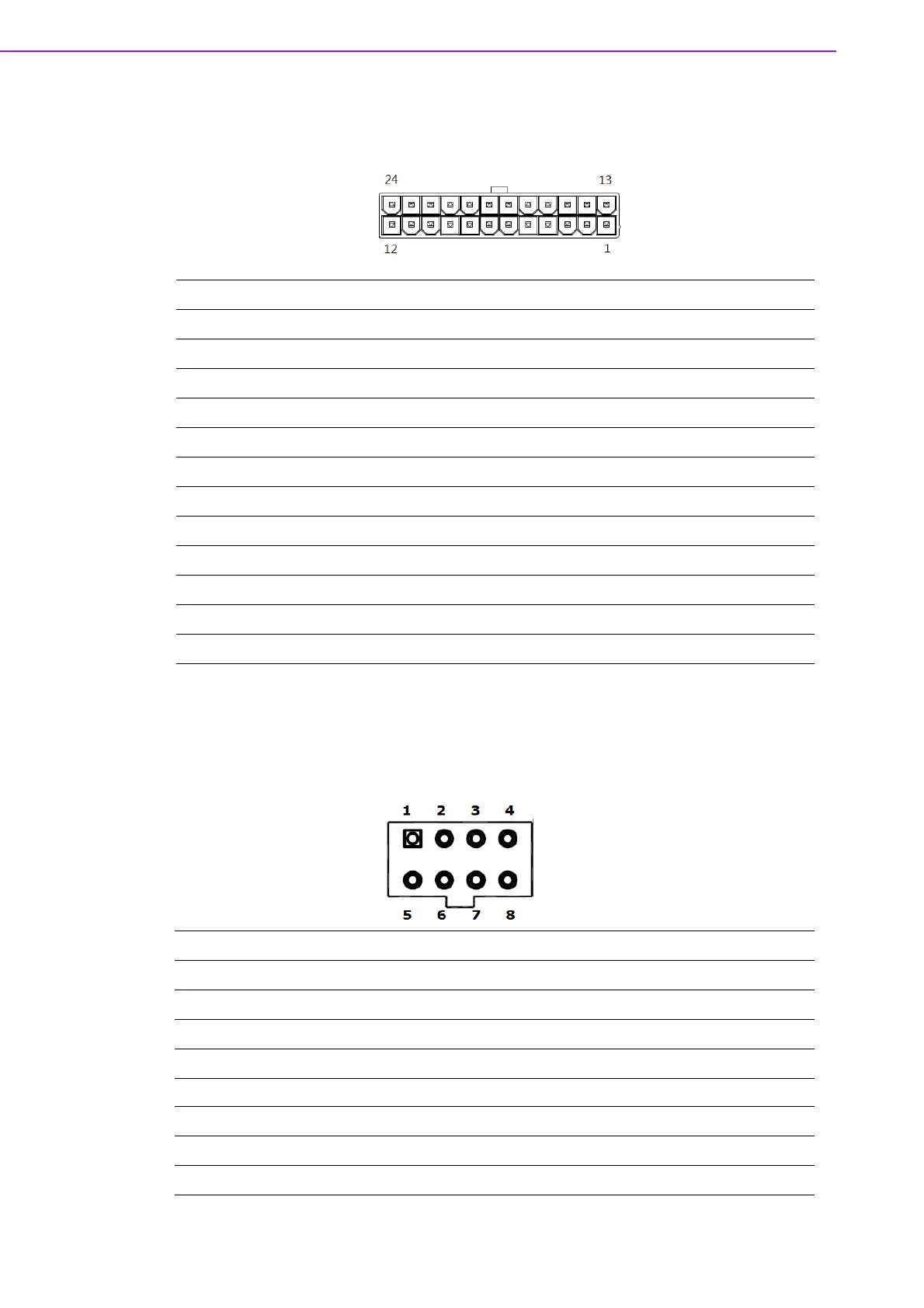

A.34 ATX 24pin Main Power for System Connector
(ATXPWR1)
A.35 ATX 8pin Main Power for CPU Connector
(ATXPWR_12V1)
Pin Signal Pin Signal
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3GND15GND
4+5V16PSON#
5GND17GND
6+5V18GND
7GND19GND
8PWROK20-5V
9+5VSB21+5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
Pin Signal
1GND
2GND
3
4
5
6
7
8
GND
GND
12V_IN
12V_IN
12V_IN
12V_IN
