Advantech TouchMix XI User Manual

TouchMix
®
XI Computer User Manual Date: 6/10/16 Doc#: 2005SA1800
Page 36



Voc/Uo=
(V)
Isc/Io =
(A)
Po=
(W)
Co=
(uF)
Lo=
(mH)
Pin1 Power 11.6 1.302 3.776 140 0.03
Pin2Data–(bidirectional) 10 0.673 1.683 20 0.25
Pin3Data+(bidirectional) 10 0.673 1.683 20 0.25
Pin4GND ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐

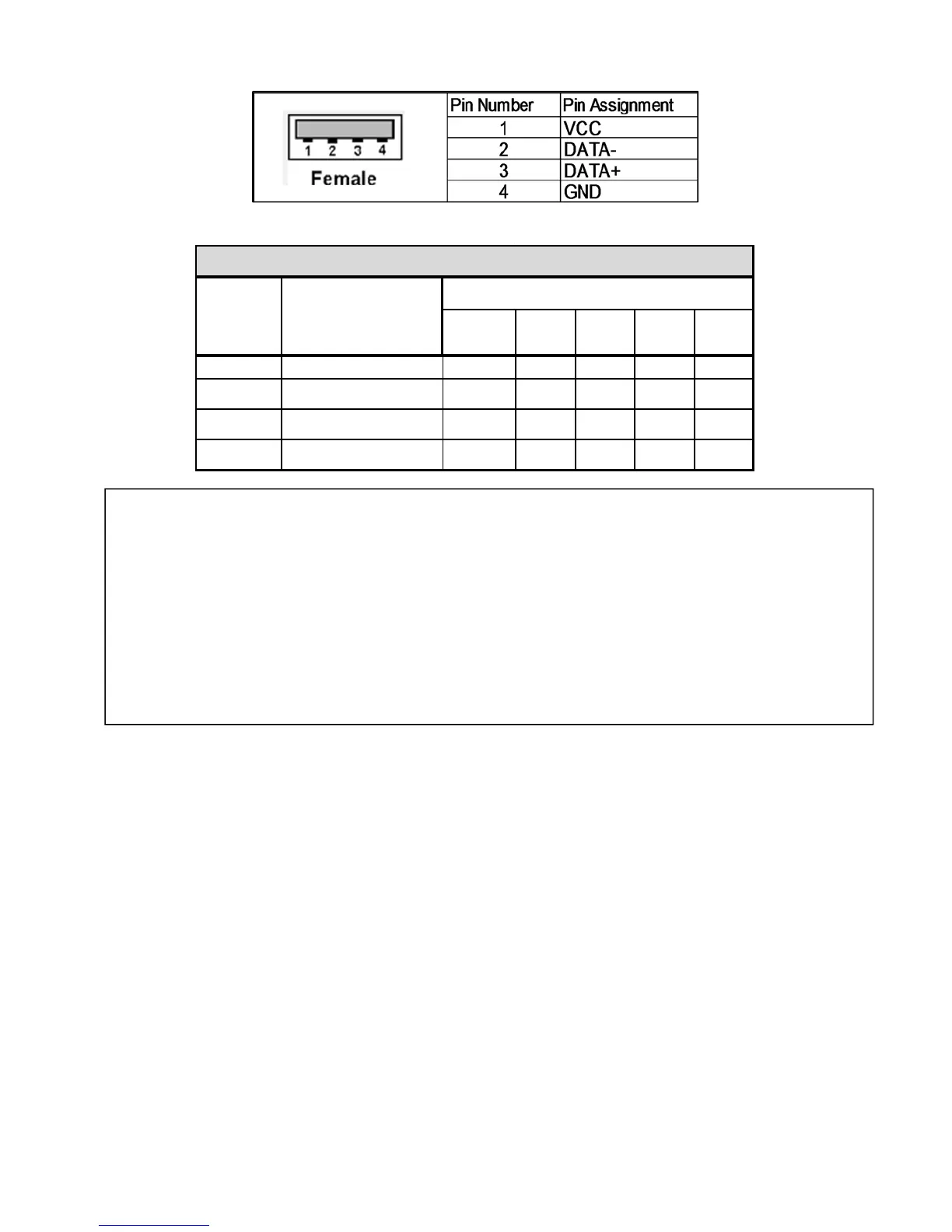

EntityParametersforUSB2.0(SideUSBport)
Pin
Number:
Sign alName(In/Out):
Note‐Cablecapacitanceandinductancemustbeincludedintheoverallconnectioncalculations.Worstcase
capacitanceandinductancesgenerallyacceptedare:
Capacitance‐197pF/m(60pF/ft.)andInductance‐0.66uH/m(0.20uH/ft.)
Vmax(orUi)>Voc(orUo)
Imax(orIi)>Isc(orIo)
Pi>Po
Ci+Ccable<Ca(or
Co)
Li+Lcable<La(orLo)

Advantech TouchMix XI Specifications

Power

input voltage	12VDC
current	3.7A

Ports & Interfaces

USB 2.0 ports	5
RS-232 serial port	1
LAN port	1GB
HDMI port	1

Weight and Dimensions

dimensions	390mm x 314mm x 60mm
weight	6 kg
