TPC-31/61 User Manual 8
2.1 System Setup
You can quickly get up and running by following the step-by-step instructions below.
1. Open the package. check the packing list at the beginning of this manual to
make sure every item is there.
2. Connect the power connector to the 18~32 V
DC
power lines. The power lines
can either be from some power adapter or an in-house power source.

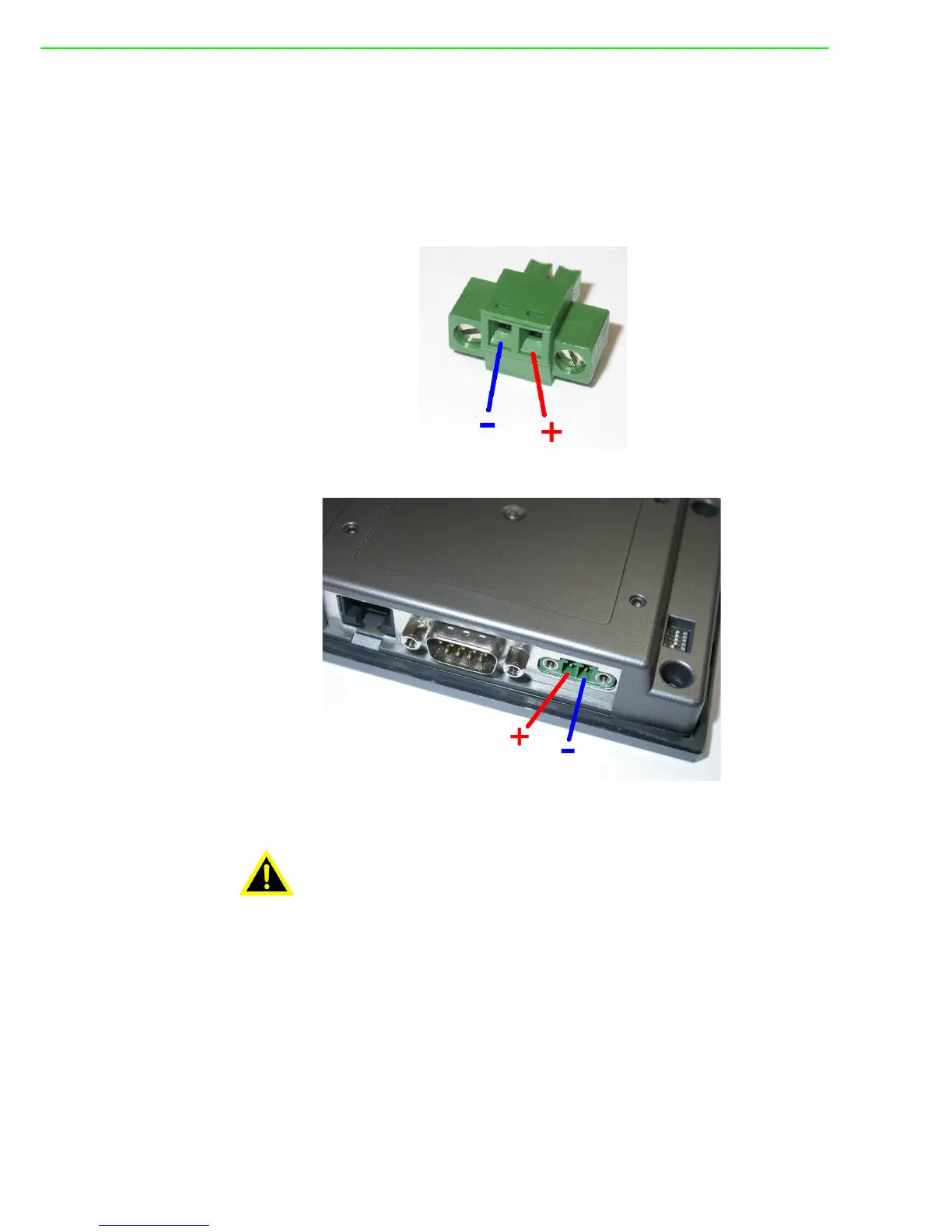

Figure 2.1 Power Connector and Power Lines
Figure 2.2 Pin Assignment on the Power Receptor
Warning! The system may be damaged when the power is turned on if the power
source is not connected to the correct pins.
