Chapter 2 Installation
2.3.5 DIN-Rail Mount Installation

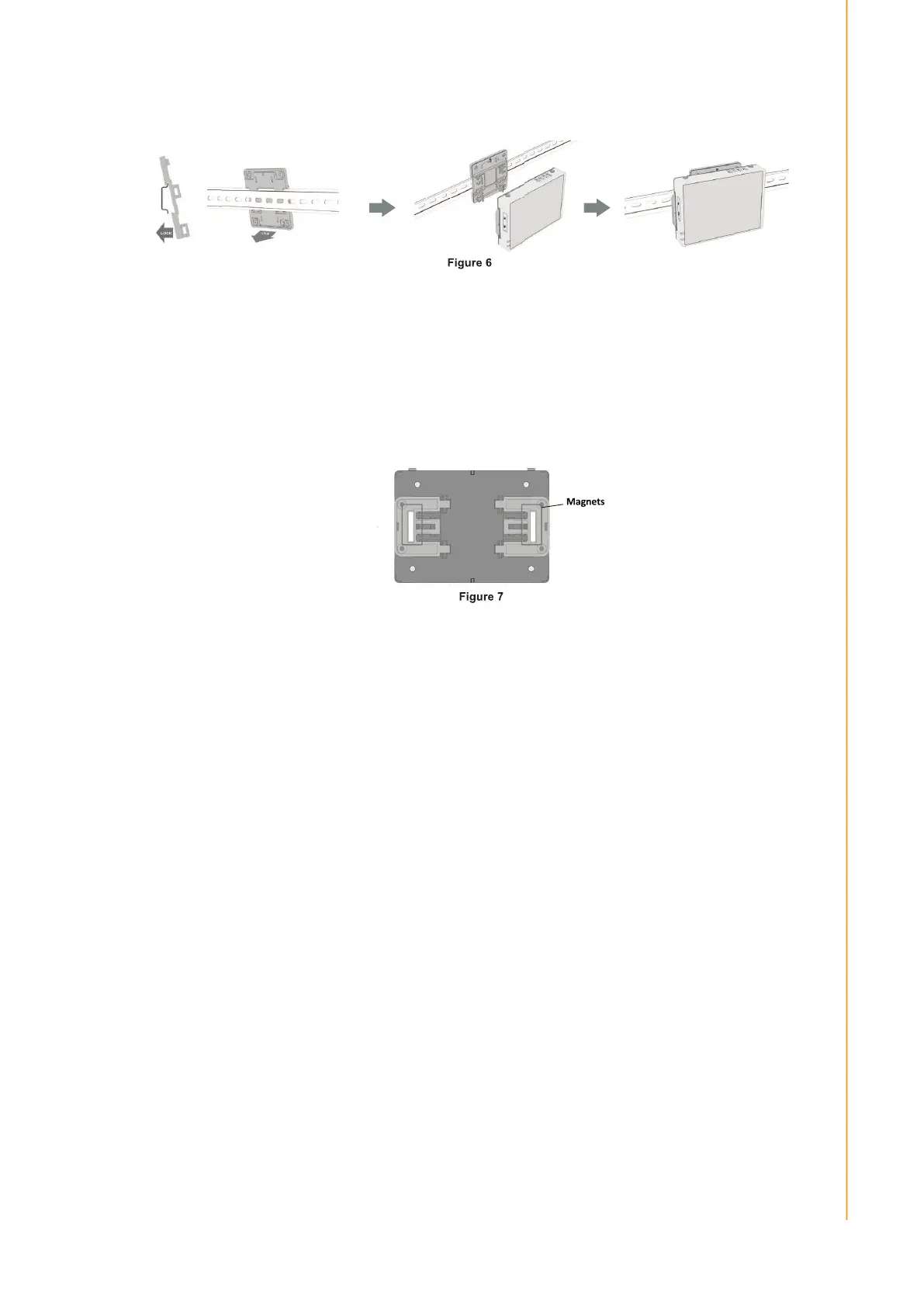

Step 1.Affix the mount bracket to the DIN rail (Figure 6).
Step 2.Attach the device to the mount bracket following the “Module Assembly” steps
outlined previously.
2.3.6 Magnet Mount Installation
Step 1.Place the device onto a flat metal surface.
Step 2.Use the two magnets on the side wings to affix the device to the metal surface
(Figure 7).
