AEG 4546 - Connecting to an RCA Cable

39
ENGLISH

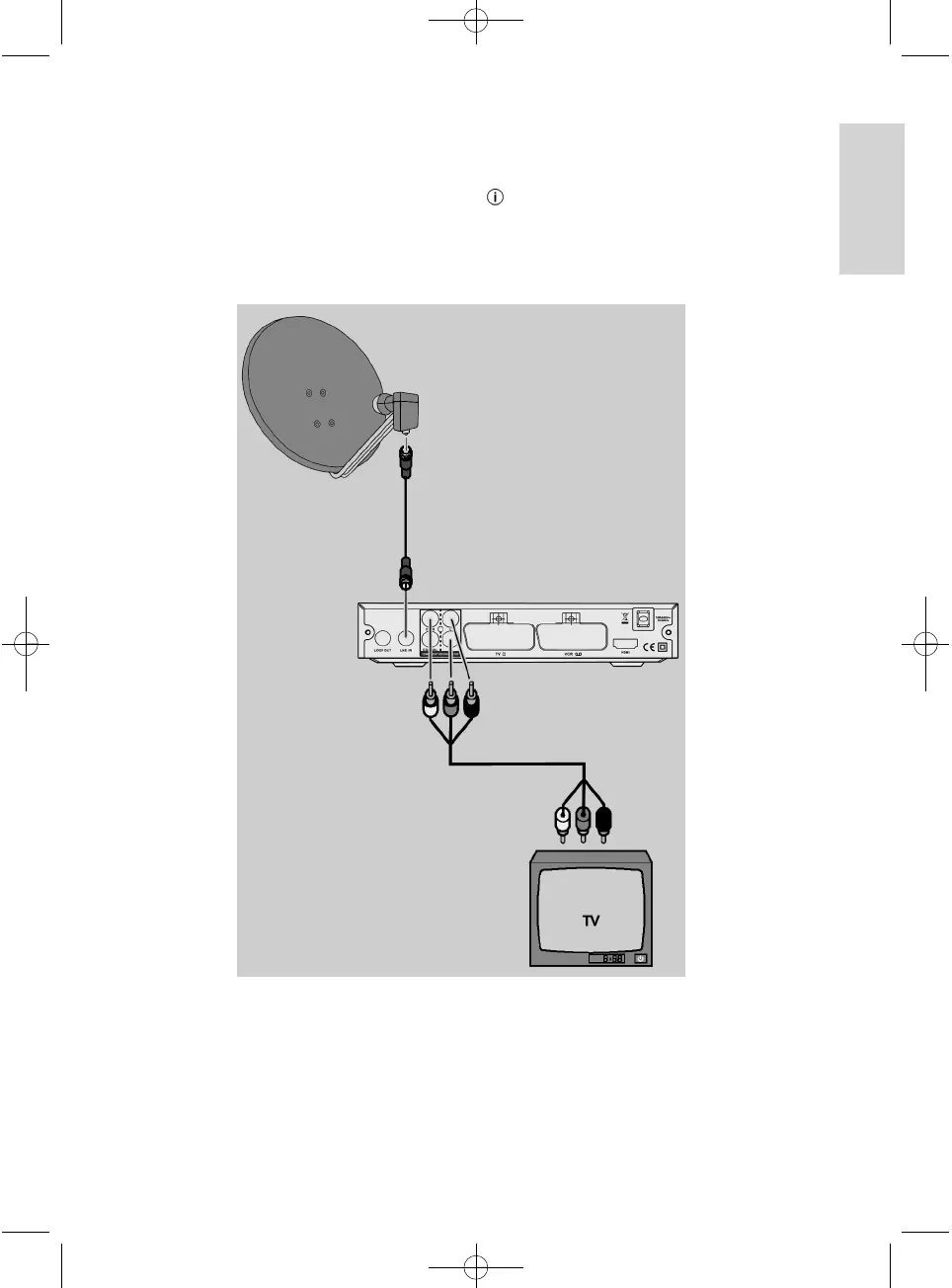

Connection schematic
Connecting to an RCA cable
 Take the coaxial cable coming from the satellite
dish and connect it to the "LNB IN" antenna
connector on the receiver.
 Insert the three plugs of the RCA cable into their
corresponding sockets on the receiver (video
(yellow), left audio (white) right audio (red)).
 Connect the plug on the other end to the TV set.
Note the operating instructions supplied for your
TV set.
The RCA cable is not included.
