Appliance Assembly

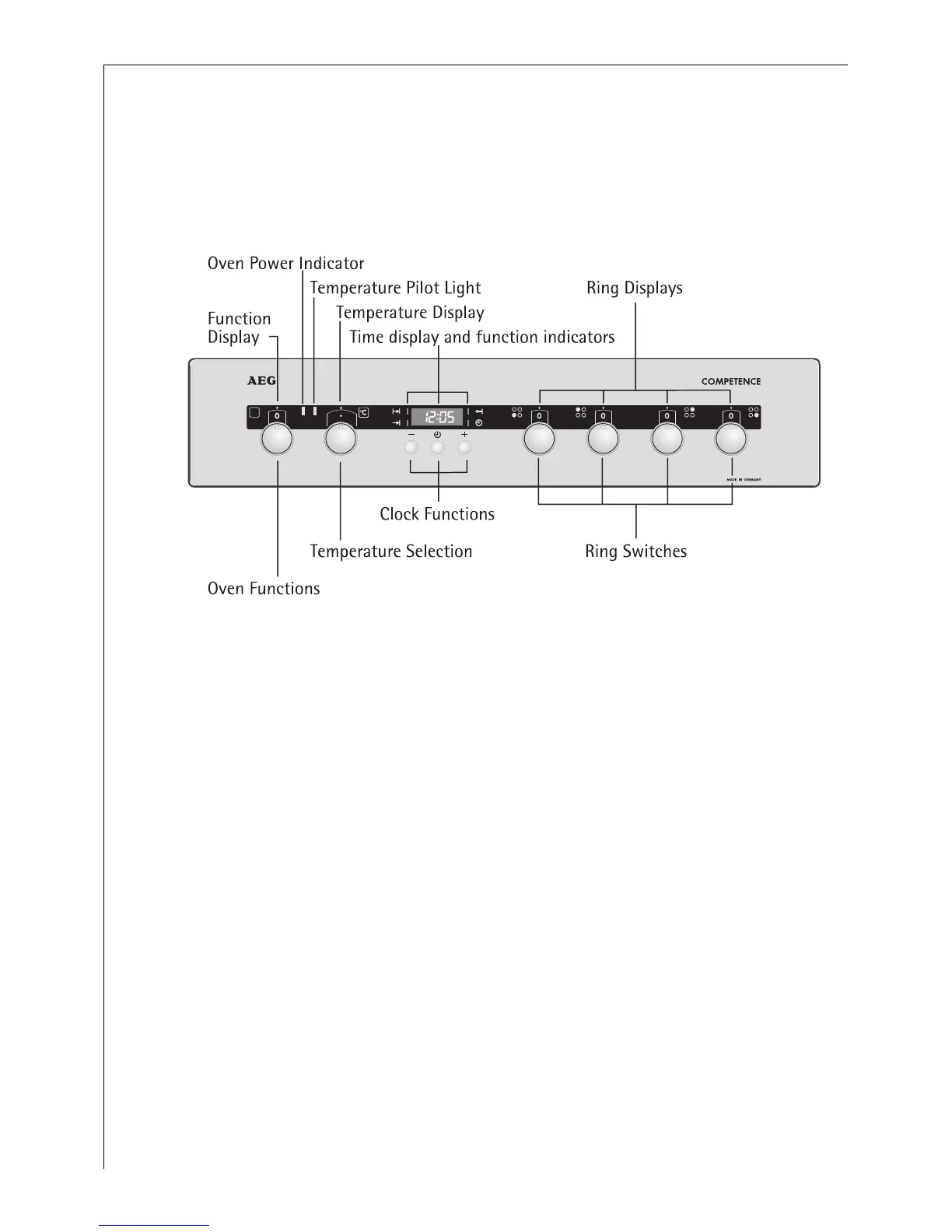

Control Panel
The appliance is fitted with push-in rotary switches.
Oven functions and function display
Switch for setting the required oven function.
The selected oven function is displayed in the oven function display.
Temperature selection and temperature display
Switch for setting the required oven temperature.
The selected oven temperature is displayed in the temperature display.
Oven power indicator
The yellow oven power indicator comes on as soon as the oven or rings
are switched on.
Temperature pilot light
The red temperature pilot light comes on while the oven is warming up
and goes out once the set temperature has been reached.
Ring switches and ring displays
Switches for turning on the rings.
The selected heat setting is displayed in the ring displays.
