AEG L7WC8632BI - Cupboard Door Preparation

M
N
O

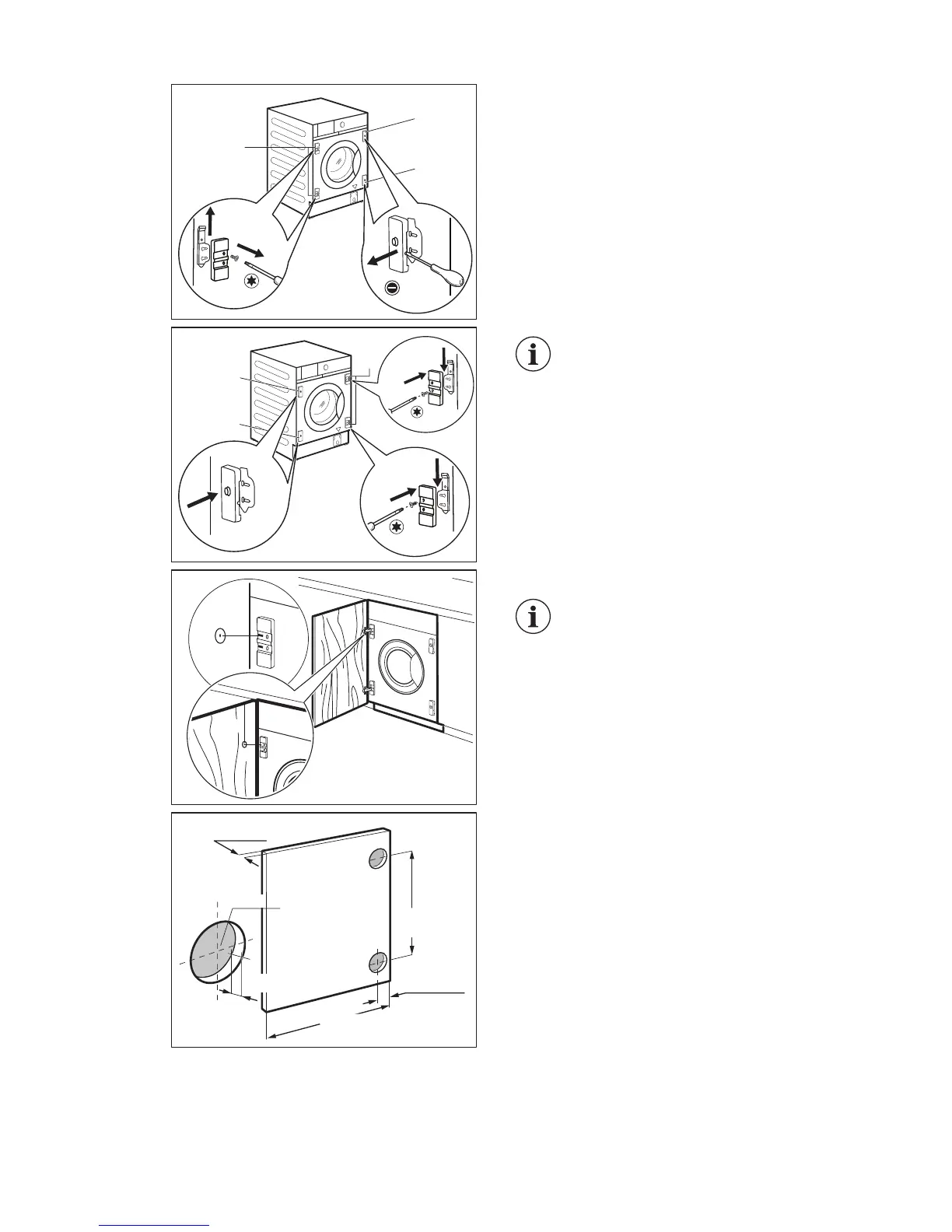

If the cupboard door has to be opened from
left to right, invert the position of the hinge
supports M with the magnetic plate N and
lower plate O.
M
N
O
Make sure that the plate with
magnet is on the upper
position.
x
y
y
Cupboard door preparation
For countersinking the door, it
is recommended to call a
professional.
Align the cupboard door to the furniture
correctly.
Measure the distance X to fix the height of
the hole to countersink the upper hinge. The
centre of the hole Y should be at the same
height of the stroke on the hinge support.
16-22 mm
22±1,5 mm
449
mm
595-598 mm
Ø 35 mm
12,5 - 14 mm
Set the position of the lower hole respecting
dimensions and distances shown in the
drawing (449 mm).
Countersink the holes.
