Hinges

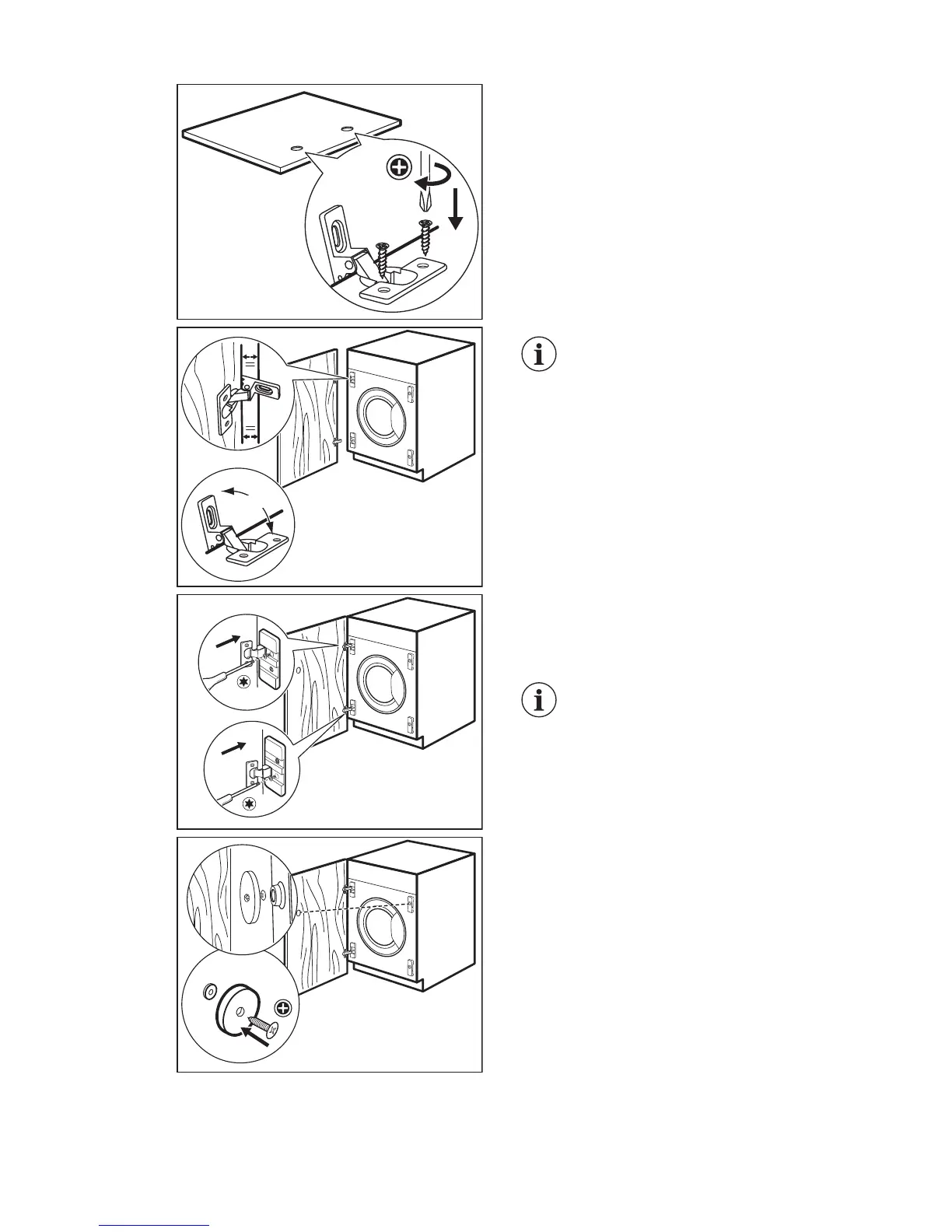

To mount the hinges it is necessary to drill
two holes (dia. 35 mm, depth 12.5 - 14 mm
depending on the depth of cupboard door)
on the inner side of the door.
The hinges will be fixed to the door by
means of the four supplied screws A.
To align the door perfectly,
make sure that the edge of
cupboard door is parallel with
the appliance edge and to
respect the proper opening
angle (max. 105 °).
Mounting the door
Fix the hinges to the hinge supports on the
appliance by means of the two supplied
screws B.
The hinges can be adjusted to
compensate for possible
uneven thickness of the door.
Counter-magnet
The appliance is pre set for a magnetic
closure.
For a correct closure:
1. Position the screw C and the counter-
magnet D on the magnetic plate N. Lean
the cupboard door against the screw
until it leaves a mark.
2. Open the cupboard door and screw the
counter-magnet D (steel disk + rubber
ring E) with the screw C in the inner side
of the cupboard door, where the screw
left the mark as described in the first
step.
ENGLISH 17
