AEG L7WC8632BI User Manual

1
2

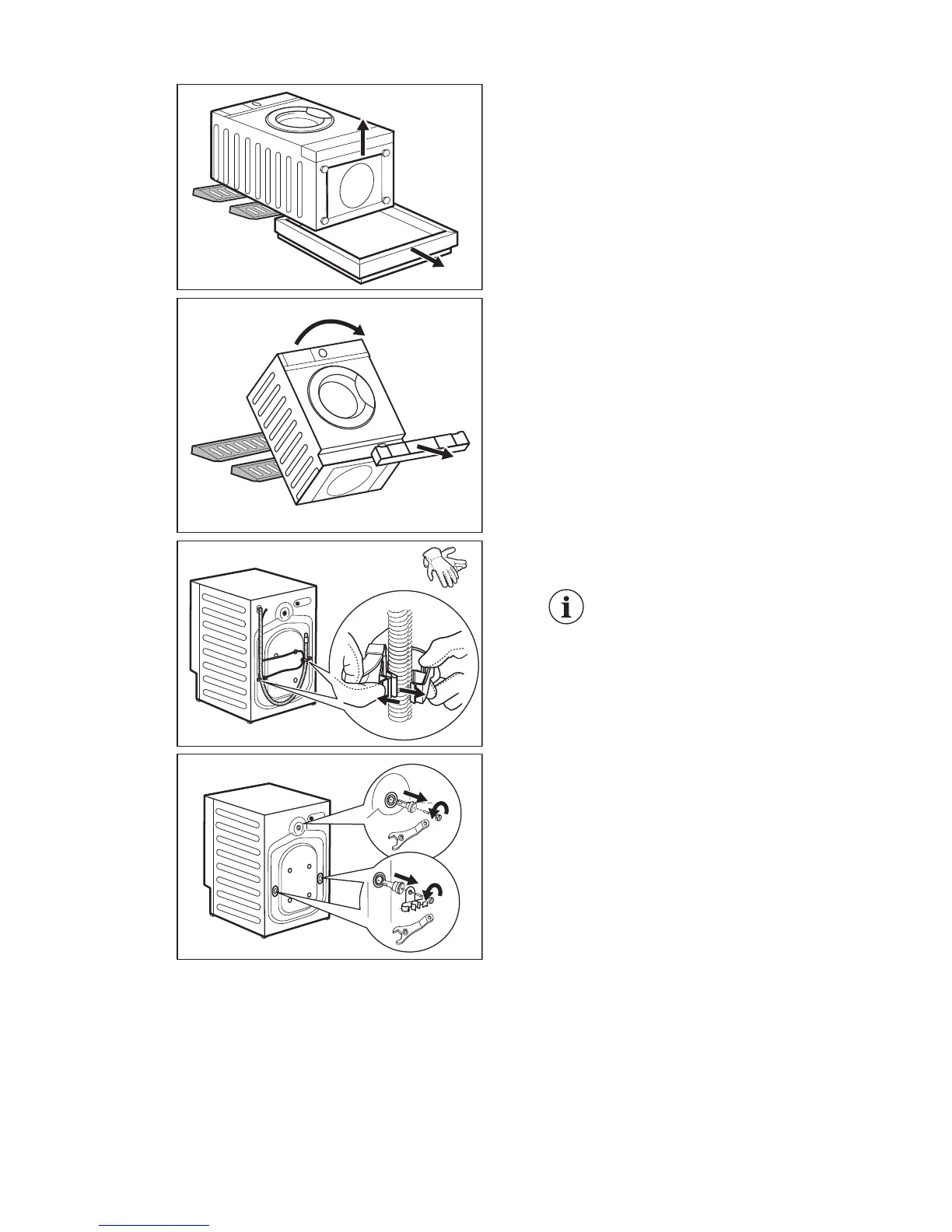

3. Remove the polystyrene protection
from the bottom.
1
2
4. Return the appliance in vertical
position and remove the socket
polystyrene protection.
5. Remove the power supply cable and
the drain hose from the hose holders.
It is possible to see water
flowing from the drain
hose. This is due to the
testing with water of the
appliance in factory.
6. Remove the three bolts, the hose
holders and plastic spacers by using the
spanner supplied with the appliance.
ENGLISH 9

AEG L7WC8632BI Specifications

General

Door hinge	Left
Drum volume	52 L
Loading type	Front-load
Product color	White
Built-in display	Yes
Custom panel-ready	-
Appliance placement	Built-in
Annual water consumption washing	11200 L
Annual energy consumption washing	194 kWh
Annual water consumption washing & drying	23000 L
Annual energy consumption washing & drying	1060 kWh
Drying capacity	84 kg
Washing capacity	8 kg
Residual moisture	44 %
Maximum spin speed	1600 RPM
Noise level (spin)	70 dB
Noise level (wash)	46 dB
Noise level (drying)	52 dB
Inlet hose length	1.5 m
Outlet hose length	1.4 m
Connected load	2000 W
AC input voltage	230-240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Energy consumption washing per cycle	0.97 kWh
Water consumption washing & drying per cycle	- L
Energy consumption washing & drying per cycle	5.3 kWh

Weight and Dimensions

Depth	540 mm
Width	596 mm
Height	819 mm
