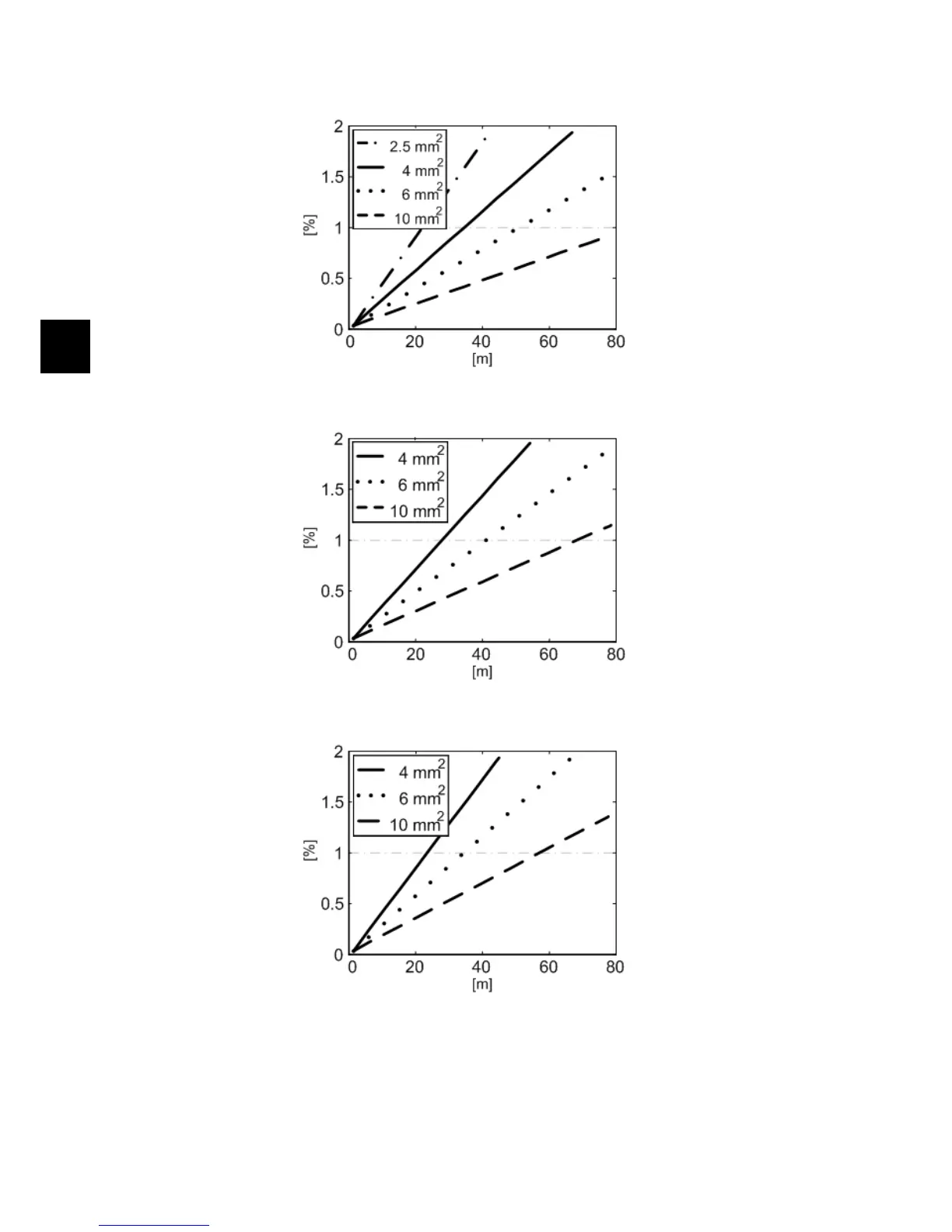

Illustration 5.1: Protect PV 10 kW Cable Losses [%] versus Cable Length [m]
Illustration 5.2: Protect PV 12.5 kW Cable Losses [%] versus Cable Length [m]
Illustration 5.3: Protect PV 15 kW Cable Losses [%] versus Cable Length [m]
Consider also the following when choosing cable type and cross-sectional area:
- Ambient temperature
