- Layout type (inside wall, under ground, free air etc.)
- UV resistance

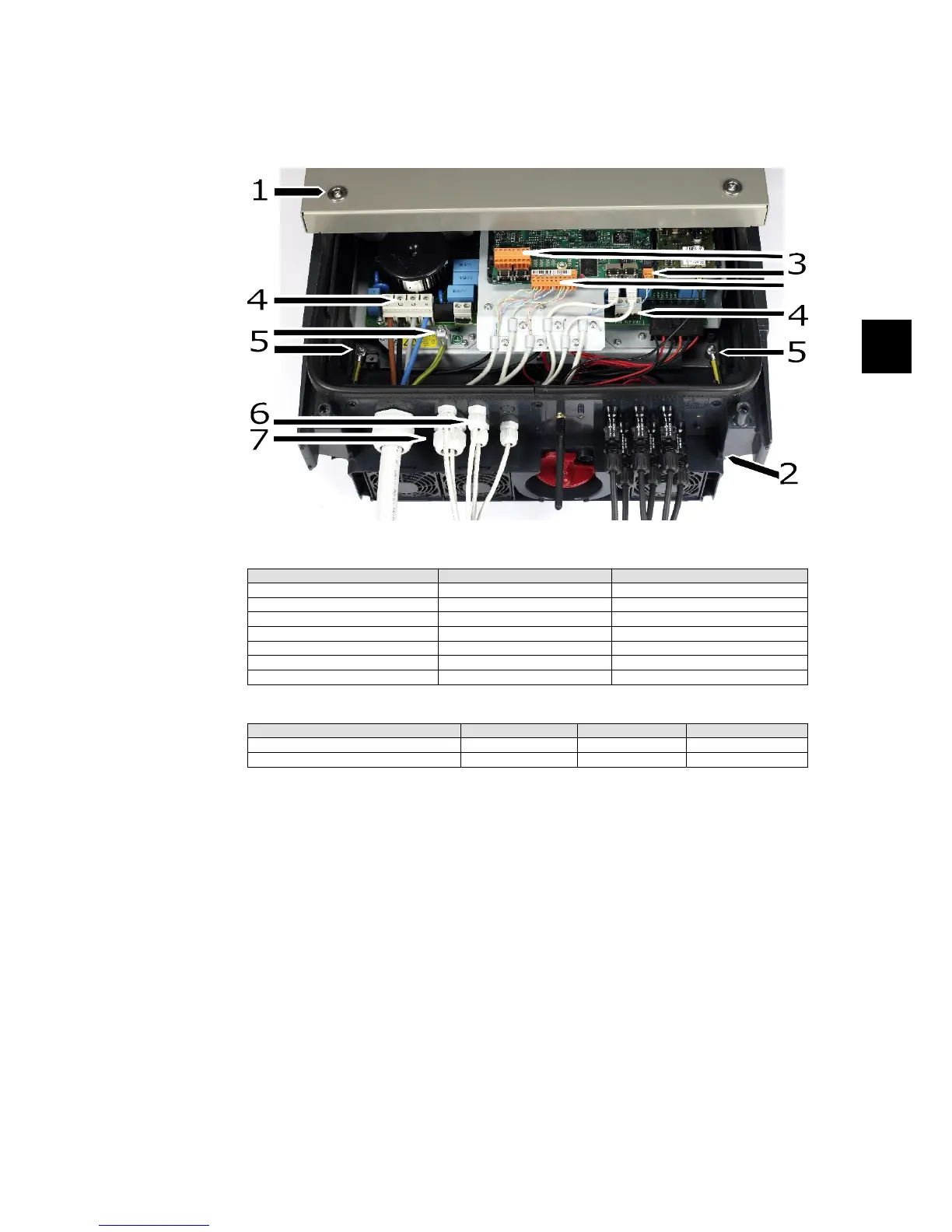

Illustration 5.4: Overview of Inverter with Torque Indications
Parameter
Screwdriver Tightening Torque
1 Front screws TX 30 6-8 Nm
2 Locking screw TX 30 5 Nm
3 Terminal blocks (small) Straight slot 0.5x3.0 mm 0.5 Nm
4 Terminal blocks (large) Straight slot 1.0x5.5 mm Min. 1.2 Nm
5 PE Straight slot 1.0x5.5 mm 2.2 Nm
6 M16 SW 19 mm 2-3 Nm
7 M25 SW 30 mm 2-3 Nm
Table 5.6: Nm Specifications
Protect PV 10 kW
Protect PV 12.5 kW Protect PV 15 kW
Maximum inverter current 15 A 19 A 22 A
Recommended fuse type gL/gG 16 A 20 A 25 A
Table 5.7: Mains Circuit Specifications
5. Technical Data
8000038781_00_BAL_en / L00410564-01_02 27
5
