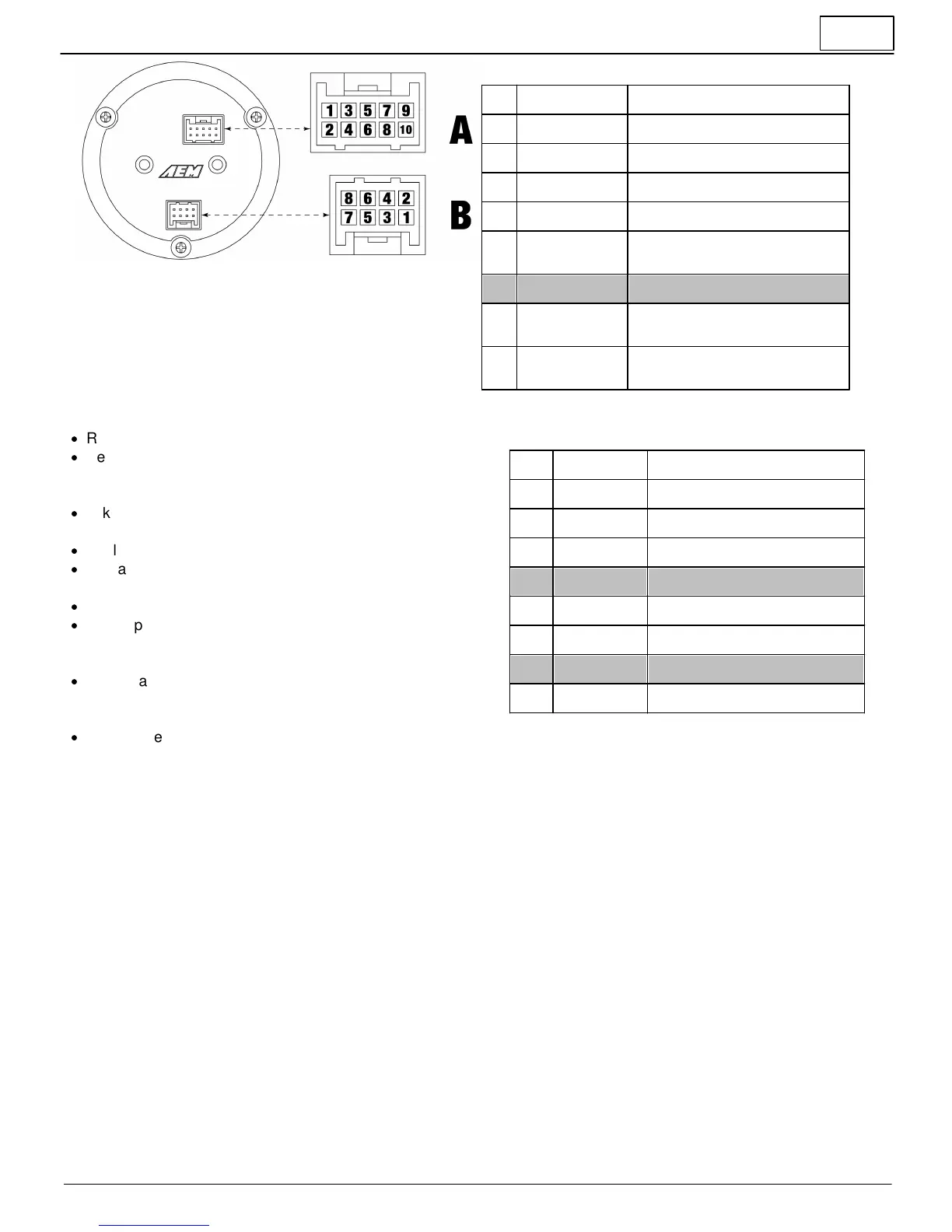

Important Notes on Wiring
·
Route harnesses carefully to avoid chafing or undue strain.
·
Secure wiring to vehicle with wire ties paying special
attention to the sensor harness routing beneath the vehicle
and/or in the engine compartment.
·
Take care when routing sensor harness near hot exhaust
components.
·
Apply strain reliefs and wire coverings as necessary.
·
Use a 5A inline fuse on the switched 12V power supply
line (Pin 1 - Power/IO).
·
Avoid cutting or extending the sensor harness.
·
Use appropriate gauge wire (20 AWG or thicker) when
extending wires, especially Pins 1(Switched 12V) or
2(Ground) of the Power/IO harness.
·
Ensure all connections are secure and insulated from
shorts to adjacent wires and the vehicle structure. Utilize
proper crimping and solder/heatshrink techniques.
·
Replacement pins are JST P/N SPUD-001T-P0.5 terminals
for 22-26 AWG wire
