30-0300 X-Series UEGO Gauge

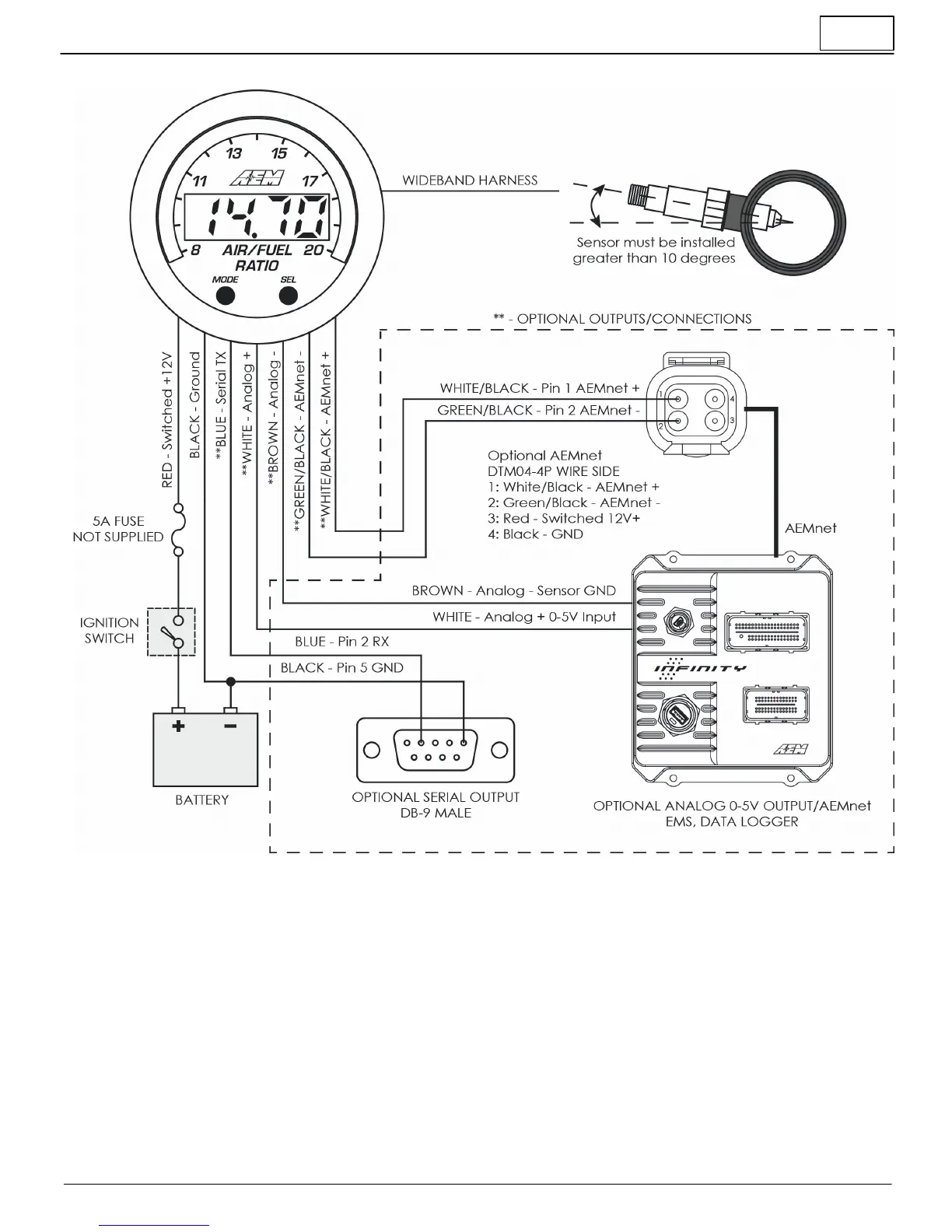

Wiring Installation Diagram

Gauge Connections

The X-Series UEGO gauge is supplied with a Power/IO wiring harness (A) and a UEGO sensor harness (B); the harnesses

are connected to the gauge as shown below. The UEGO sensor harness simply needs to be routed to the UEGO sensor

whereas the Power/IO harness will require further integration into the vehicle. The minimum Power/IO connections

required to operate the gauge are switched 12V (5A fuse) and ground. Please reference the diagrams and information on

the provided for further detail.

Questions and Answers:

Need help?

Do you have a question about the AEM 30-0300 and is the answer not in the manual?

AEM 30-0300 Specifications

General

Output	0-5V
Part Number	30-0300
Display Size	52mm (2-1/16")
Input Voltage	10-18V
Sensor Compatibility	Bosch 4.9 LSU
Product Name	X-Series Wideband UEGO AFR Controller Gauge
