AEMC 6503 User Manual

22 MegohmmeterModels6501/6503

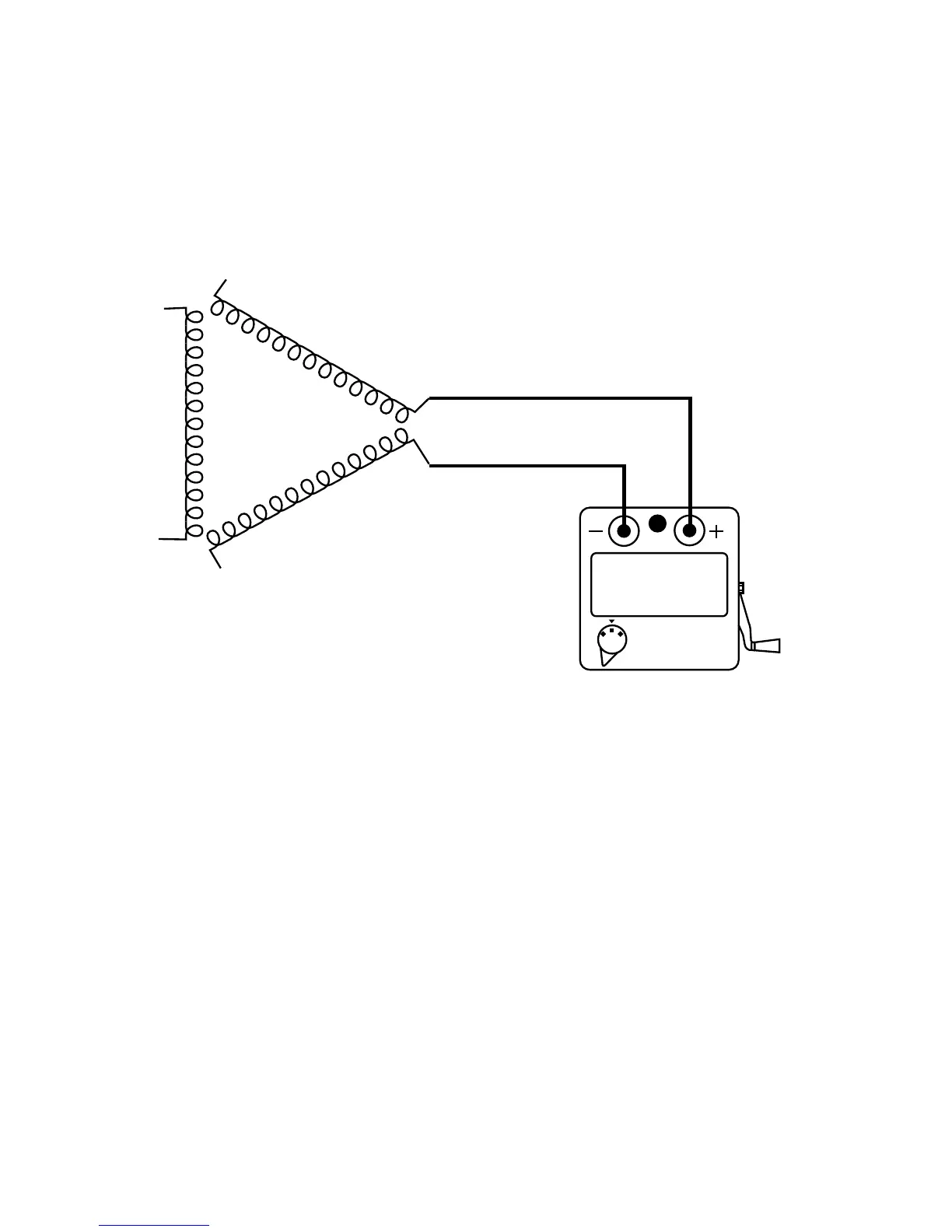

Figure4-9showsthewindingsofathree-phasemotorseparated.
Sometimesthiscanbedoneattheleadterminalswhileothertimes
theendbellsmustberemovedtogetattheleadwiresofthecoils.
By connecting the megohmmeter as shown, the phase insulation
resistancevaluecannowbedetermined.Readbetweenphases“A”
and“B”,then“B”and“C”,then“C”and“A”.
A
B
C
Figure 4-9
