17.09.2018 Garage Door Controller Gen5 user guide. : Aeotec by Aeon Labs
https://aeotec.freshdesk.com/support/solutions/articles/6000053811-garage-door-controller-gen-5-user-guide- 5/11
LOCATE CONTROL BUTTON
a) WITHIN SIGHT OF DOOR;
b) AT A MINIMUM HEIGHT OF 1.53 M (5 FT) SO SMALL CHILDREN CANNOT REACH IT; AND
c) AWAY FROM ALL MOVING PARTS OF THE DOOR.
Garage Door Controller must be installed in your home and near the garage door. It cannot be installed outdoors in
elements such as rain and snow.

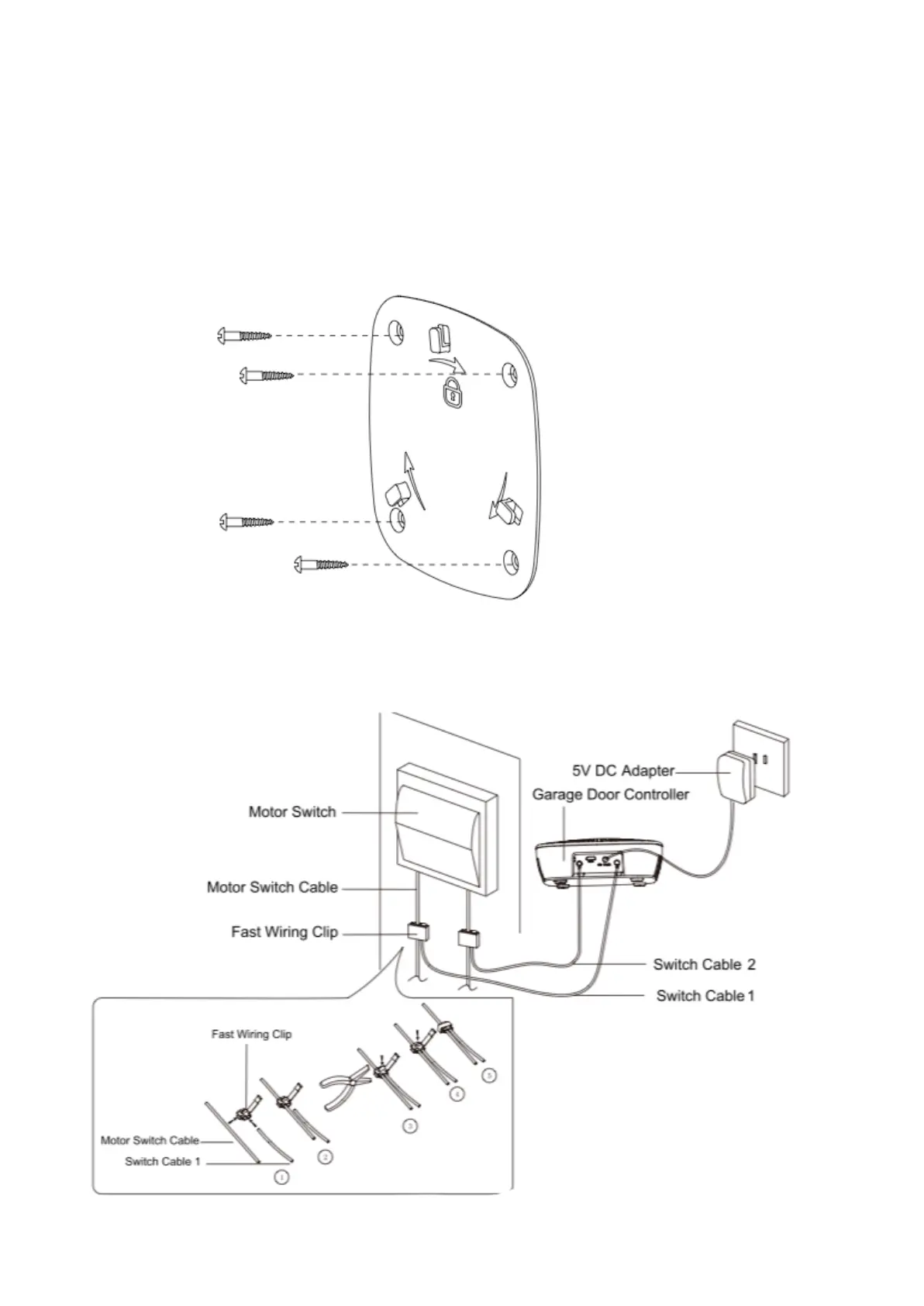

1. Utilize the provided 20mm screws to affix it to the desired surface.
2. Connect the 2 Switch cables to the Switch Connector 1 and 2 on the Garage Door Controller, and then use the
Fast Wiring Clip to connect the 2 Switch Cables to the Motor Switch Cables, see the figure below:
