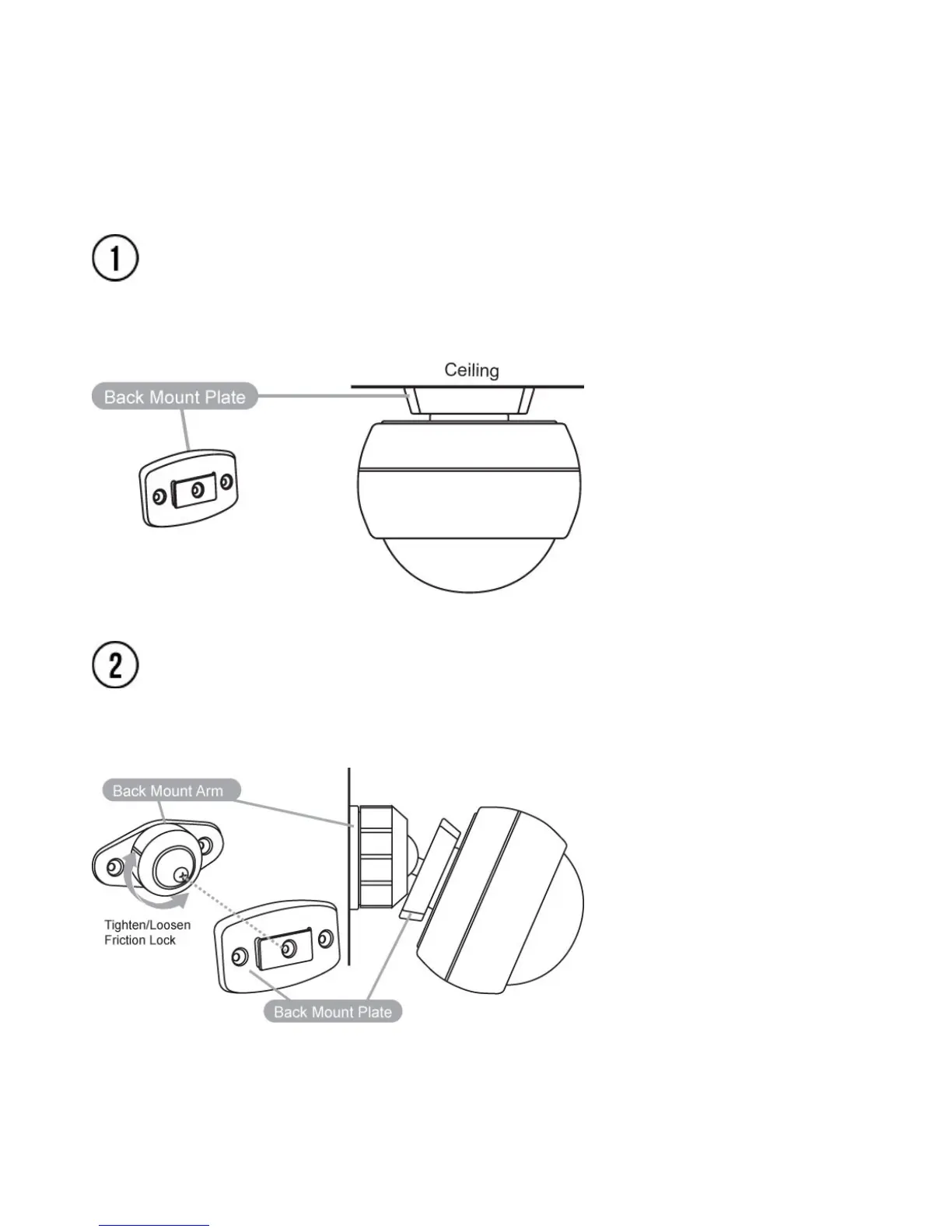

Mounting the Multisensor flat against the ceiling via the back-
mount plate.
Mounting the Multisensor angled in a direction via the Back-
Mount Arm.
Note
The Back-Mount Arm may be locked in various angles by
turning the Friction Lock clockwise and counter-clockwise to
tighten or loosen (respectively) the angle of the arm.
Important: The MultiSensor is weatherized and can operate
outdoors in rain and snow. Placed outdoors where directly
exposed to rain and snow, the MultiSensor should be
oriented such that the Temperature/Humidity Sensor is facing
downward and positioned on the bottom of the unit – see the
Weatherization Orientation section for more information.
