AER Compact 60 3 - Rear Panel Connections

13

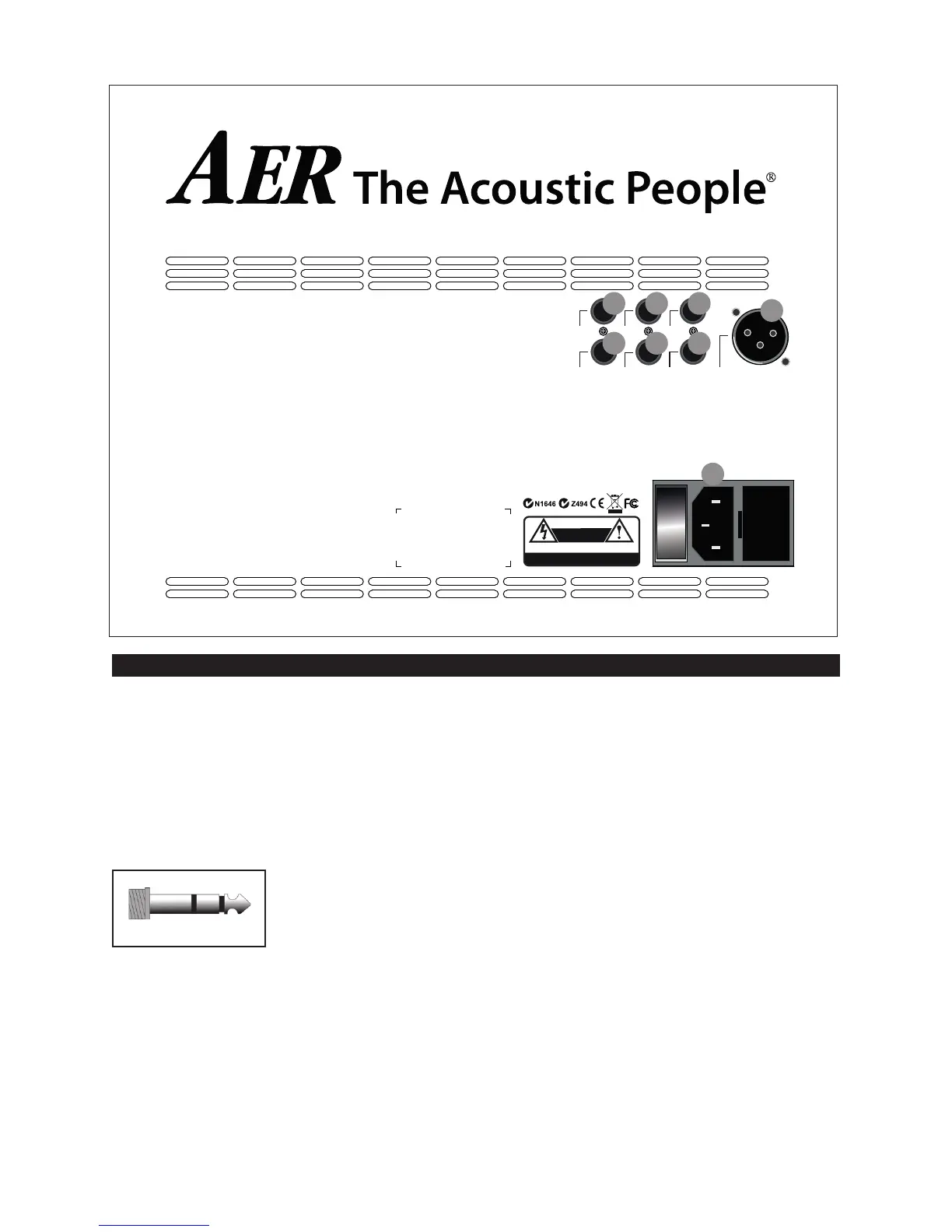

3.2 Rear side
1) line out
The line out supplies a pre-amp signal taken
after tone-control, eects and master for forwar-
ding to other appliances.
2) headphones
This output enables you to connect stereo head-
phones and mutes the loudspeaker.
!!!
Warning: Only use
headphones with stereo
jackplugs in this output
socket !!!
3) send
Send is an output to connect to an external
eect device and in conjunction with return
(input) forms a loop here designed as external
eect loop. The eect can be switched on or o
via footswitch.
4) return
Return as part of the eect loop operates as
signal input from an external eect device (from
output of the eect device). The eect can be
switched on or o via footswitch. Return on its
own can also be used as quasi auxiliary signal
input (-10 dbV).
5) tuner
The tuner output supplies a pre-master signal
(-9 dbV) to connect an external tuner to the
Compact 60
3.
6) footswitch
Connection socket for a double-footswitch (on-/
o-switch, tip = internal eect/ring = external
eect on/o).
7) DI-out
Preamp-output with symmetrical signal, after
tone-control, pre master, without eects.
8) power on
Combined mains switch with mains socket and
fuse holder.
power on
line out
headphones
send
return
tuner
CAU T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AT T E N T I O N
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
Made in Germany by
B
Compact 603
twin channel acoustic amplier
tip = int. efx
ring = ext. efx
on/o
1 = gnd
2 = pos
3 = neg
DI-out
footswitch
IB_Compact603_20120529
1
2
3
4
5
7
8
6
