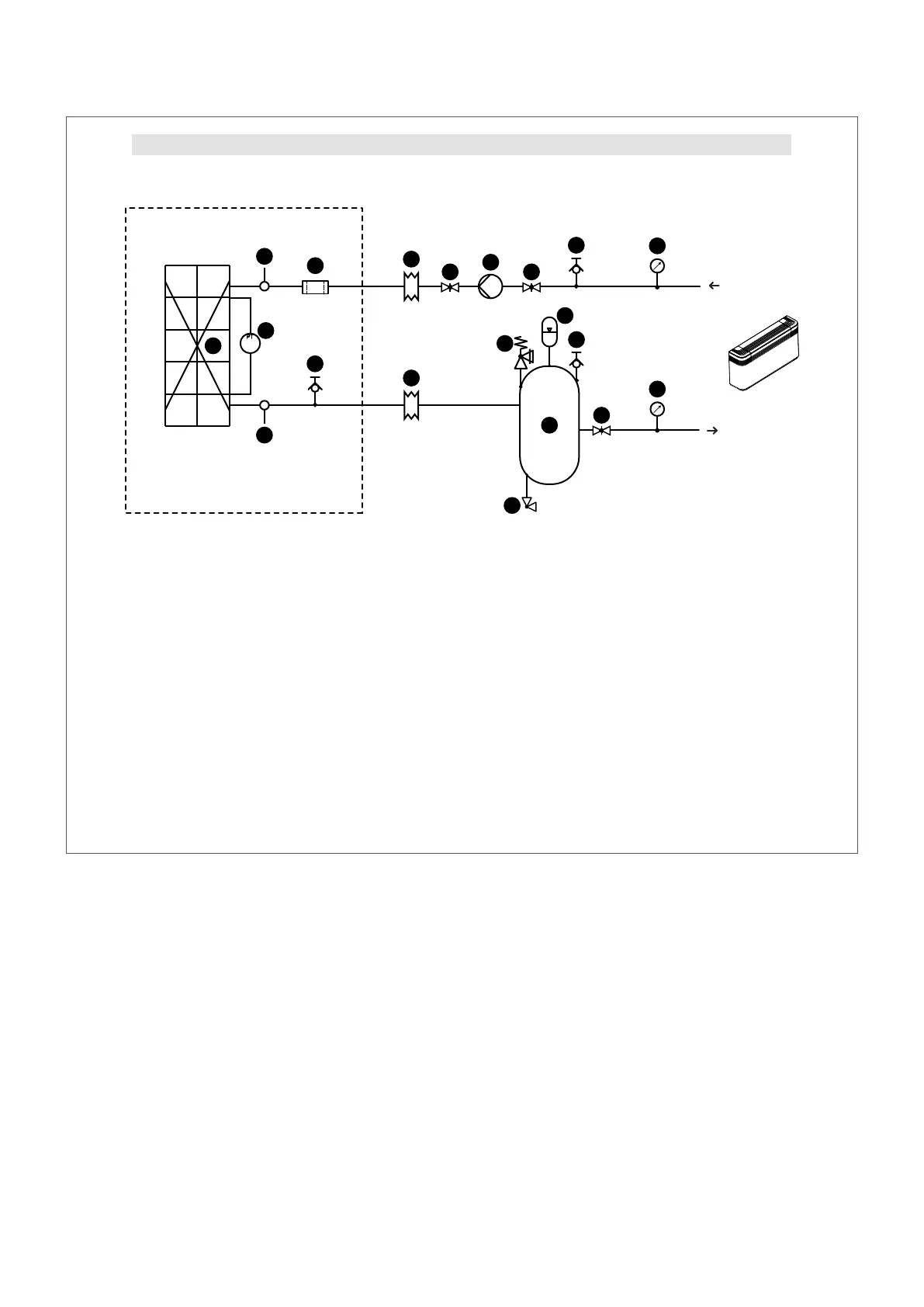

TYPICAL HYDRAULIC CIRCUITS
INTerNAL AND eXTerNAL HYDrAuLIC CIrCuIT ANL ° (STANDARD)
COMPONENTS PROVIDED AS STANDARD
1 Plate heat exchanger
2 Dierential pressure switch
3 Water temperature probe
4 Water lter
5 Air vent valve
HYDRAULIC COMPONENTS RECOMMENDED EXTERNAL TO UNIT
(RESPONSIBILITY OF THE INSTALLER)
5 Air vent valve
6 Anti-vibration joints
7 Cut-o valve
8 Pump
9 Pressure gauge
10 Storage tank
11 Safety valve
12 Expansion tank
13 Drain tap
Unit
Components recommended
1
PT
2
3
3
4
5
5
5
6
6
7 7
7
8
9
9
10
11
12
13
