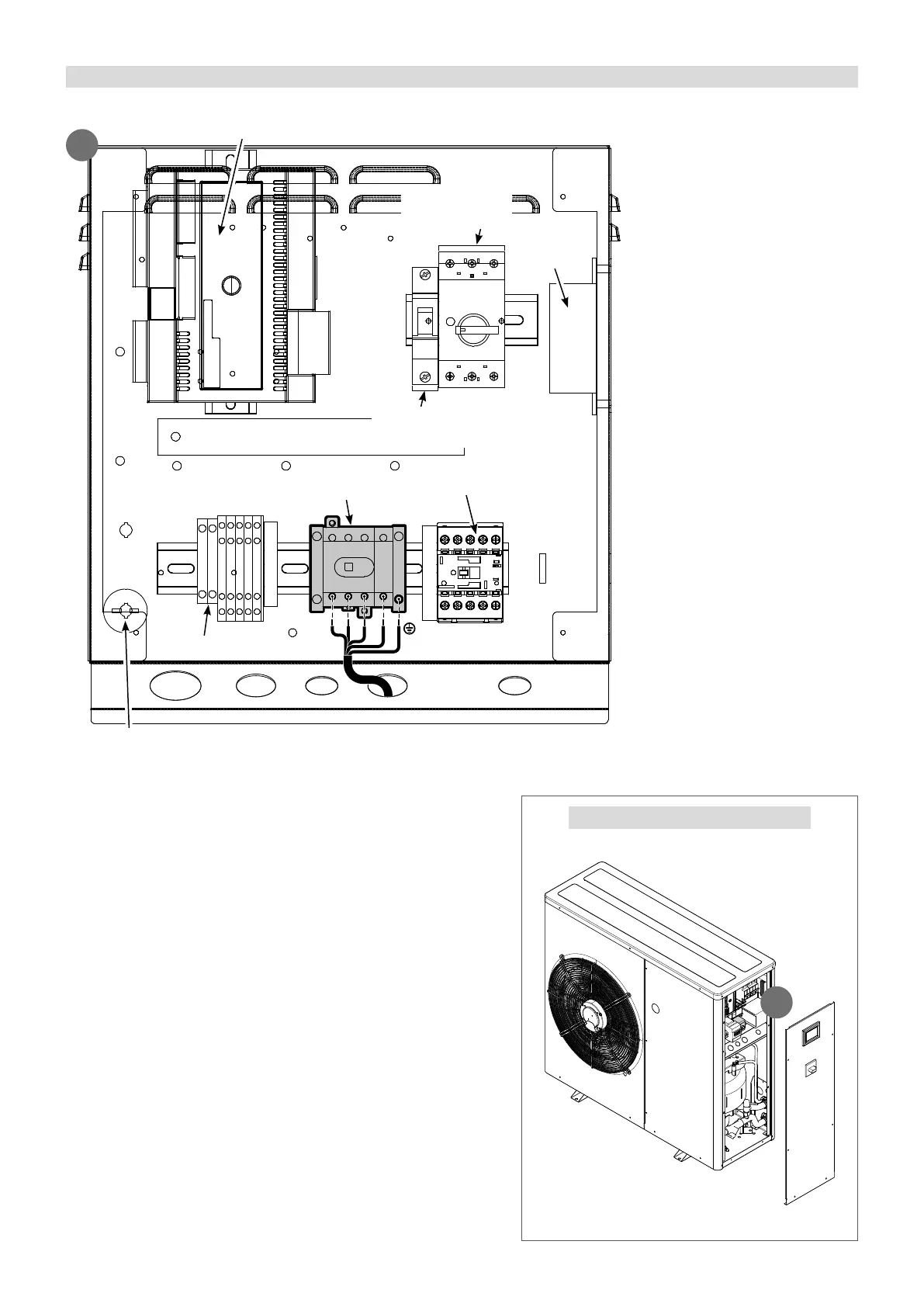

EXAMPLE LAYOUT OF THE ELECTRICAL PANEL  VERSION A - Three-phase power supply (400V/3N/50Hz)
L1 L2 L3 N
Position of electrical panel - version A
A
A
(*) Near the clamps of the board there is
an auxiliary control board (11 poles)
connected to the electrical panel wiring.
DCPX
(accessory)
ELECTRONIC CONTROLLER
MODUCONTROL
COMPRESSOR
THERMOMAGNETIC
SWITCH
MASTER
SWITCH
COMPRESSOR
CONTACTOR
TERMINAL BOARD
(*)
FAN CONDENSER
(only in
COOLING ONLY version
)
AUXILIARY
THERMOMAGNETIC
SWITCH
