AERMEC RPLI User Manual

25

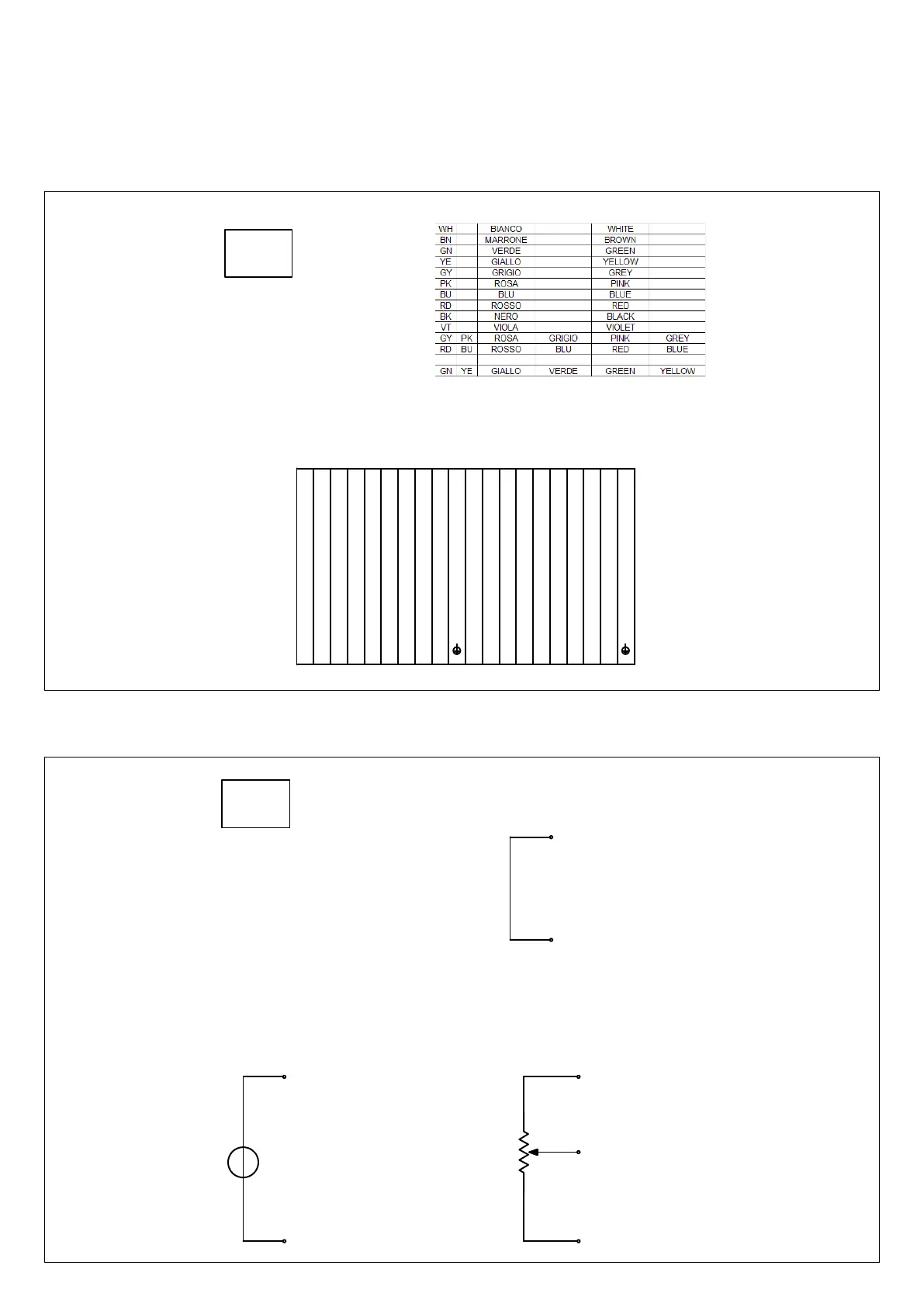

WIRING DIAGRAM LABEL - RPLI 400P
cod. 0660042 R3G355RJ7501
10V - Signal
400Vac 50/60Hz 400Vac 50/60Hz
400Vac 50/60Hz
GY BN WH BN GN YE GY PK
SUPPLY FAN
VENTILATORE RIPRESA
VENTILATORE MANDATA
VENTILATEUR REPRISE
EXHAUST FAN
VENTILATEUR SOUFFLAGE
ABLUFT VENTILATOR
ZULUFT VENTILATOR
GNYE BK PK GY YE GY BN WH BN GN
GND - Signal NC - Alarm exhaust 1 COM - Alarm exhaust 1
GNYE BK
400Vac 50/60Hz 400Vac 50/60Hz +10Vdc - Voltage output
400Vac 50/60Hz
COM - Alarm supply 1 +10Vdc - Voltage output 10V - Signal GND - Signal NC - Alarm supply 1
rev.01
ET00057
POTENTIOMETER LABEL - FOR ALL THE SIZES
Signal 10V
+10Vdc
GND Signal
Full Speed
Speed Setting Speed Setting
Signal 10V
+10Vdc
Signal 10V
GND Signal
0-10V
<1V n=0
1V n=min
10V n=max
10K
rev.00
ET00056
