CONTROL PANELS ACCESSORIES, THERMOSTATS AND VMF SYSTEM CONTROL DEVICES
Recessed supervision control panel, available in 2 colours:
• white
• black.
allows the centralised
control/command of a complete hydronic
system composed of:
• Fan coils: up to 64 fan coils zones composed
of 1 master + max 5 slaves.
• Chiller/Heat pump equipped with Modu_
485A, AER485, AER485P2 / AER485P1
• Circulator: maximum 12 configurable zone
circulators.
• Boiler: boiler consent management for hot
water production.
• Heat recovery units: maximum 3 consents
for programmable heat recovery units
according to time periods and/or through
the air quality detection obtained with
VMF-VOC accessory.
• Domestic hot water module: complete
management of domestic hot water pro-
duction through the control of:
- Diverter valve/circulator
- Integrative heater
- Accumulation temperature probe
- Anti-Legionella cycle
The main feature is the possibility of manag-
ing the system through algorithms aimed
at achieving environmental comfort with a
view to energy saving.

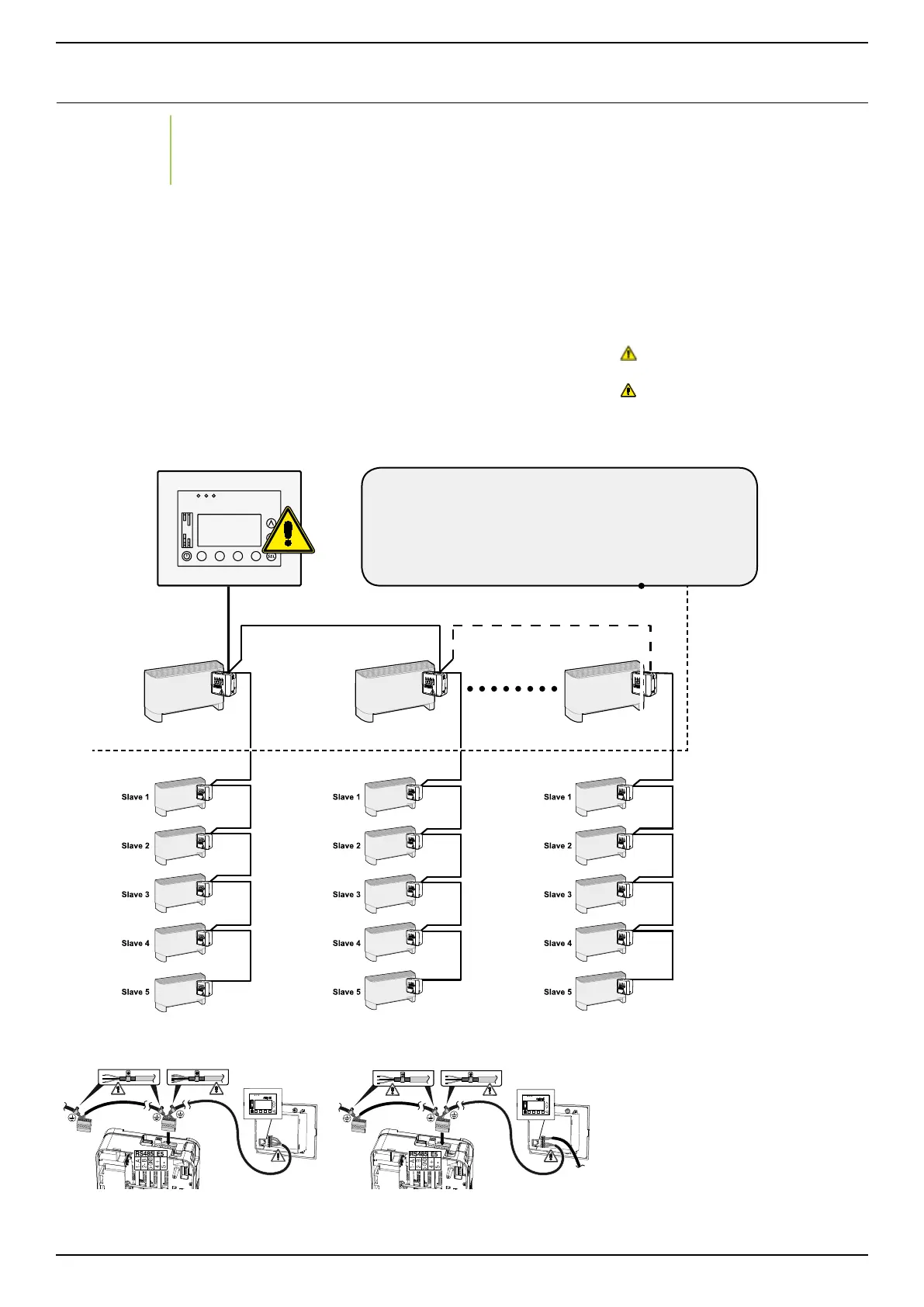

• Maximum number of MASTER fan coils = 64
• Maximum number of SLAVE fan coils which can be connected to each MASTER = 5
Connection with VMF-E5 powered by VMF-
E1
Connection with VMF-E5 with external
power supply
