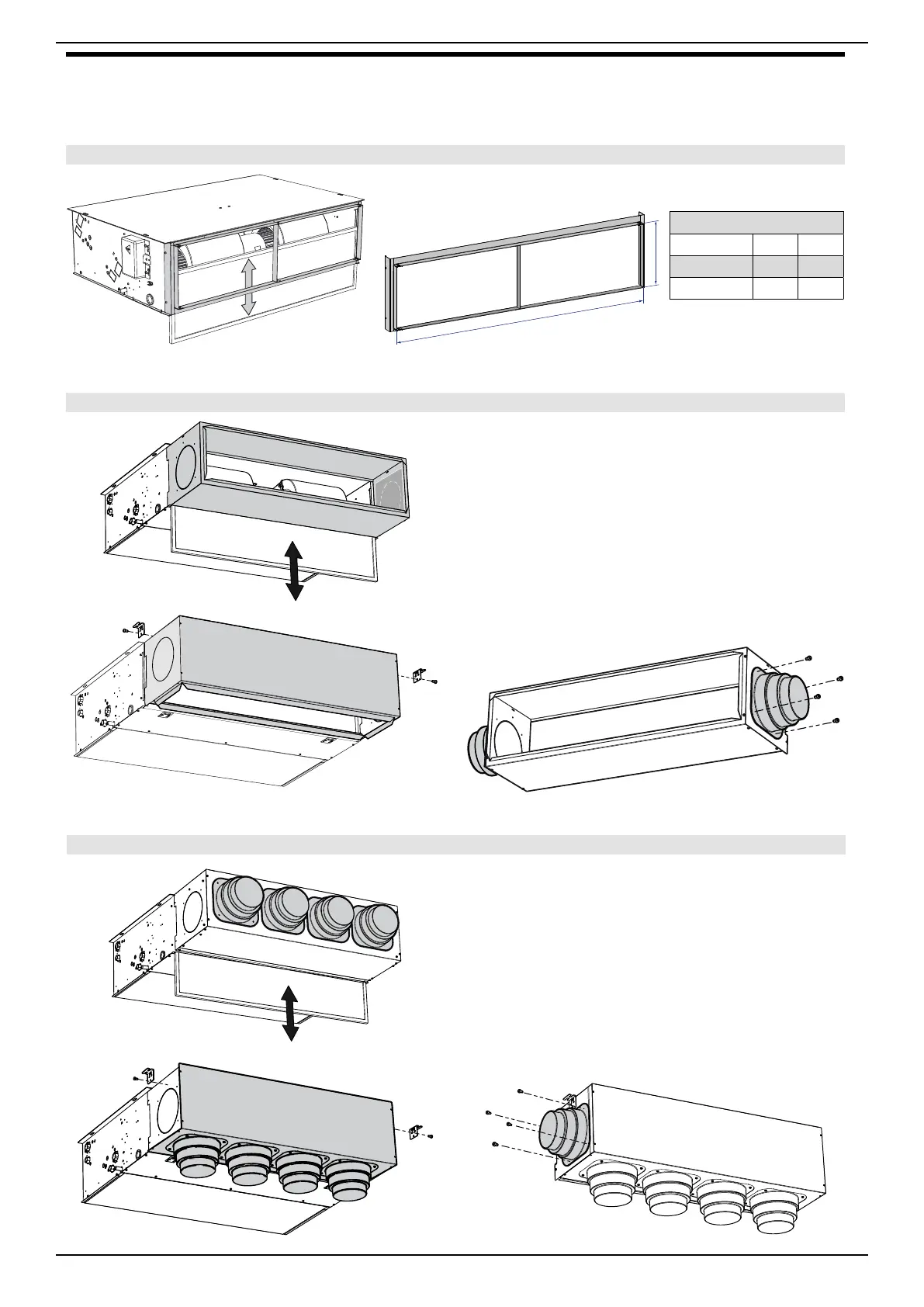

RDA_V STRAIGHT INTAKE FITTING
Straight intake fitting with rectangular flange for ducting. Made of galvanised
sheet steel. It can house the air filter.
[]
A B
RDA450V 1053 257
RDA670V 1453 308
A
B
ACCESSORIES
DUCTING ACCESSORIES:
RPA_V is an intake plenum with rectangular flange made of
galvanised sheet steel. This accessory allows a channel with a
rectangular section to be connected to the intake vent of the
VED unit.
According to requirements, the RPA_V accessory allows for intake
both longitudinal and perpendicular to the air flow passing
through the VED unit.
The sides of the RPA_V intake plenum are set for the connection
of a circular section channel by means of the KFV accessory.
KFV
KFV
RPA_V
PA_V is an intake plenum made of galvanised sheet metal with
plastic circular flanges having variable section. This accessory
allows connecting channels with circular section to the intake
vent of the VED unit.
According to requirements, the PA_V accessory allows for intake
both longitudinal and perpendicular to the air flow passing
through the VED unit.
The sides of the PA_V intake plenum are set for the connection of
an additional circular section channel by means of the KFV
accessory.
KFV
PA_V
