6
~










~

~~
~
~
~
~
~
~
~
~

~

~
~






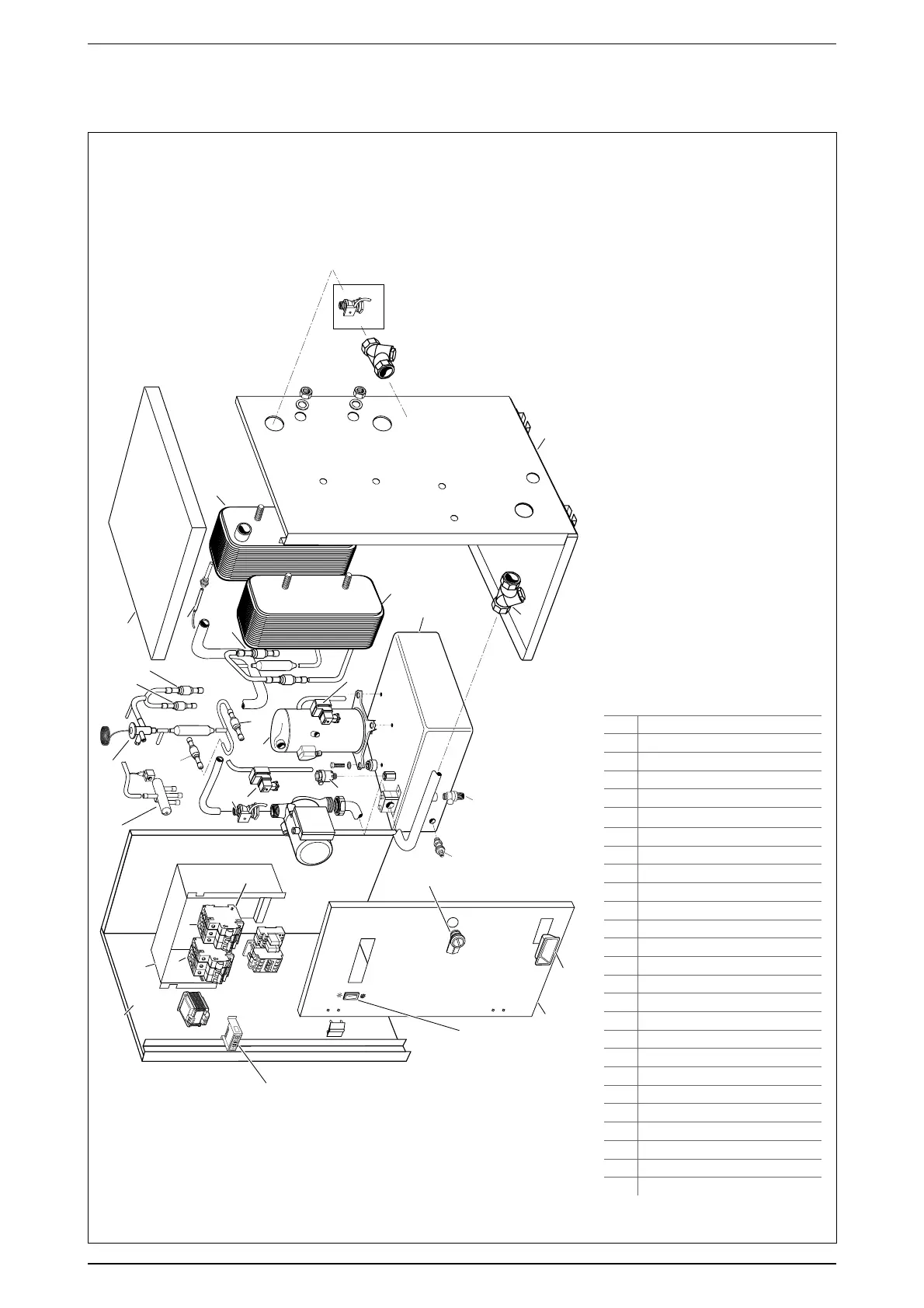

KEY
1
Frame
2 Electric box
3 MTP switch
4 MTA switch
5 Interlock
6 Cycle reverse valve
7 Thermostatic valve
8 Non-return valve
9 Cover
10 NTC 10K water probe L=1.5 M
11 Condenser
12 Side panel
13 1" oblique filter
14 Storage
15 Evaporator
16 3 bar safety valve
17 Draining tap
18 Flow meter
19 AP pressure switch
20 Compressor
21 Relief valve
22 1/4 turn closure
23 Handle
24 Front panel
25 Diverter
26 Control board
VENICE 015H - 020H - 025H - 030H heat pump
