Aerohive AP230 - Diagonal Dripped Ceiling Track Mount

AP230
Page 10 of 18
You can also mount these devices to non-standard or recessed dropped ceiling tracks using brackets designed for 9/16" (1.34
cm) tracks. These brackets can be ordered from Aerohive (AH- ACC-BKT-80211AC-KIT).
Diagonal Dropped Ceiling Track Mount

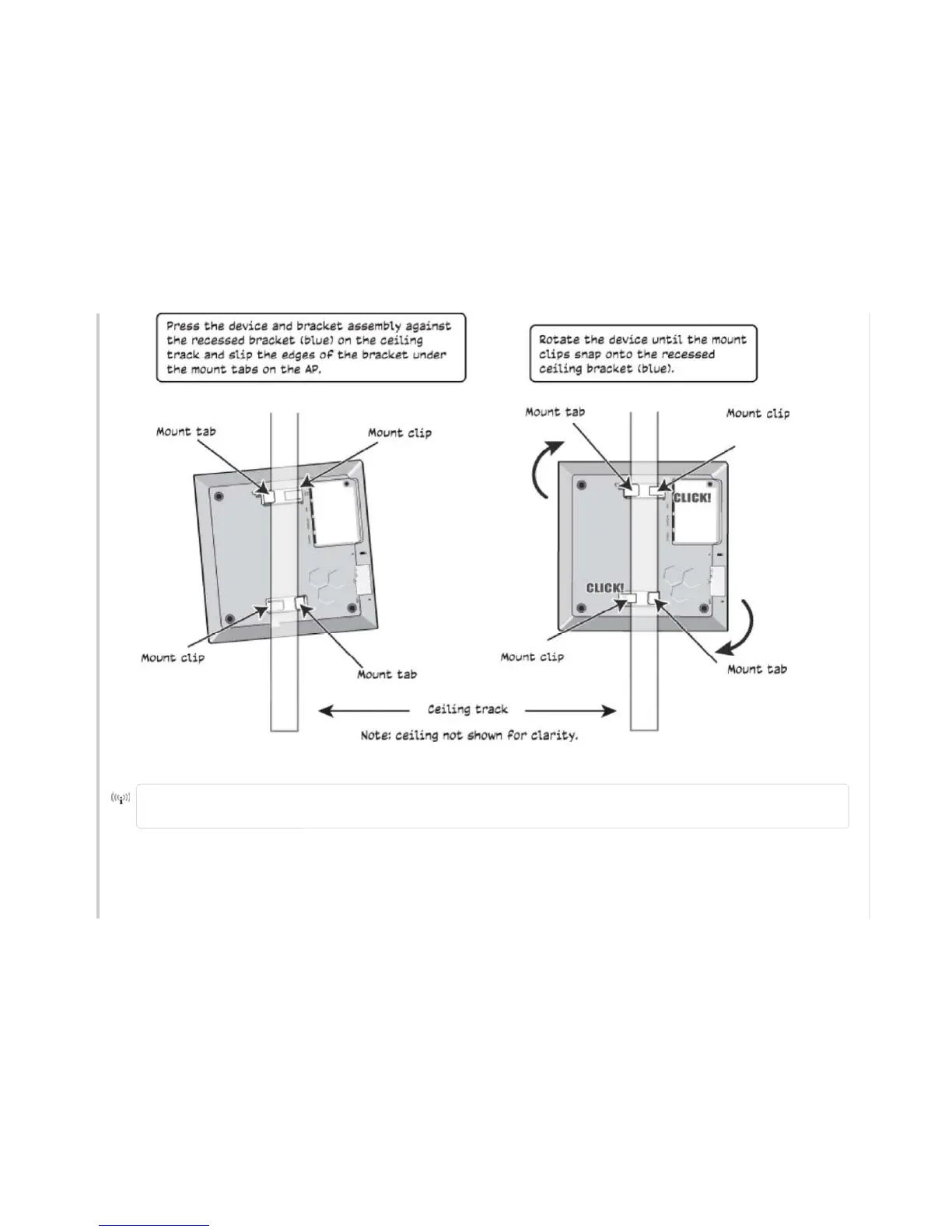

Follow these steps and the illustration to mount an AP230 in the diagonal position on a standard dropped ceiling track.
1. Attach the diagonal bracke t to the device by slipping the mount tabs on the device over the plain edges of the di ag ona l br ac k et.
2. Rotate the bracket until the mount clips on the device click into place over the bracket edge.
6 / 26 / 2014
