Aerohive AP230 - To Secure a Device for All Mounting Positions

AP230
Page 12 of 18
If you use the security screw, you will need a spanner insert bit for s i ze #6 s e curi ty screws and a driver tha t will accept the bit. These bits
are available from Aerohive in sets of three (AH-ACC-SEC-BIT-330-AP350-3PK). If you use the crosshead screw, you can install it with a
s t anda r d crosshead scr e wd r i ve r or driver b i t.
F o ll ow these steps to secure a device for all mounting pos i ti ons :

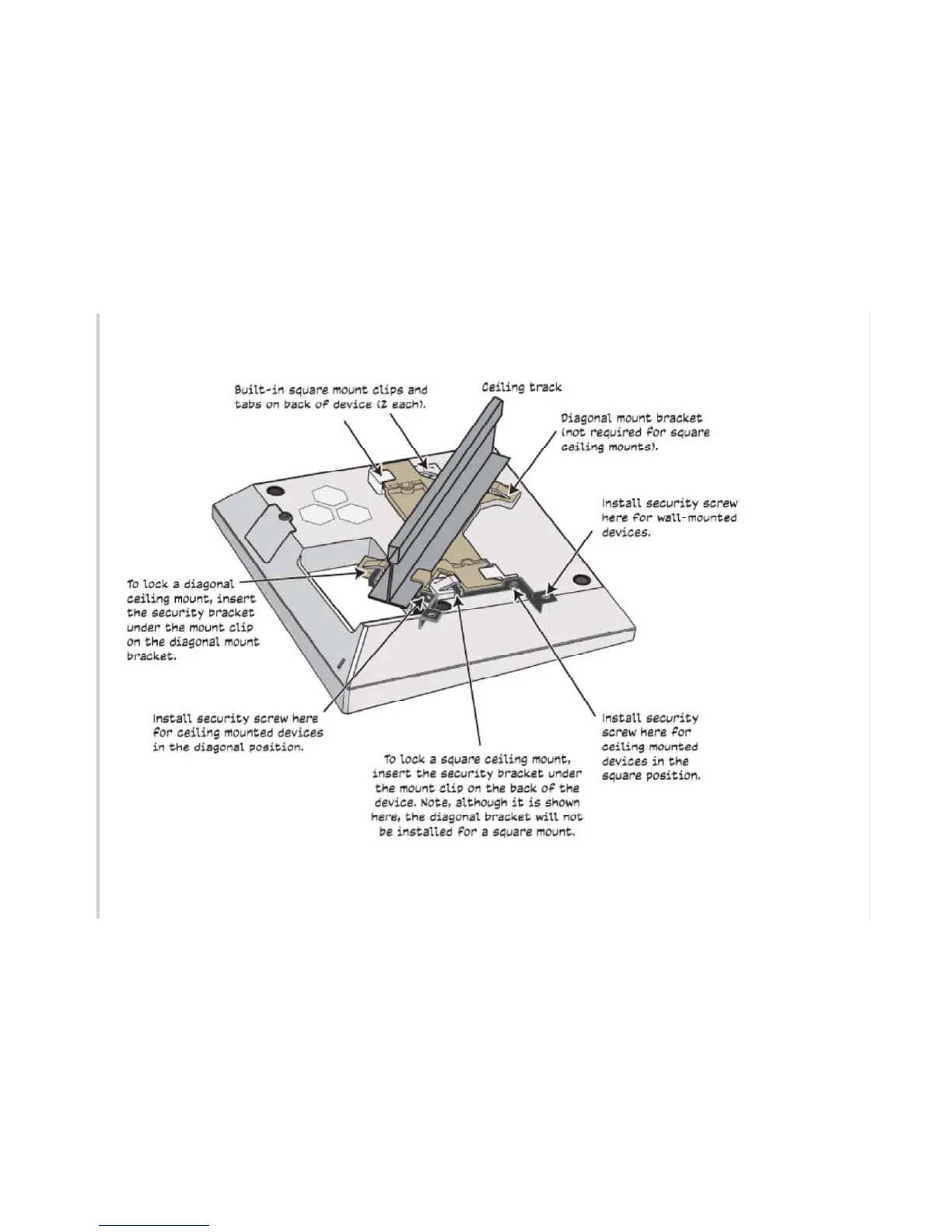

1. Once the device is mounted to the wall or cei l ing track, install the security bracket in the appropriate position as shown in
the
illustration. The bracket slips under the mounting clip to prevent it from being pushed off of the track.
6 / 26 / 2014
