Aerohive AP230 - Dropped Ceiling Trach Mount

Dropped Ceiling Track Mount
AP230
Page 9 of 18
You can mount the AP230 in either a square or di ag ona l p o s i ti on on a s t anda rd 15 / 16" -wide track (2.38 cm) in a dropped ceiling. A diagonal
mount requires the diagonal moun t bracket that ships with the device. This section describes how to do both install a tions.
Square Dropped Ceiling Track Mount

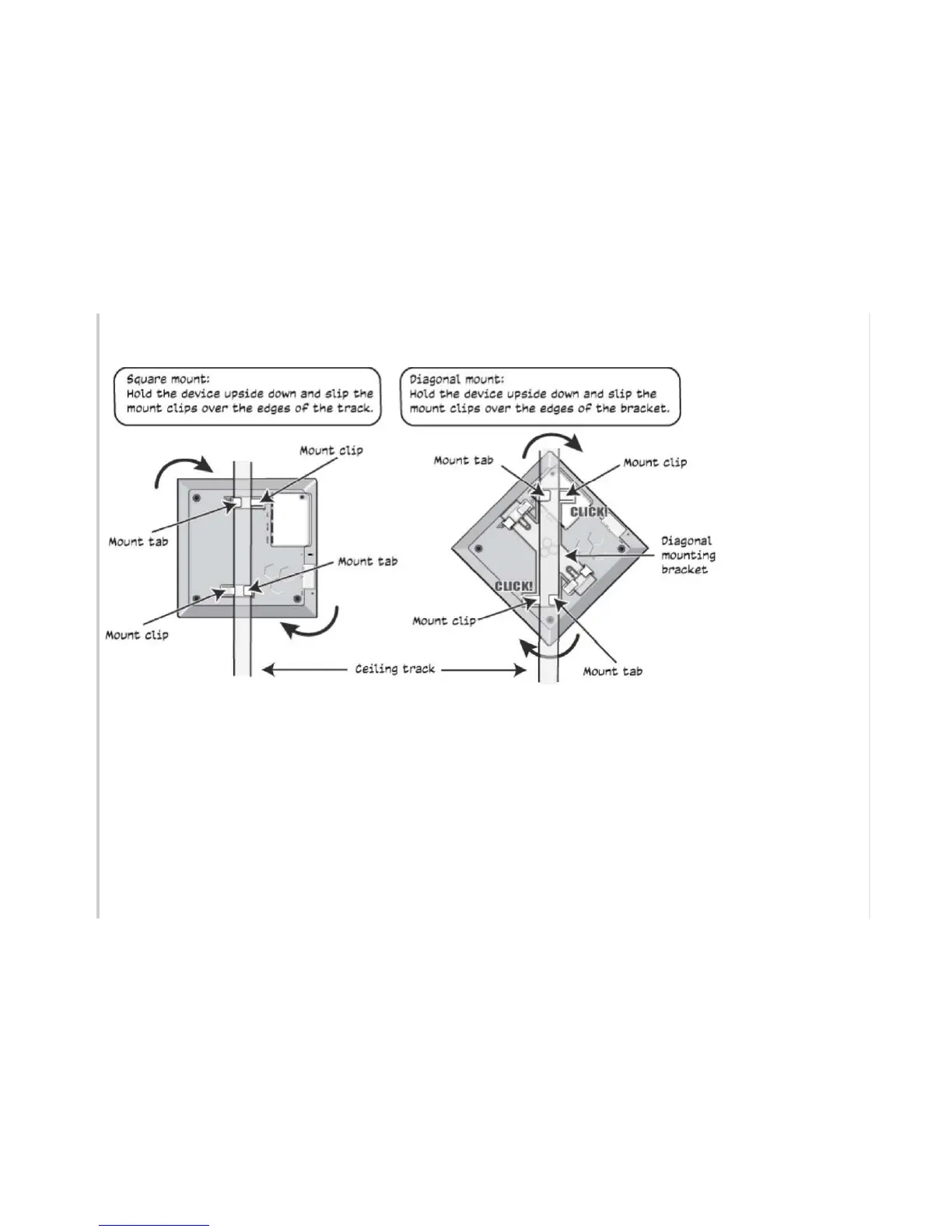

S l ip the mount tabs over the edges of t he ceiling track as shown in the illustration, then rotate the device slightly until the mount clip
s
click into place over the t r ack edges.
6 / 26 / 2014
