7.5 Landing gear system
The main wheels of the model Club S are mounted on spring legs, which are attached
to the left and to the right outside of the wing central panel. The nose wheel leg is
attached at the fire wall. The nose wheel is sprung by help of rubber components and
is controlled with the rudder pedals. The main wheels on both legs are equipped with
hydraulic disc brakes and spats.

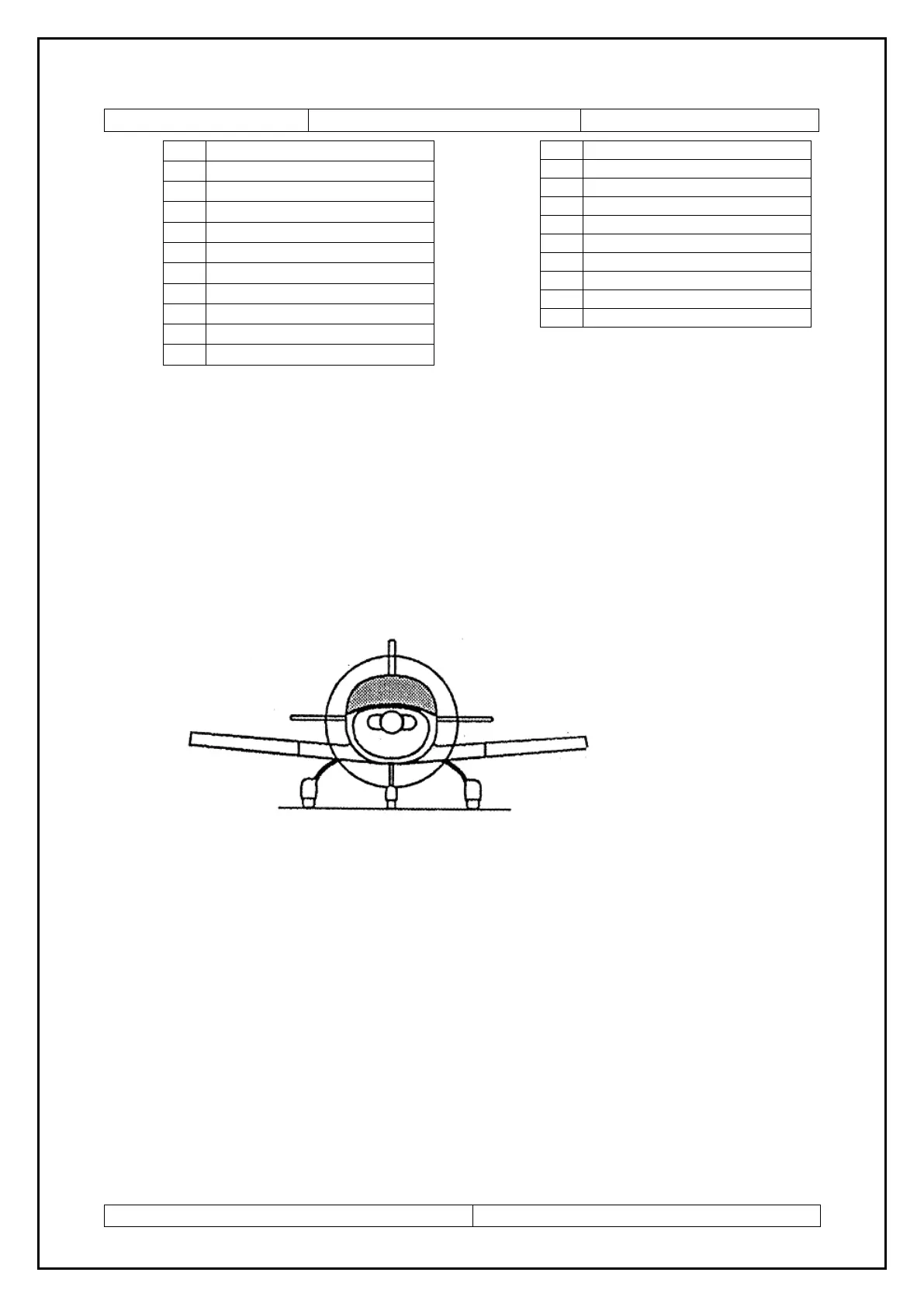

Fig.. Fixed undercarriage
1. 2 ATurn Coordinator
2. 3 A Artificial Horizon
3. 10 A Radio
4. 10 A Radio
5. 3 A Transponder
6. 2 A Fuel Pump
7. 5 A Strobe Lights
8. 5 A Navigation Lights
9. 1 A Solo Instruments
10. 1 A Speed Swich
11. 5 A GPS
12. 3 A D – 180
13. 8 A Flaps control
14. 10 A DVR, Camera
15. 2 A TRIM
16. 1 A Fuel Indicator L
17. 1 A Fuel Indicator R
18. 1 A GMA 240
19. 10 A Socket 12V
20. 15 A Smoke generator
21. 10 A Landing Lights
