7.6 Seats and safety harness
The plane has two side-by-side seats which are fixed, unadjustable. The back support
of the seats is glued into the fuselage construction as the frame. The safety belts – 4
point static harness restraint system is attached to the left and right seat side panel
and to the strut behind the back support of the seats.
7.7 Baggage compartment
The baggage compartment is situated behind the seats. Maximum baggage weight is
stated on a placard near the compartment. Hard objects may not be carried in the
baggage compartment without a suitably designed lashing or anchorage.
7.8 Doors, windows and exits
The cockpit canopy consists of one part. The Perspex canopy is glued on the
composite frame. The canopy is attached to the nose section of the fuselage by pins
which make it possible for the canopy to be tilted forward. For easier manipulation,
the weight of the canopy is counterbalanced by two gas struts which allow it to open
effortlessly. On the lower frame there are handles outside the canopy. The canopy is
equipped with a lock on the upper rear section of the frame ( see Fig.12 ).

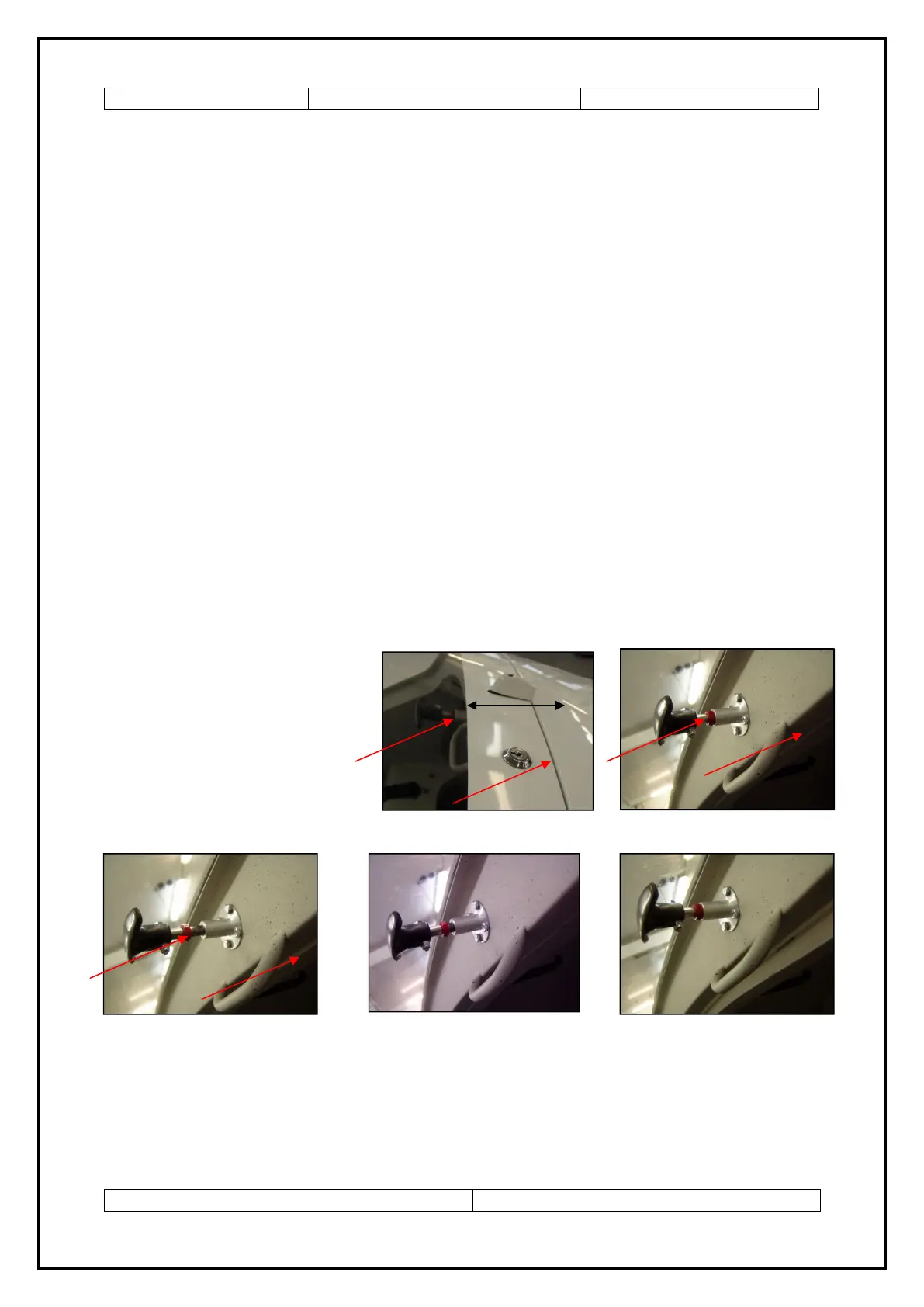

Cockpit canopy latched (2) but Cockpit canopy latched but Cockpit canopy unlatched and
unlocked (1) – WRONG ! partially locked- WRONG! apparently locked - WRONG!
Fig.12. Cockpit canopy latching and locking
