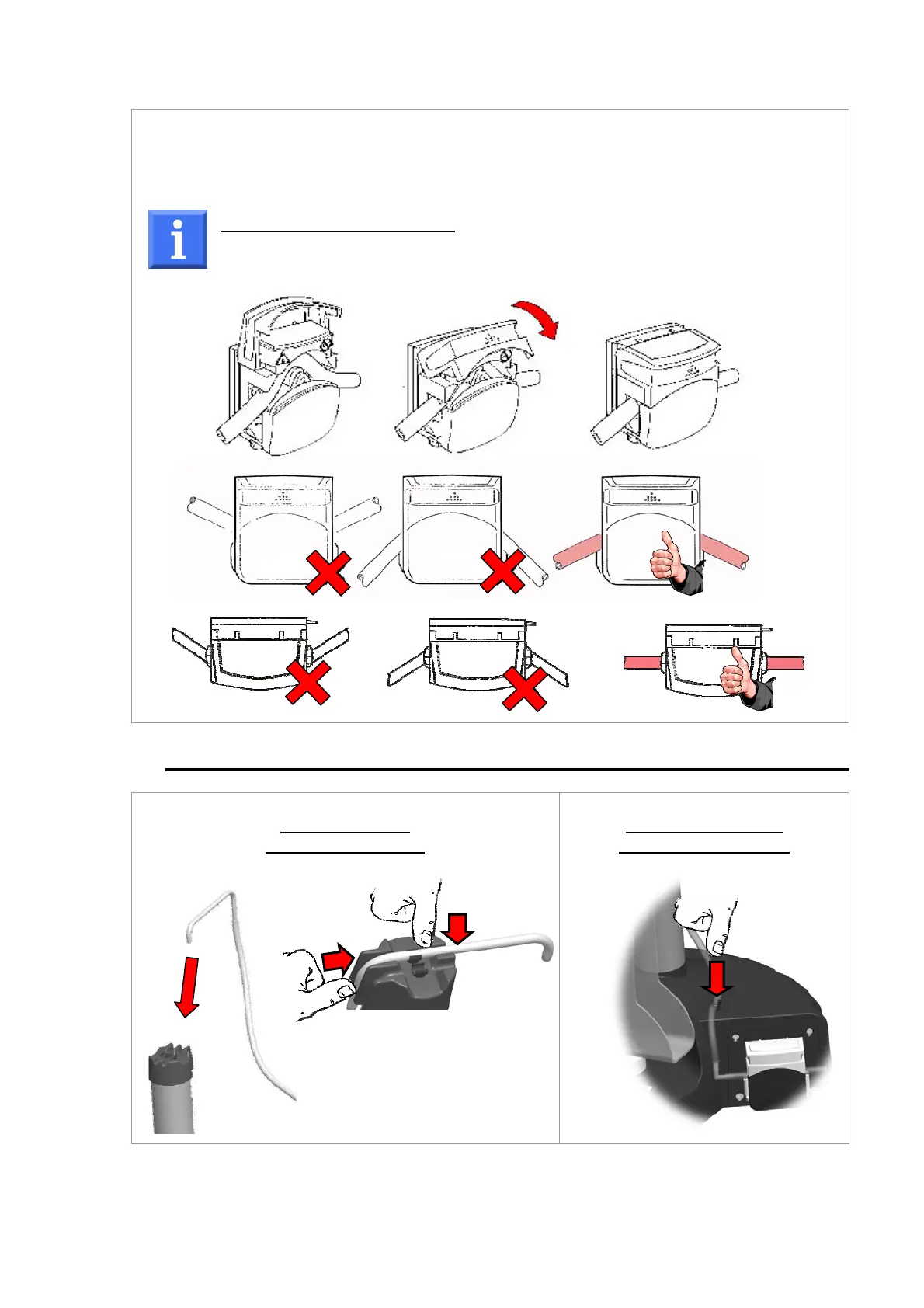

6. Insert the tube as shown below.
Next, close the pump cover and fasten the distribution nozzle to the end of the arm.
Stretch the tube to each side of the rotor, and avoid closing the cover onto the tube.
Direction of pump rotation:
The right pump on the Dilumat S® 4 turns counterclockwise.
The left pump (if included), turns clockwise.
7.2 Installing the distribution nozzle and tube
Positioning the
distribution nozzle
Inserting the tube
into the holding clip
