4848
in.therm
TM
installation

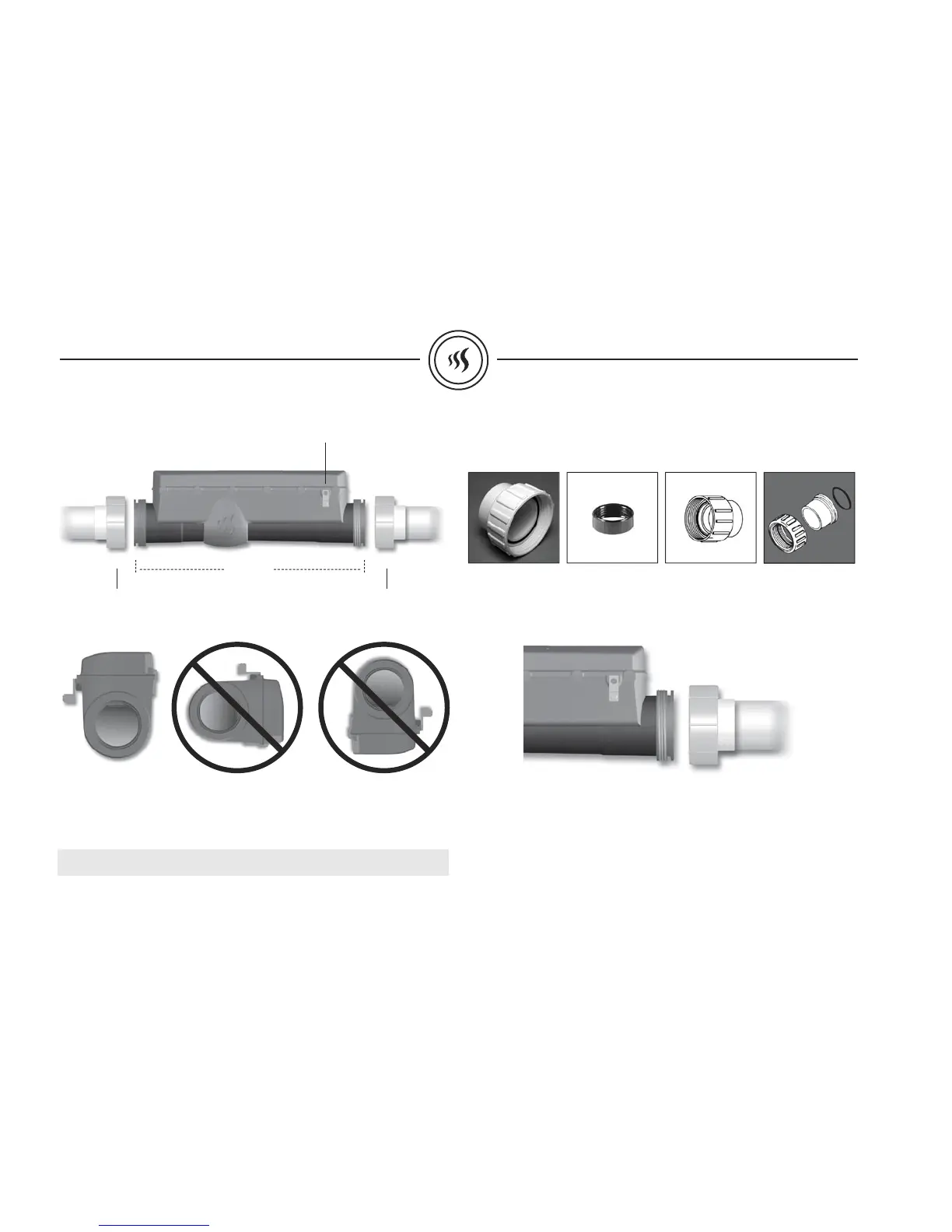

Install heater in the upright position as illustrated above.
Grounding lug
Plastic union nut Plastic union nut
Heater installation
368 mm
(14.5")
Slide the two 50 mm (2") plastic union nuts over the heater
threaded ends and tighten the nuts.
For an optimal connection to spa plumbing, please note that we
recommend the following 2” compression fi ttings & nuts.
Waterway
#400-5570
www.waterwayplastics.com
Aquatemp
# 86-02335
www.aquatemp.com
Aqua-Flo
# 52202000
www.aqua-fl o.com
Magic Plastics
#0602-20
www.magicplastics.com
Note: a minimum fl ow rate of 18 gpm is required.
