Aeware in.xm - Floor Installation Procedure

8
in.xm
TM

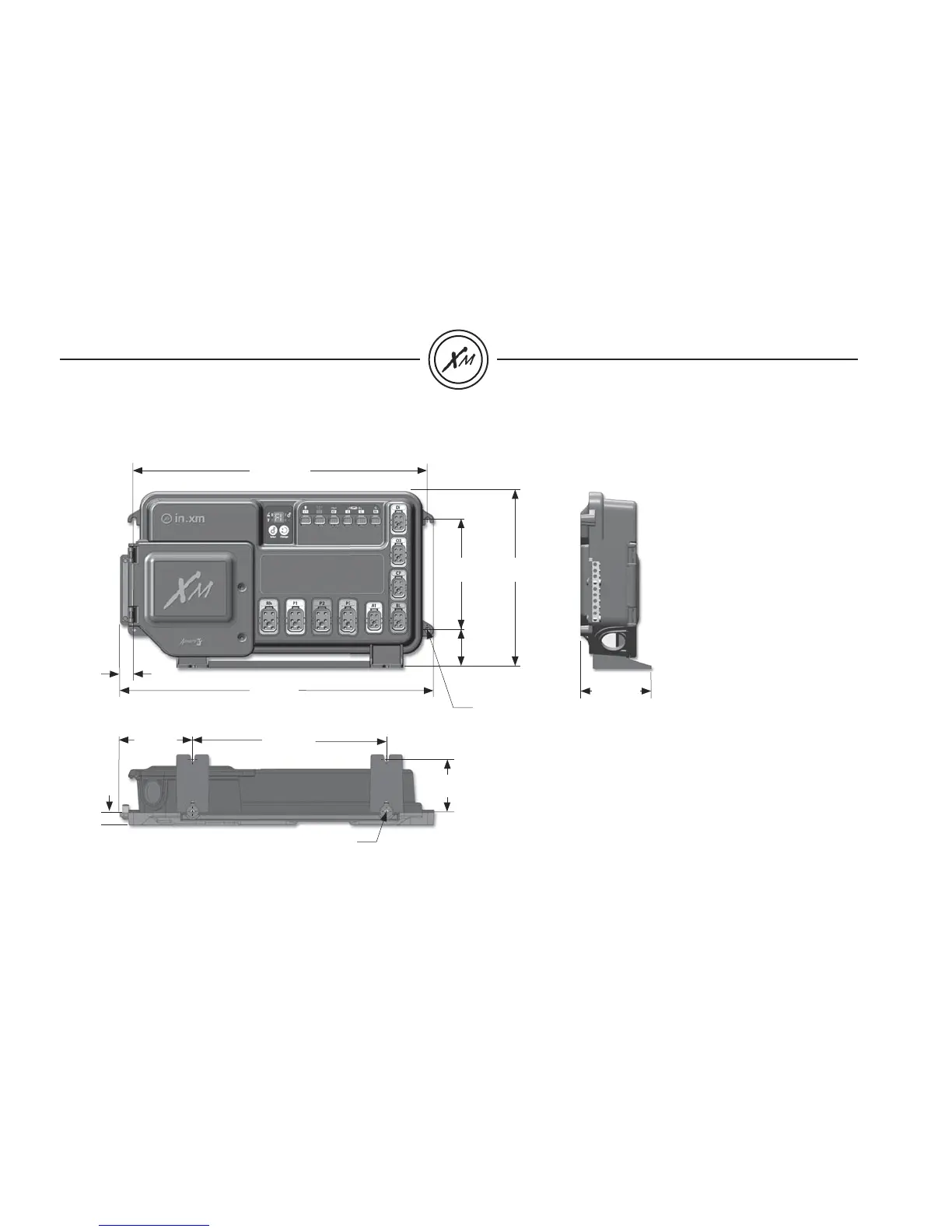

In.xm™ dimensions:
3,9"
(101 mm)
2.1"
(54 mm)
16.6"
(422 mm)
9.9"
(253 mm)
6.0"
(159 mm)
17.8"
(451 mm)
.79"
(21 mm)
Ø.25"
(6 mm)
Front View Side View
overview
11"
(279 mm)
4.110"
(104 mm)
.744"
(19 mm)
Ø.25"
(6 mm)
4x
2.948"
(75 mm)
Bottom View
