in.therm
TM
Connect the heater power cable to the in.link™ output connector
indicated Rh on the spa pack.
Connect the heater communication cable to the low voltage
connector indicated Rh on the spa pack.
Connect the bonding conductor to the bonding lug on the face of
the in.therm™.
Heater
communication cable
Heater
power cable

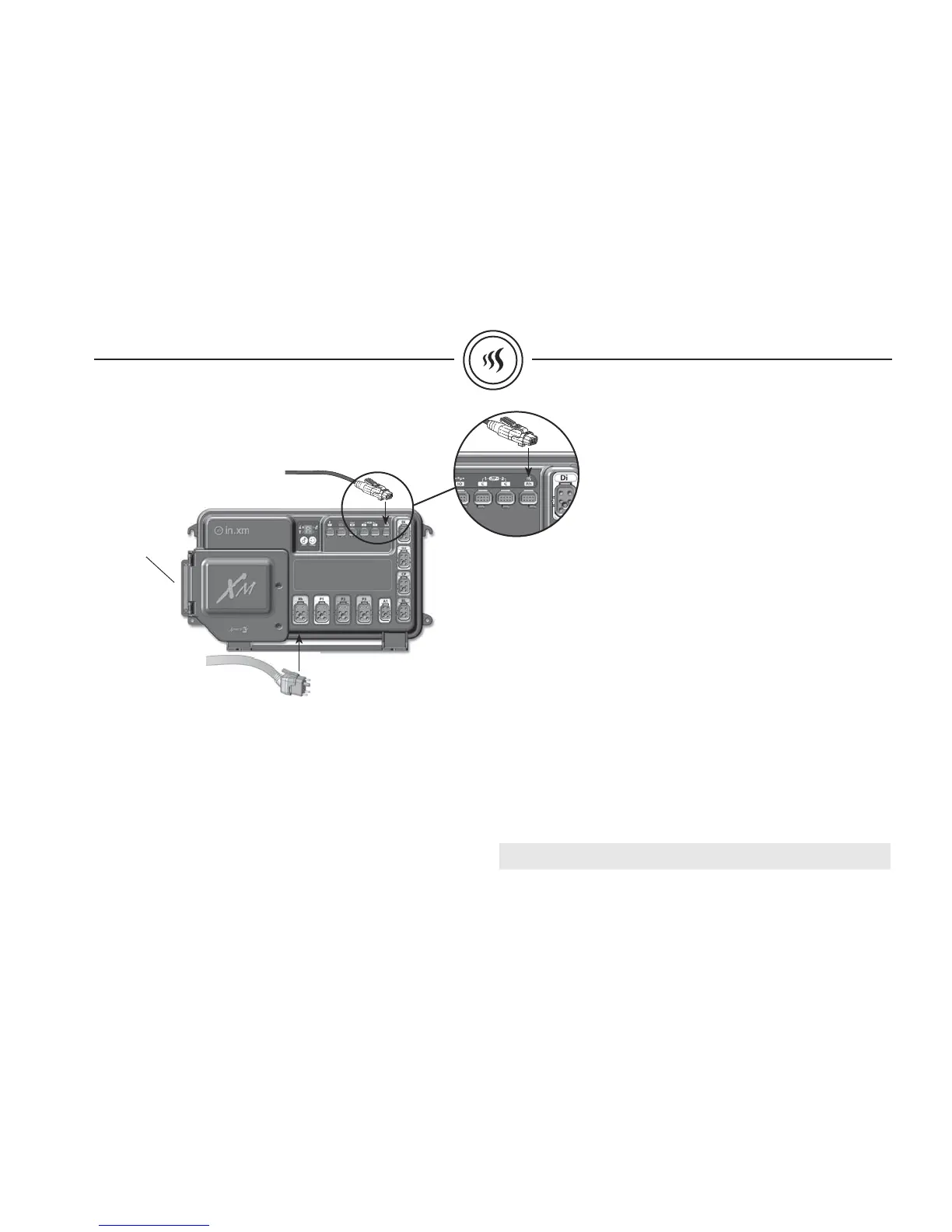

Connecting in.therm™ to in.xm™
connections
Bonding lug
Important! CE and UL/CSA parts are not interchangeable!
