7
in.xm
TM
Fuses
Power box display and buttons
Main power
entry connection
Main power
cable input entry
Mounting feet
Installation brackets
Output connectors for
in.therm™ remote heating system
(240 vac)
2 output connectors for pumps
(rated for dual speed pumps up
to 20 amp at 240 vac only)
Pump output connector
(for 15 amp single speed pump)
(120/240 vac)
Door to access
power input
connectors and
fuses
Light or CoolRays connector
General I/O connector
(EXM-5™ or IR receiver*)
in.keys™ main and
aux. keypad connectors
Accessory connector
(in.pocket™, in.terface™,
SpaWatch™, etc.)
Connector for direct
120/240 vac 5 Amp output
(for in.play™ audio or video
accessories)
4 connectors for outputs
controlled by 4 independent
relays (for oz, cp, light, fi ber
box, blower and any other
accessories) (120/240 vac
5 Amp)
* IR receiver available on every LV connection except LI and RH

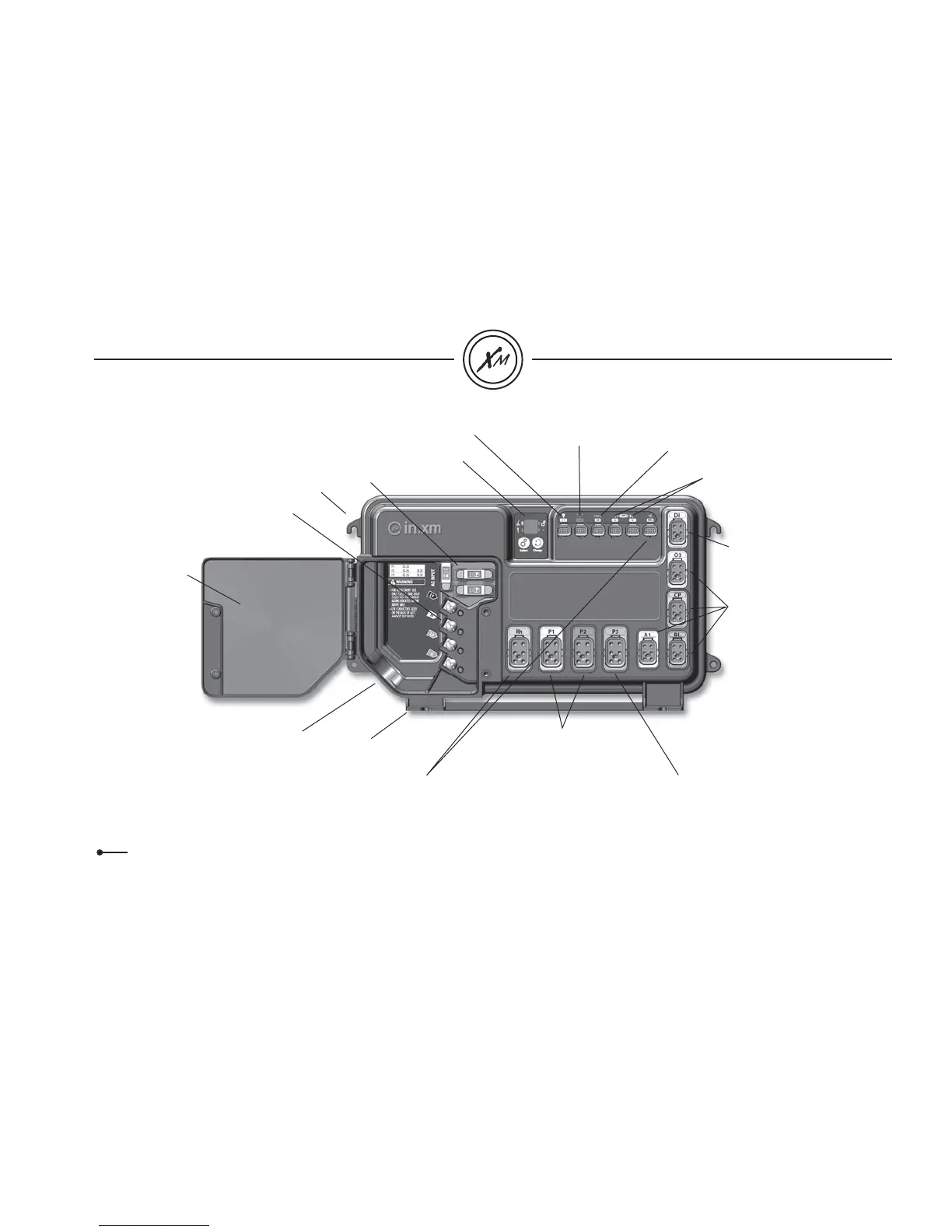

In.xm™ overview
overview
Attention: output connector confi guration
is not the same in European models.
