2.2 Mounting the rear wheels
The rear wheels (e - in figure 1) are to be assembled onto the frame (a
- in figure 1).
(See figure 2) The rear wheel (1) is assembled by means of a so called
quick release axle (2) into the wheel mount (3) of the frame (4).
In order to be able to assemble and disassemble the quick release axle
you need to press the button underneath the rubber cover (5) in the
centre of the wheel.
Take the rear wheel in your hand as shown in figure 2. Grip the wheel
(1) with your fingers through the spokes and depress the button under
the rubber cover (5) at the centre of the wheel with your thumb.
Lift the frame (4) using your other hand and fully insert the quick release
axle (2) into the Wheel mount (3) of the frame, release the button.
Check if the quick release axle is locked by pulling on the wheel.
Mount the other wheel the same way.

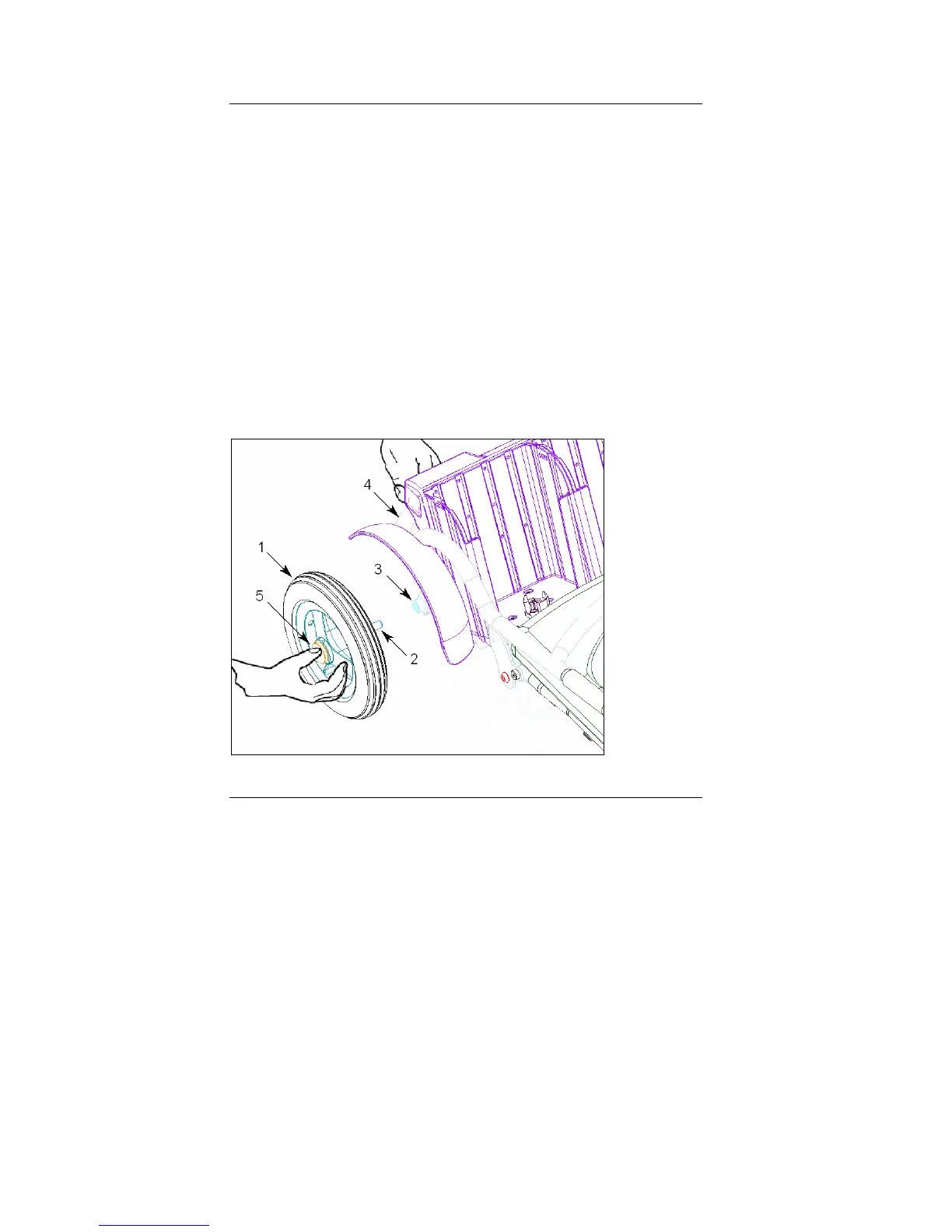

Figure 2
