4.2 Removing the tiller from the frame
Removing the tiller from the frame is done opposite order then explained
in §2.3 .

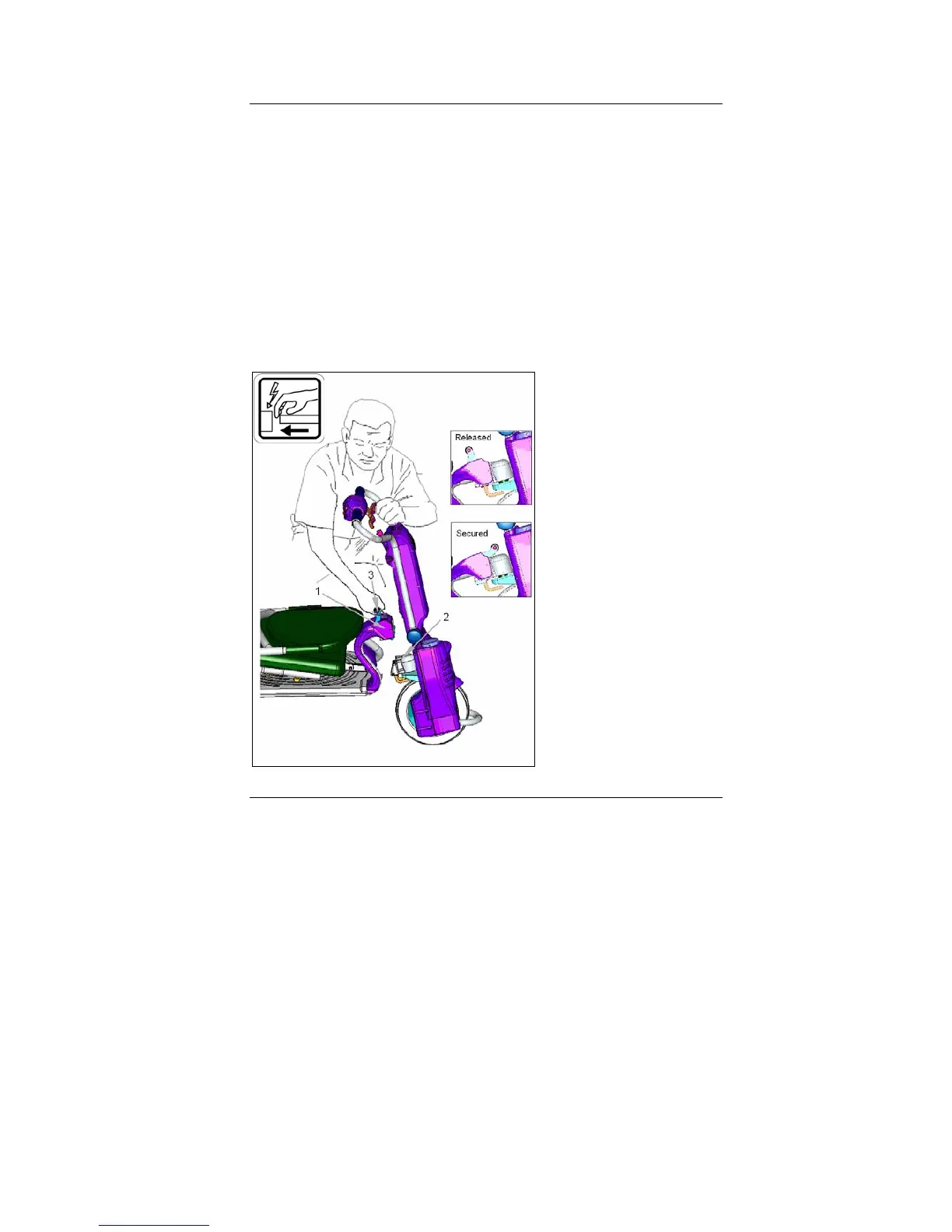

As shown in figure 15 . Pull the lock lever upward and backward to
release position . Now pull with the lever the frame bushing (1) upward
to separate it from the tiller tapered block . The electrical disconnection
is being done at the same action .
ATTENTION:
Danger of pinching your hand or fingers: the area between the tiller
frame and the main frame is indicated as a potential pinch area. Be
careful, the tiller frame wants to rotate to the left because of the weight
of the motor, pinching your hand.
