OPERATOR’S MANUAL
6
SFA-32
INSTALLATION

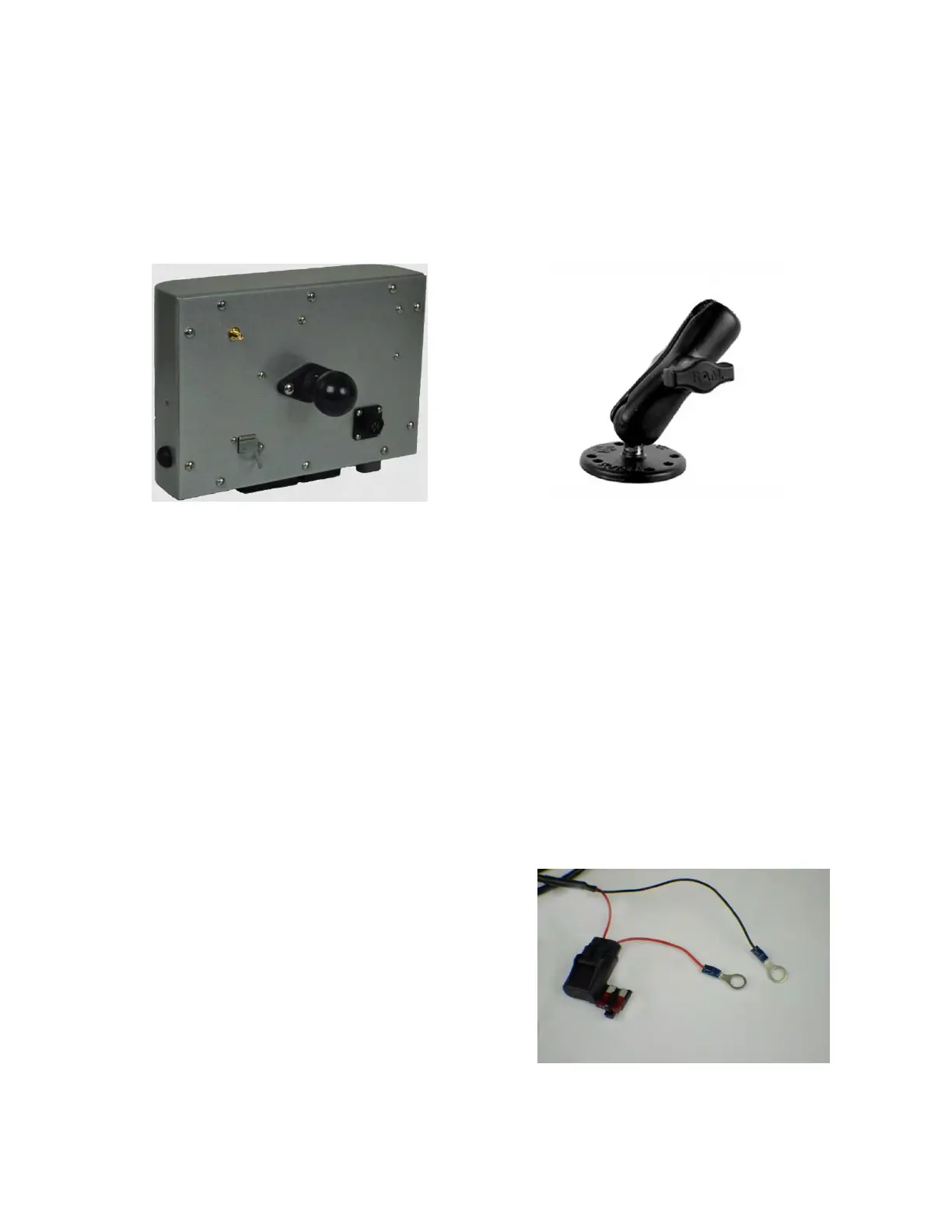

Your SFA-32 comes with a RAM 1 ½” Mounting Ball. Any RAM Mount 1 ½”
fixtures will adapt to your monitor.
The SFA-32 comes with a round base
mount and a 3 ½” arm for easy
installation.
Install the RAM-238-U 1 ½” Ball supplied with your console by removing the two
screws from the rear of the unit and use them to attach the ball.
Any RAM configuration may be used to attach your console to a convenient
location in your cab.
MONITOR AND POWER CONNECTIONS (Harness AE6697)
Route the power leads of the main harness to the battery. Allow some slack to
tie the harness off to a secure location in the cab to provide strain relief and for
the protection of the harness.
The monitor operates on 12 VDC only. The
red (Fused) lead should be connected to the
positive battery terminal and the black lead
should be connected to the negative
battery terminal.
