5.3 CONVEYOR BELT ALIGNMENT AND ADJUSTMENT

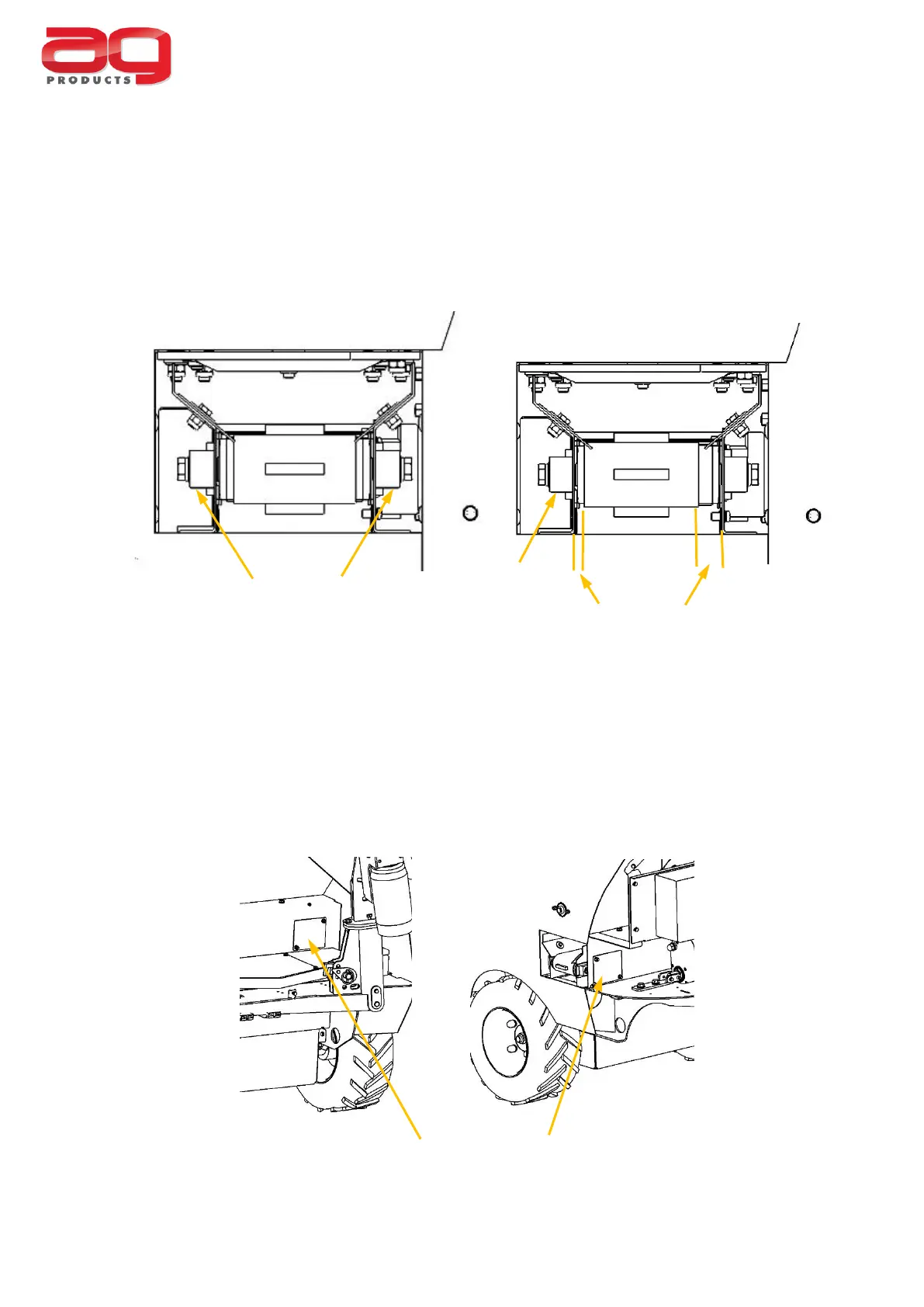

The conveyor belt must run centrally on the conveyor end rollers. If the conveyor belt is off-
centre, it may cause unnecessary drag, slow the belt down and compromise performance.
The running position of the conveyor belt is adjusted by slightly increasing the tension of the
side of the belt that is running too close to the conveyor side. In the case shown above, it is
the tension on the left side that should be increased.
Access for tensioning is via panels on each side of the conveyor tunnel. The front or rear
moulded black covers will have to be removed as necessary.
