AGA R7 - Power Supply Connections

24
AGA R7 100
A
B
C
D
E
F
G
H
J
J
K
L
M

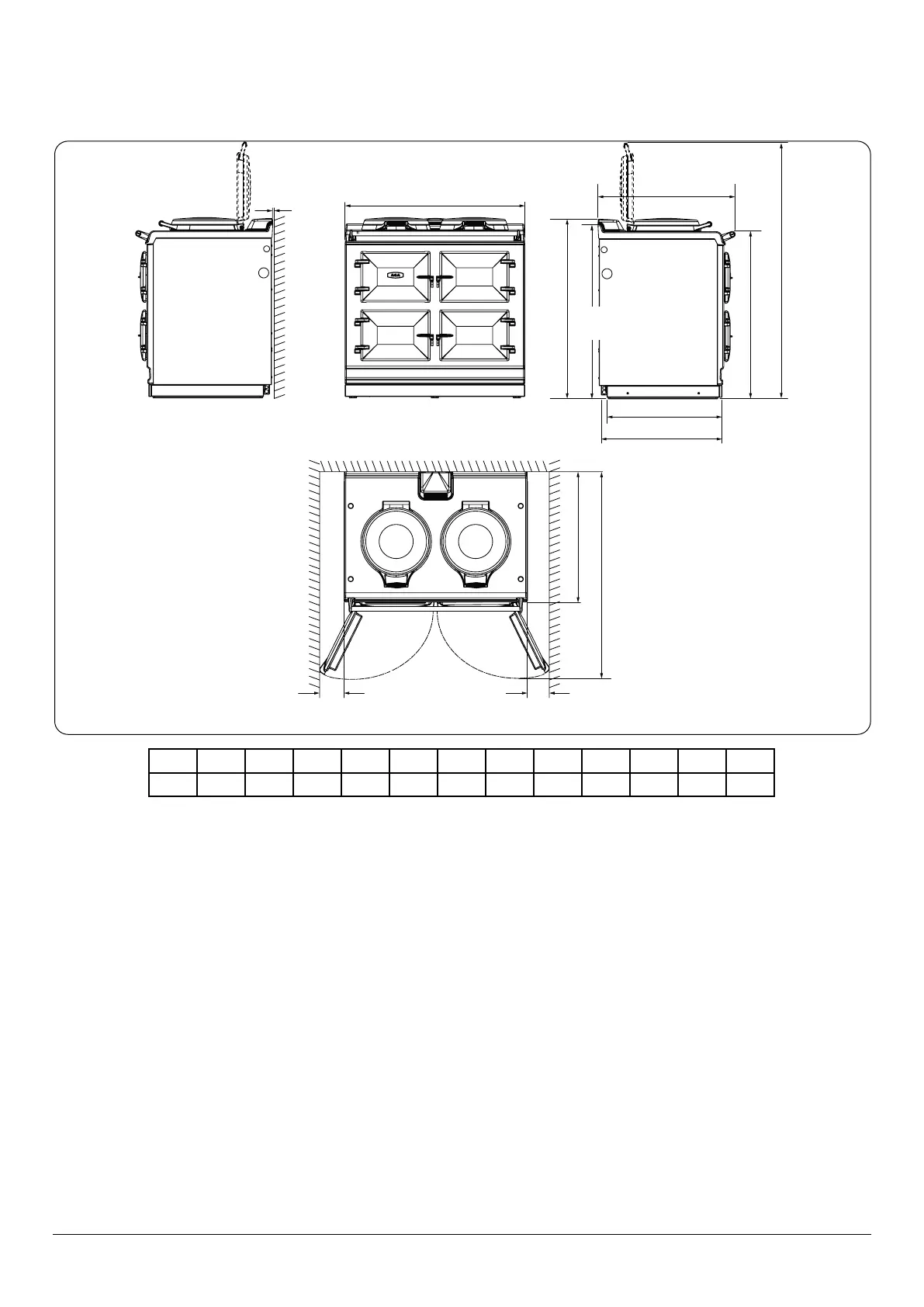

Fig. 14.1
DESN 517938
Cooker Dimensions
When surveying for a cooker installation the actual clearance
required for the ‘body’ of the appliance should be increased
by ⁄” (10mm) beyond the gures quoted above. This allows
safe margin to take into account the natural dimensional
variations found in major castings. In particular the width
across the appliance recess could be critical.
APPLIANCE WEIGHT (Excludes Packaging)
Model: AGA R7 - 979 lb
A B C D E F G H J K L M
mm 58 ⁄” 37 ⁄” 35 ⁄” 26 ¾” 54 ⁄” 29 ⁄” 45 ⁄” 27 ⁄” 4 ⁄” ⁄” 38 ¾” 24 ¾”
REAR OVEN VENT
PIPE POSITION
REAR OVEN VENT
PIPE POSITION
LEFT-HAND
OVEN VENT
OPTION
RIGHT-HAND
OVEN VENT
OPTION
LEFT-HAND SIDE VIEW
RIGHT-HAND SIDE VIEW
FRONT VIEW
PLAN VIEW
MINIMUM WALL POSITIONMINIMUM WALL POSITION
