10. Next the handrail, endcaps and handrail require assembly. Slide the handrail through the handrail brackets.
DESN 516879
11. On 5 oven appliances, t allthread stud into the insert located in the one end of the handrail, then feed the handrail
through the bracket (ensuring that the allthread stud is protruding from the right hand side of the hotcupboard handrail)
and screw the handrails together. (Fig. 17.12).

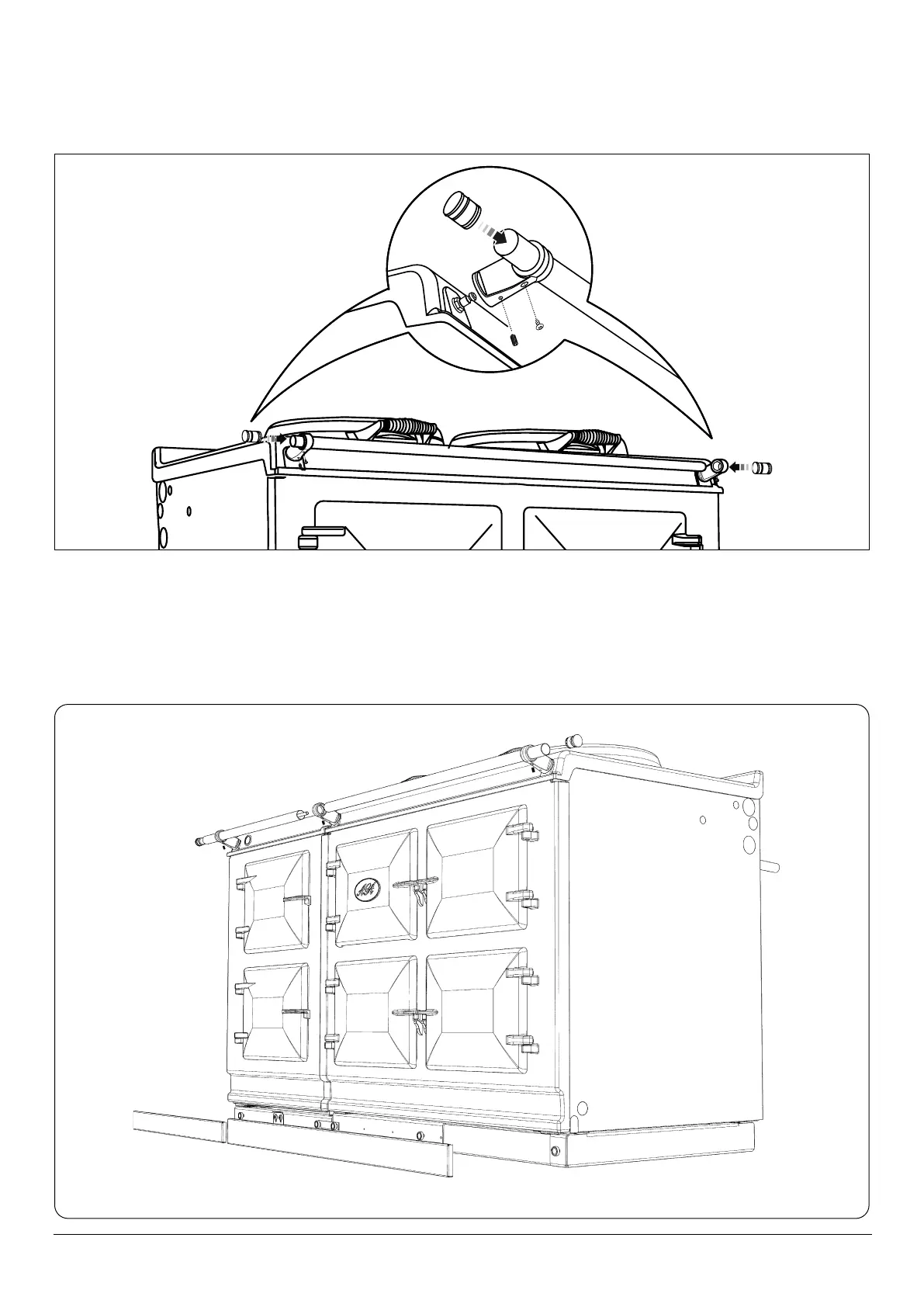

AGA R7 150 HANDRAIL CONNECTION
AGA R7 100 HANDRAIL CONNECTION
Fig. 17.11
Fig. 17.12
